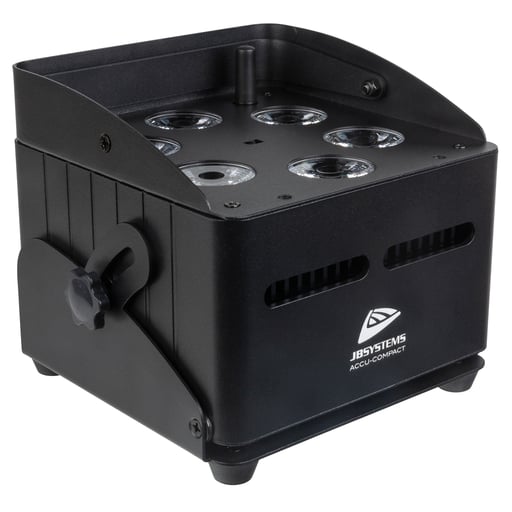

- Battery operated LED-projector, based on 6pcs 10Watt RGBWA-LEDs to avoid unwanted color shadows.
- Beam angle = 25°
- Projection angle can be adjusted over 25° (vertical to horizontal).
- The perfect solution for many applications: parties, special events, mobile DJ’s, ...
- +/-4hrs use in fading mode on a fully charged battery or +/-10hrs in ECONOMY MODE (reduced light output).
- Each projector is equipped with a wireless transceiver module (transmitter and receiver) which is 100% compatible with the W-DMX G4-protocol from “Wireless Solution Sweden”.
- Projector can still be used with empty battery: just connect it to the mains, using the battery charger!
- Very smooth RGBWA color changes.
- The battery charger charges the battery while the projector is working on mains power.
- The projector comes with a frost filter for a larger (40°) beam angle.
- Different working modes:
- Standalone: custom colors selectable or automatic and beat synchronized color changes
- Master/slave mode: wonderful preprogrammed, music synchronized lightshows
- DMX-controlled : wireless. (5 modes : Ledc-4-5-9-10 channels)
- Controlled by wireless IR remote control
Technical Specifications
Technical Specifications

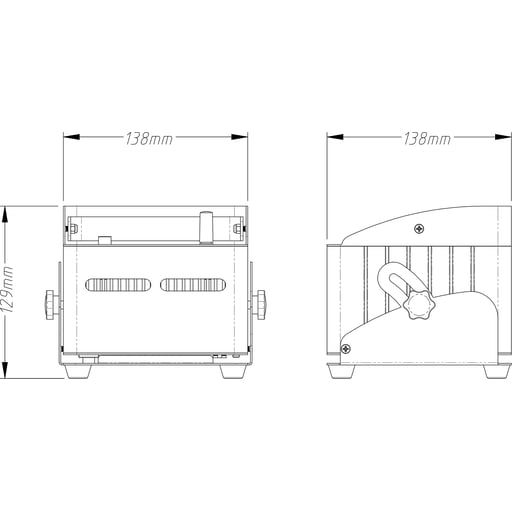

| General : Dimensions (cm) | 16.5 x 13.8 x 12.9 |
|---|---|
| General : Weight (kg) | 2 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Works on battery | yes |
| General : Energy Label | No |
| General : Power consumption W | 60 |
| General : Color | black |
| General : Display | LCD |
| General : IP rating | indoor |
| Control : Modes | standalone fixed, standalone sound, standalone automatic, remote, manual, DMX, Master/Slave |
| Control : Protocol | Wireless DMX |
| Control : Type included remote | IR-3 Remote control |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : maximum DMX channels | 10 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | Amber, RGBWA |
| Light : mix colors | Yes |
| Light : functions | manual frost |
| Light : min. beam angle (°) | 25 |
| Light : max. beam angle (°) | 40 |
| Light : max. refresh rate (kHz) | 1.5 |
| Connections : input | wireless DMX |
| Connections : output | wireless DMX |
| Brand | JB SYSTEMS |
| EANCode | 5420025651486 |
