Old

Discontinued product

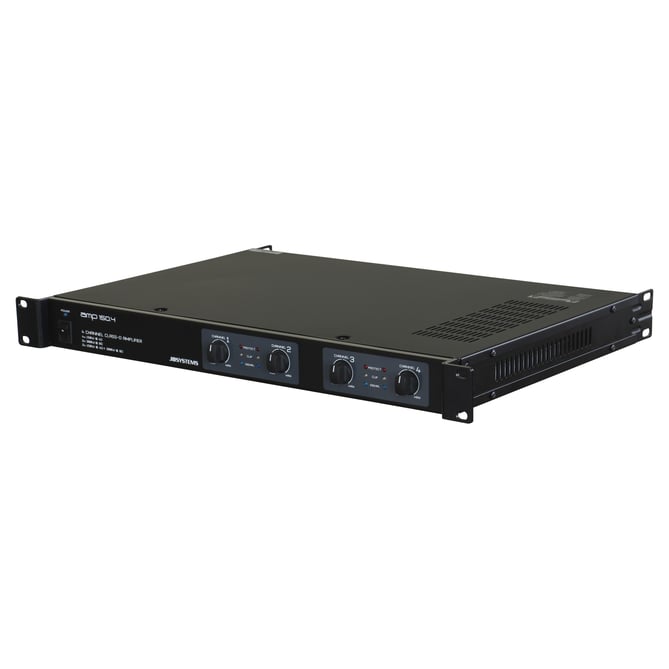

AMP 150.4

4-channel Amplifier, 4x 150Wrms @ 4ohm
SKU: B00273
EANCODE: 5420025602730

Details

Details

  • Professional 4-channel power amplifier in an extremely compact 19" 1U-housing (H: 44mm)
  • The high efficient class-D design guarantees high power and very low heat dissipation.
  • Perfect for install applications (pubs, shops, hotels, restaurants, … )

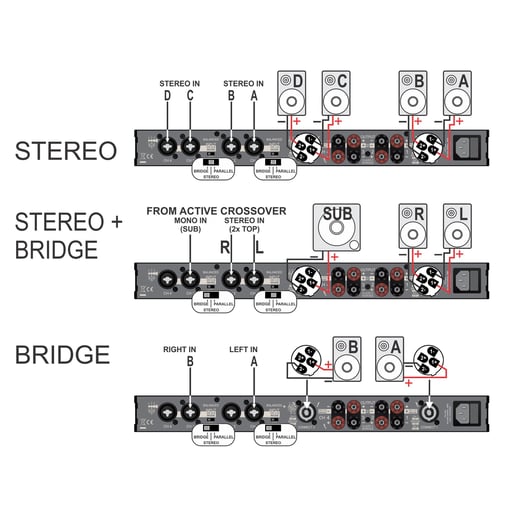

  • The unit houses 2 separate class-D amplifiers that can be configured independently to obtain the following combinations:
    • Both amps in stereo mode: 4x 150Wrms @ 4Ω  (4x 80Wrms @ 8Ω)
    • Both amps in Bridge mode: 2x 300Wrms @ 8Ω
    • 1amp in stereo + one amp in bridge: 2x 150Wrms @ 4Ω + 1x 300Wrms @ 8Ω
  • Completely silent operation: NO cooling fans!
  • Peak limiter prevents signal distortion
  • DC fault + high temperature + overload + short circuit protections

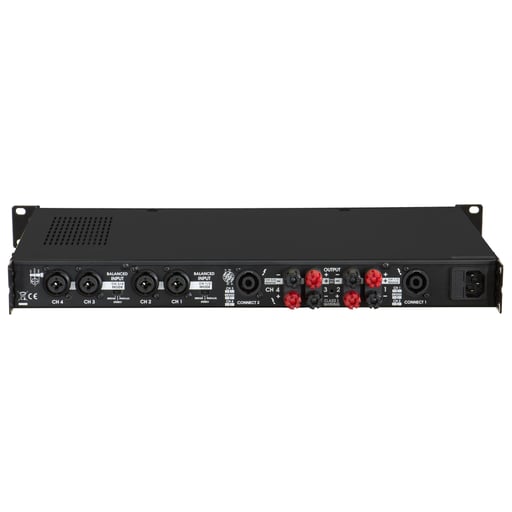

  • Balanced Combo (XLR + jack) inputs.
  • Speakon® + bind-post wire terminal outputs

Technical Specifications

Technical Specifications

General : Dimensions (cm) 48.3 x 4.4 x 33 cm
General : Weight (kg) 5.08
General : Color black
General : Powerinput AC 100 - 240V, 50/60Hz
General : Energy Label No
General : Display none
General : Fixation 19" rack mountable
General : RU 1U
General : IP rating indoor
Audio : frequency range 20 Hz - 20000 Hz
Audio : S/N ratio (> dB) 90
Audio : max. output channels 4
Audio : Wrms 4Ω stereo, per channel 150
Audio : Wrms 8Ω stereo, per channel 80
Audio : Wrms 8Ω bridge 300
Audio : functions adjustable crossover, bridge mode, limiter
Connections : input 3 pin XLR, jack, IEC
Connections : output speakon
Brand JB SYSTEMS
EANCode 5420025602730

Manual & Downloads

Manual & Downloads

View FileAMP 150.4 - Manual    Size: (2.14 MB) AMP 150.4 - Manual EN / FR / NL / DE / ES
View FileAMP 150.4 - EC Declaration    Size: (228.65 KB) AMP 150.4 - EC Declaration of Conformity
View FileAMP_150.4 PDF leaflet Deutsch    Size: (1.01 MB) PDF_LEAFLET_AMP_150.4_B00273_de.pdf
View FileAMP_150.4 PDF leaflet English    Size: (1.01 MB) PDF_LEAFLET_AMP_150.4_B00273_en.pdf
View FileAMP_150.4 PDF leaflet Français    Size: (1.01 MB) PDF_LEAFLET_AMP_150.4_B00273_fr.pdf
View FileAMP_150.4 PDF leaflet Nederlands    Size: (1.01 MB) PDF_LEAFLET_AMP_150.4_B00273_nl.pdf

Reviews & References

Customer Reviews (1)

notice d'emploi en francais / French manualReview by elwis
Je voudrais savoir si il existe une notice 'mode d'emploi' en francais pour l'ampli 150.4
Merci

Réponse JB Systems: Le manuel sur notre page produit contienne les 5 langues suivantes : anglais, français, néerlandais, espagnol, allemand.



[English translation]

I would like to know if there is a manual in french for the amplifier
Thank you

Answer JB Systems: The manual on our product page contains the following 5 languages: English, French, Dutch, Spanish, German.
(Posted on 7/4/2017)
