Details
Details

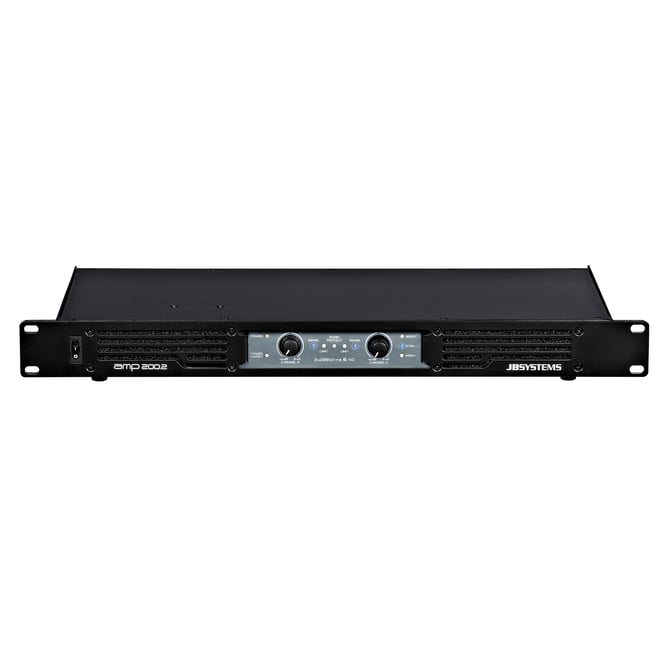

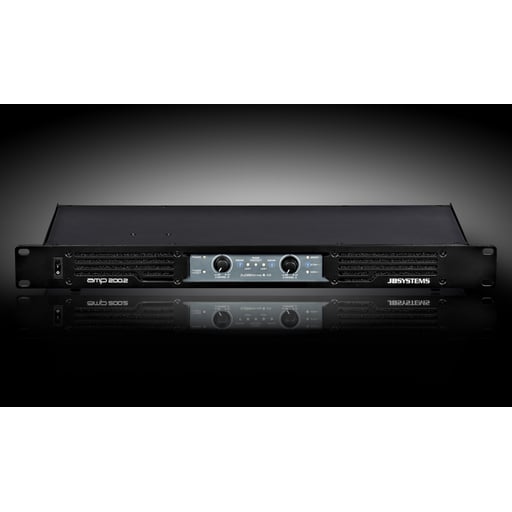

- Professional 2-channel power amplifier
- Extremely compact 19” housing, height only 1U (44mm)
- Lightweight design based on soft start switch mode power supply
- 3 amplifier modes: stereo, mono and bridge
- Power stereo:
- 2x 200Wrms @ 4Ω
- 2x 130Wrms @ 8Ω
- Power bridge:
- 1x 400Wrms @ 8Ω
- Very efficient cooling, using temperature controlled fans.
- Peak limiter prevents signal distortion
- Switchable 75Hz / -24dB low cut filter
- Adjustable input sensitivity: 0,775V ~ 1,0V ~ 1,44V
- Ground lift switch
- DC fault + high temperature + overload and short circuit protections

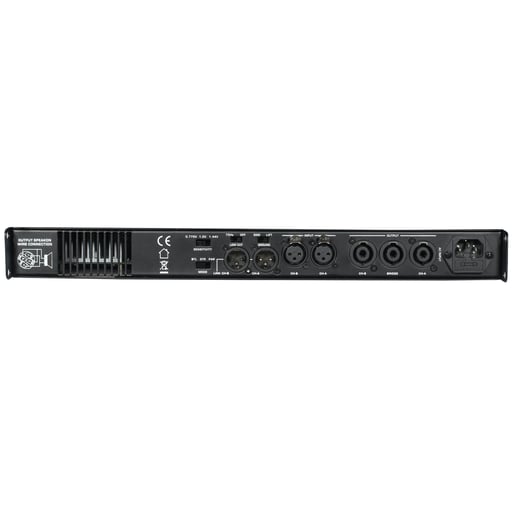

- Balanced XLR-inputs & jack-outputs: daisy chaining of several amplifiers
- 3 Speakon® outputs: left + right channels + bridge
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 48.3 x 23.5 x 4.4 cm |
|---|---|
| General : Weight (kg) | 4.19 |
| General : Color | black |
| General : Powerinput | AC 240V, 50Hz |
| General : Energy Label | No |
| General : Display | none |
| General : Fixation | 19" rack mountable |
| General : RU | 1U |
| General : IP rating | indoor |
| Audio : frequency range | 20 Hz - 20000 Hz |
| Audio : S/N ratio (> dB) | 100 |
| Audio : max. output channels | 2 |
| Audio : Wrms 4Ω stereo, per channel | 200 |
| Audio : Wrms 8Ω stereo, per channel | 130 |
| Audio : Wrms 8Ω bridge | 400 |
| Audio : functions | adjustable crossover, bridge mode, limiter |
| Connections : input | 3 pin XLR, IEC |
| Connections : output | 3 pin XLR, speakon |
| Brand | JB SYSTEMS |
| EANCode | 5420025602716 |
