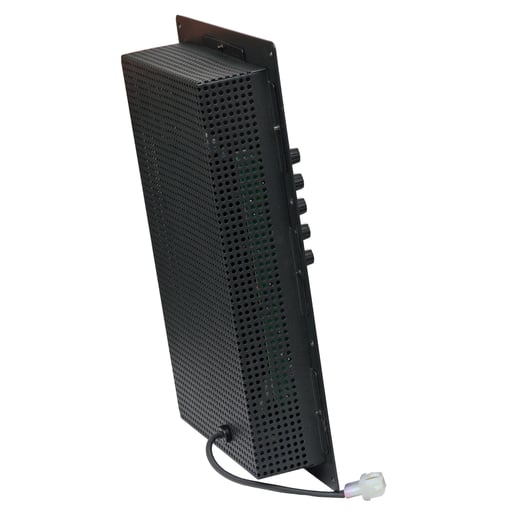

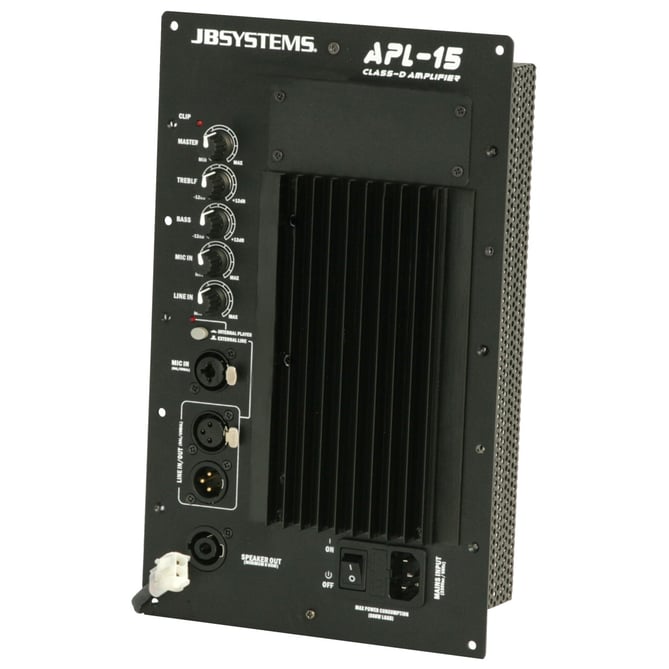

- Class-D amplifier module for installation inside PL-series plastic speakers

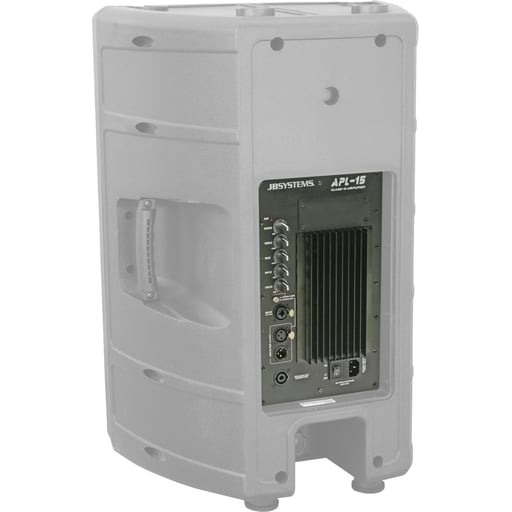

- Very easy installation inside JB Systems® passive PL-series (version 2009)
- High output power: 300Wrms @ 8ohm ~ 450Wrms @ 4ohm
- Treble/bass tone controls + master volume.
- Balanced / unbalanced microphone input (jack + XLR) with volume control
- Balanced / unbalanced line input/output (XLR) with volume control.
- Speakon output for optional passive 8ohm cabinet.
- IEC input mains connector with integrated switch.
- Can be equipped with an optional MPL-1 audio player (MP3/WMA-player)
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 31.5 x 19.2 x 7 cm |
|---|---|
| General : Weight (kg) | 2 |
| General : Color | black |
| General : Energy Label | No |
| General : Display | none |
| General : IP rating | indoor |
| Control : Protocol | N/A |
| Audio : min. frequency (Hz) | 20 |
| Audio : max. frequency (Hz) | 20000 |
| Audio : frequency range | ... Hz - ... Hz |
| Audio : S/N ratio (> dB) | 87 |
| Audio : Wrms 4Ω stereo, per channel | 450 |
| Audio : Wrms 8Ω stereo, per channel | 300 |
| Audio : functions | equalizer |
| Connections : input | 3 pin XLR, jack, IEC |
| Connections : output | N/A |
| Brand | JB SYSTEMS |
| EANCode | 5420025602044 |
