Details
Details
- Perfect all-in-one solution for install applications like: schools, pubs, shops, hotels, restaurants, …
- The internal USB-media player supports MP3, WMA and WAV files.
- RDS FM-radio with presets

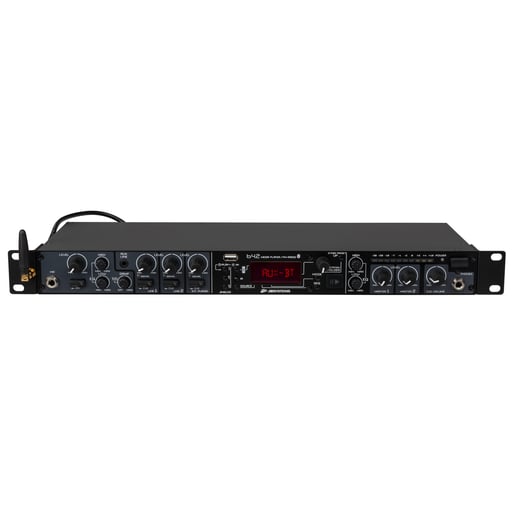

- Integrated Bluetooth® receiver

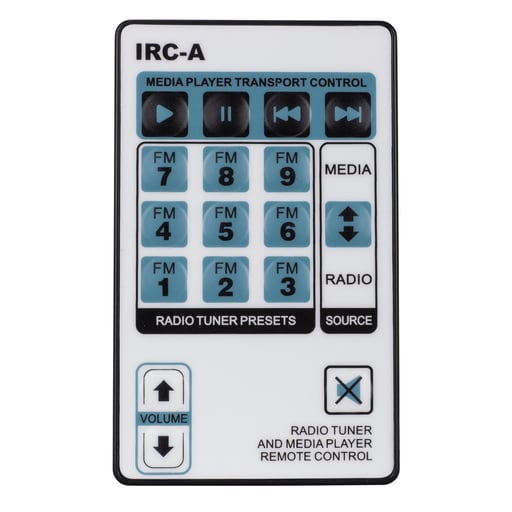

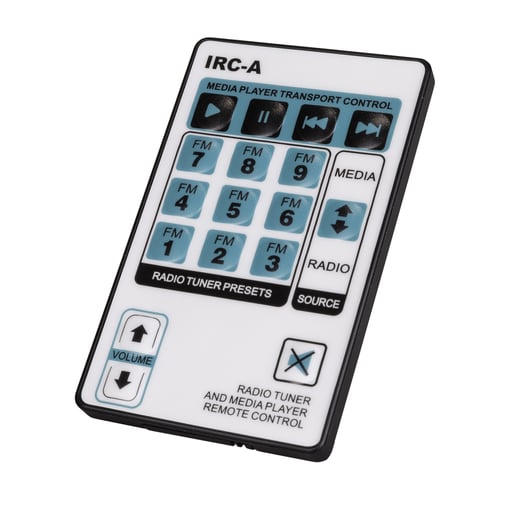

- IR Remote: controls media player, Radio presets, volume/mute.
- Playback of up to 3 different commercials (manual & scheduled playback) with automatic interruption of media player / tuner playback.
- Audio mixer mixes up to 4 sources:
- Internal media player / FM-radio + 2 external line inputs (one with 3,5mm jack for iPod, … )
- MIC input with high/low EQ and Talkover (adjustable damping/threshold)
- PFL monitoring with headphones output on front panel
- Record output via RCA/cinch
- 2 balanced zone outputs with separate volume and max. level trimmer to control different zones.
- Zone 2 has an additional mono switch and 100Hz high pass filter for use with small speakers.
- Emergency message input (Euroblock connector) with automatic audio mute.
- Euroblock input: muting of the masters. (closed contact = mute)
- Designed in Europe
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 48.3 x 4.4 x 16.2 |
|---|---|
| General : Weight (kg) | 2.63 |
| General : Powerinput | AC 230V, 50Hz |
| General : Energy Label | No |
| General : Color | black |
| General : Display | No |
| General : RU | 1U |
| Audio : supported audio media | USB |
| Audio : functions | equalizer |
| Connections : input | rca, jack, usb, bluetooth, IEC |
| Connections : output | rca, jack |
| Brand | JB SYSTEMS |
| EANCode | 5420025684002 |
Manual & Downloads
Manual & Downloads
 B4.2 MEDIAMIX - Manual EN Size: (1.53 MB) |
B4.2 MEDIAMIX - Manual English |
| B4.2 MEDIAMIX - Manual FR Size: (1.49 MB) |
B4.2 MEDIAMIX - Manual Français |
| B4.2 MEDIAMIX - Manual NL Size: (1.46 MB) |
B4.2 MEDIAMIX - Manual Nederlands |
| B4.2 MEDIAMIX - Manual DE Size: (1.51 MB) |
B4.2 MEDIAMIX - Manual Deutsch |
| B4.2 MEDIAMIX - Manual ES Size: (1.51 MB) |
B4.2 MEDIAMIX - Manual Español |
| B4.2 MEDIAMIX - EC Declaration Size: (446.25 KB) |
B4.2 MEDIAMIX - EC Declaration of Conformity |
| B4.2_MEDIAMIX PDF leaflet Deutsch Size: (1.16 MB) |
PDF_LEAFLET_B4.2_MEDIAMIX_B08400_de.pdf |
| B4.2_MEDIAMIX PDF leaflet English Size: (1.16 MB) |
PDF_LEAFLET_B4.2_MEDIAMIX_B08400_en.pdf |
| B4.2_MEDIAMIX PDF leaflet Français Size: (1.16 MB) |
PDF_LEAFLET_B4.2_MEDIAMIX_B08400_fr.pdf |
| B4.2_MEDIAMIX PDF leaflet Nederlands Size: (1.16 MB) |
PDF_LEAFLET_B4.2_MEDIAMIX_B08400_nl.pdf |
