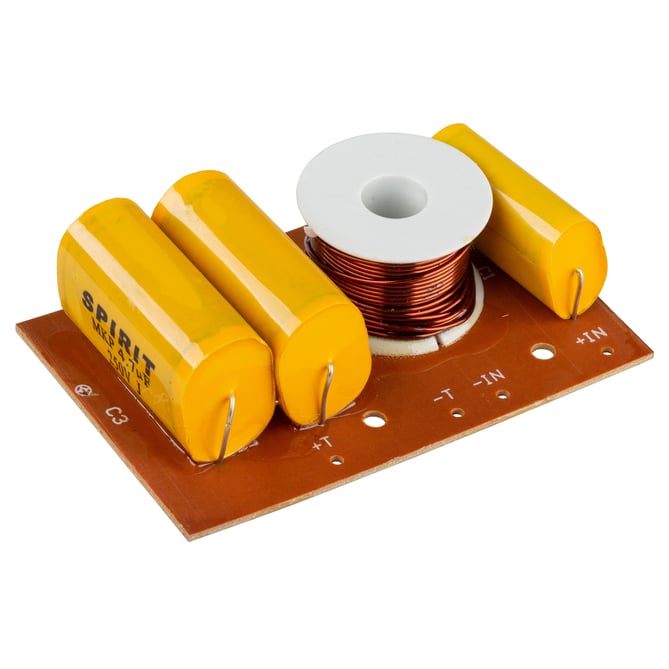

CN-6

High pass filter for 2-way systems ( X-over freq. : 4,5kHz, Slope : 18dB/oct, RMS power : 100W).
SKU: B00813
EANCODE: 5420025608138

Details

Details

  • High pass filter for 2-way systems
  • X-over freq. : 4,5kHz
  • Slope : 18dB/oct
  • RMS power : 100W

Technical Specifications

Technical Specifications

General : Weight (kg) 0.4
Audio : frequency range ... Hz - ... Hz
Brand JB SYSTEMS
EANCode 5420025608138

Manual & Downloads

Manual & Downloads

View FileCN-6 Manual    Size: (19.56 KB) CN-6 Manual

Reviews & References

Customer Reviews (1)

This is not a real crossover.Review by Fvelez
This is not a real crossover filter since the complete range of frequencies from the amplifier reaches the woofer drive.

[Reply JB Systems]

Technically this is a crossover although a better name might be hi-pass filter.

In this price-, size- and weight-range you will not find any crossover that filters both tweeter and woofer because a filter for the woofer requires a big and heavy copper coil.
It is indeed important for a tweeter to filter out the low frequences but much less for a woofer.
Unless you have a professional system you won't hear much difference from woofer that receives all frequencies.

Because of the size and weight of a crossover for the woofer, you will almost never find passive High-End Professional PA speaker systems with crossovers inside the speaker.
These last ones use external crossovers and processors before the signal goes out of the amplifier so they don't need those big and heavy coils.



(Posted on 8/7/2017)
