Details
Details

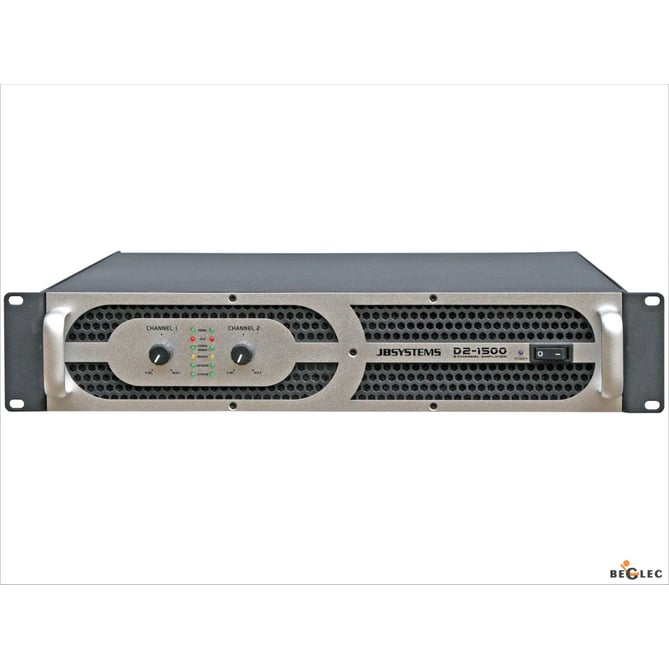

- Professional 2-channel amplifier with built-in active crossover.
- Very compact housing, only 2U (88mm) high
- Oversized power supply guarantees a powerful bass reproduction
- Built-in active crossovers: no need for separate crossover units to setup an active system.
- Each channel equipped with a 24dB/octave crossover: adjustable crossover point (90~250Hz) and 3 operation modes: HPF (high pass filter) + LPF (low pass filter) + OFF (no filter)
- Two amplifier modes: stereo and bridge
- Peak limiters can be switched on/off
- Soft start power supply
- Very efficient cooling
- DC fault protection
- High temperature protection
- Overload and short circuit protections
- Balanced XLR inputs
- XLR-outputs: daisy chaining of several amplifiers
- 3 Speakon® outputs: left + right channels + bridge
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 48.3 x 47.3 x 8.8 cm |
|---|---|
| General : Weight (kg) | 20.5 |
| General : Color | black |
| General : Powerinput | AC 240V, 50Hz |
| General : Energy Label | No |
| General : Display | none |
| General : Fixation | 19" rack mountable |
| General : RU | 2U |
| General : IP rating | indoor |
| Control : Protocol | N/A |
| Audio : min. frequency (Hz) | 20 |
| Audio : max. frequency (Hz) | 20000 |
| Audio : frequency range | 90 Hz - 250 Hz |
| Audio : S/N ratio (> dB) | 90 |
| Audio : damping factor (>...) | 600 |
| Audio : max. output channels | 2 |
| Audio : Wrms 4Ω stereo, per channel | 500 |
| Audio : Wrms 8Ω stereo, per channel | 75 |
| Audio : Wrms 4Ω bridge | N/A |
| Audio : Wrms 8Ω bridge | N/A |
| Audio : functions | N/A |
| Connections : output | N/A |
| Brand | JB SYSTEMS |
| EANCode | 5420025602020 |
Manual & Downloads
Manual & Downloads
 D2-1500 Manual Size: (1.38 MB) |
D2-1500 Manual |
| D2-1500 EC declaration Size: (568.69 KB) |
D2-1500 EC declaration |
| D2-1500 PDF leaflet Deutsch Size: (686.07 KB) |
PDF_LEAFLET_D2-1500_00202_de.pdf |
| D2-1500 PDF leaflet English Size: (685.27 KB) |
PDF_LEAFLET_D2-1500_00202_en.pdf |
| D2-1500 PDF leaflet Français Size: (687.32 KB) |
PDF_LEAFLET_D2-1500_00202_fr.pdf |
| D2-1500 PDF leaflet Nederlands Size: (685.32 KB) |
PDF_LEAFLET_D2-1500_00202_nl.pdf |
