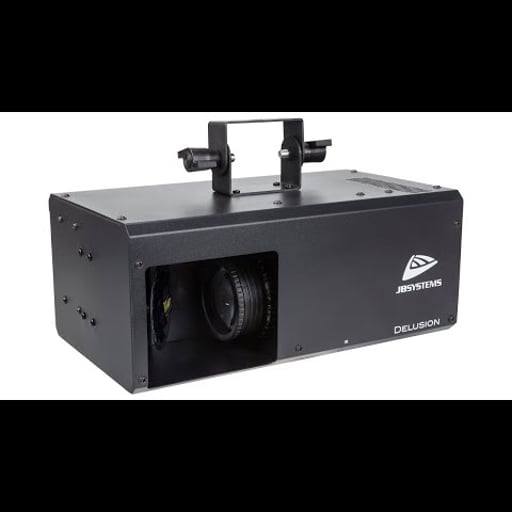

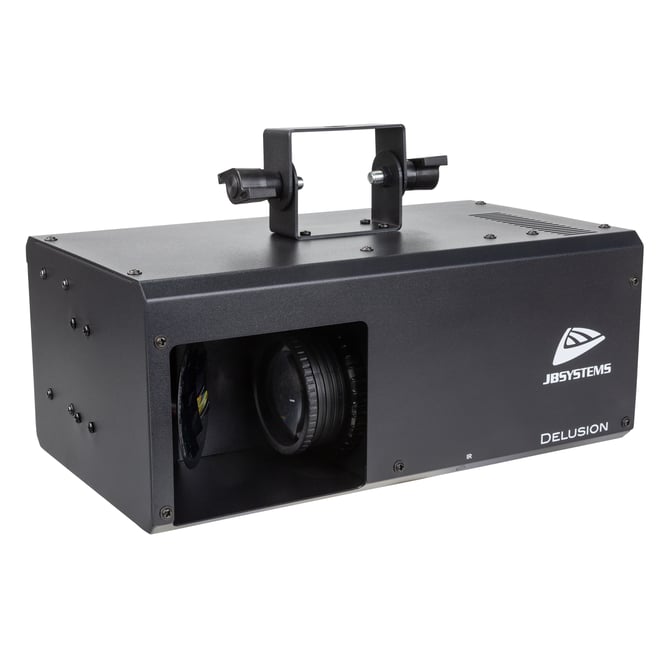

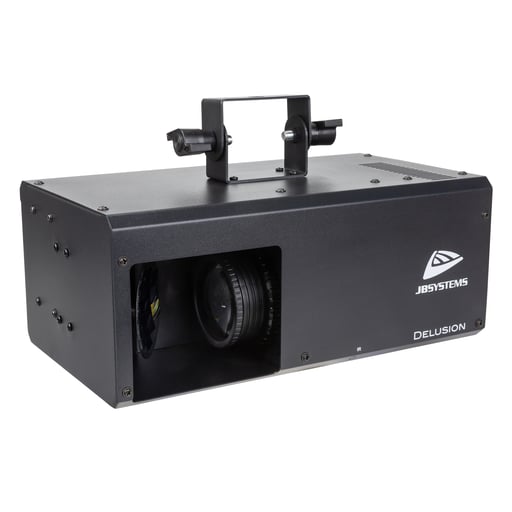

DELUSION

Multi-effect background wall projector, based on 100W LED
SKU: B05420
EANCODE: 5420025654203

Details

Details

  • The Delusion is designed to project multiple decorative and relaxing effect lights:
    • CLOUDS and SKY: projection of 2 different white/blue cloud patterns
    • WATER: projection of 2 different water patterns
    • INFERNO and FIRE: projection of 2 different fire patterns
    • HALLUCINATION: projection of various bizarre patterns with multiple colors
  • Perfect for wall projections in lounge bars, showrooms, indoor theme parks, ...
  • The wide 80° projection angle provides a large projection surface at a short distance
  • The 100W white LED ensures saturated colors and low power consumption
  • Equipped with 2 effect wheels, 1 color wheel with 6 dichroic colors and a parabolic mirror
  • Multiple operating modes:
    • DMX controlled via 3, 5 or 7 channels
    • Standalone mode
    • Controllable via optional IR remote

Technical Specifications

Technical Specifications

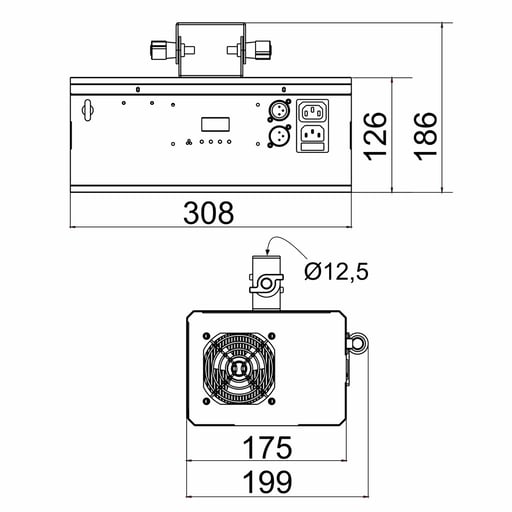

General : Dimensions (cm) 30.8 x 18.6 x 19.9
General : Weight (kg) 3.8
General : Powerinput AC 100 - 240V, 50/60Hz
General : Energy Label No
General : Power consumption W 122
General : Color black
General : Display LED
General : Fixation M12
General : IP rating indoor
Control : Modes standalone fixed, standalone sound, standalone automatic, remote, manual, DMX
Control : Protocol DMX

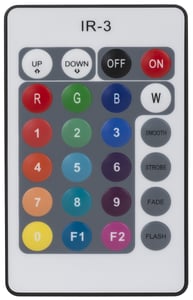

Control : optional remote IR-3 REMOTE
Control : programmable No
Control : upgradable software Yes
Control : minimum DMX channels 3
Control : maximum DMX channels 7
Light : lamp socket No
Light : lamp LED
Light : mix colors Yes
Light : functions manual focus
Light : max. beam angle (°) 80
Light : max. refresh rate (kHz) No

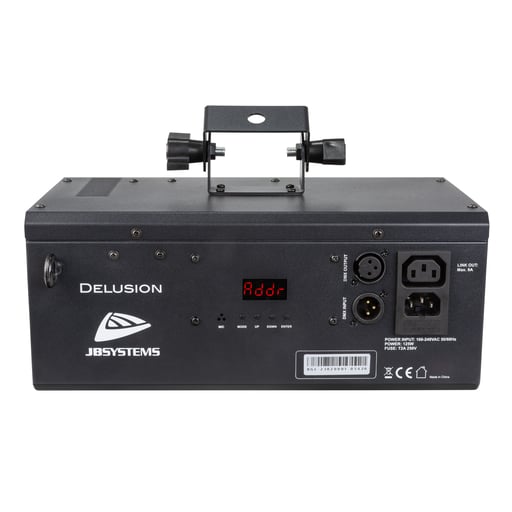

Connections : input 3 pin XLR, IEC
Connections : output 3 pin XLR, IEC
Brand JB SYSTEMS
EANCode 5420025654203

Manual & Downloads

Manual & Downloads

View FileDELUSION - Manual EN    Size: (2.28 MB) DELUSION - Manual English
View FileDELUSION - Manual FR    Size: (2.2 MB) DELUSION - Mode d'emploi Français
View FileDELUSION - Manual NL    Size: (2.16 MB) DELUSION - Handleiding Nederlands
View FileDELUSION - Manual DE    Size: (2.16 MB) DELUSION - Bedienungsanleitung Deutsch
View FileDELUSION - Manual ES    Size: (2.16 MB) DELUSION - Manual de instrucciones Español
View FileDELUSION - EC Declaration    Size: (455.59 KB) DELUSION - EC Declaration of Conformity
View FileDELUSION PDF leaflet Deutsch    Size: (2.11 MB) PDF_LEAFLET_DELUSION_B05420_de.pdf
View FileDELUSION PDF leaflet English    Size: (2.11 MB) PDF_LEAFLET_DELUSION_B05420_en.pdf
View FileDELUSION PDF leaflet Français    Size: (2.11 MB) PDF_LEAFLET_DELUSION_B05420_fr.pdf
View FileDELUSION PDF leaflet Nederlands    Size: (2.11 MB) PDF_LEAFLET_DELUSION_B05420_nl.pdf
