Details
Details
- Wired remote control for the JB Systems® DMX RECORDER.
- Ideal, easy to use, remote control for pubs and bars.
- Easy cleaning glass surface.

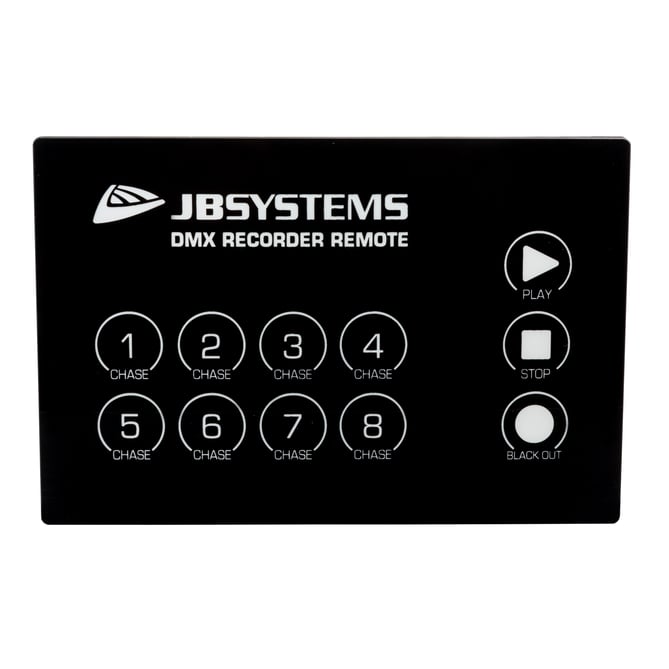

- Three control buttons for simplified control of the recorded chase(s):
- PLAY
- STOP
- BLACKOUT
- Eight chase buttons for quick selection of the desired show.
- Up to 3 units can be connected (daisy chained) to 1 DMX RECORDER.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 20.2 x 13.5 x 3.5 |
|---|---|
| General : Weight (kg) | 0.69 |
| General : Energy Label | No |
| General : Color | black |
| General : Display | touchscreen |
| General : RU | No |
| General : IP rating | indoor |
| Control : programmable | No |
| Control : upgradable software | No |

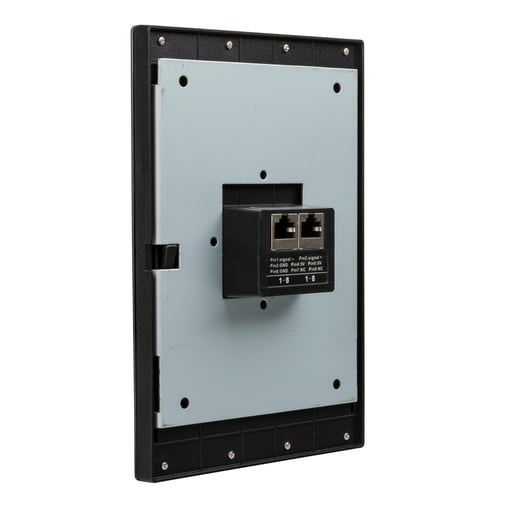

| Connections : input | RJ45 |
| Connections : output | RJ45 |
| Brand | JB SYSTEMS |
| EANCode | 5420025650212 |
Manual & Downloads
Manual & Downloads
 DMX RECORDER REMOTE - Manual EN Size: (936.22 KB) |
DMX RECORDER REMOTE - Manual English |
| DMX RECORDER REMOTE - Manual FR Size: (989.56 KB) |
DMX RECORDER REMOTE - Manual Français |
| DMX RECORDER REMOTE - Manual NL Size: (928.65 KB) |
DMX RECORDER REMOTE - Manual Nederlands |
| DMX RECORDER REMOTE - Manual DE Size: (972.39 KB) |
DMX RECORDER REMOTE - Manual Deutsch |
| DMX RECORDER REMOTE - Manual ES Size: (944.62 KB) |
DMX RECORDER REMOTE - Manual Español |
| DMX RECORDER REMOTE - EC Declaration Size: (445.46 KB) |
DMX RECORDER REMOTE - EC Declaration of Conformity |
| DMX_RECORDER_RE PDF leaflet Deutsch Size: (865.35 KB) |
PDF_LEAFLET_DMX_RECORDER_RE_B05021_de.pdf |
| DMX_RECORDER_RE PDF leaflet English Size: (865.11 KB) |
PDF_LEAFLET_DMX_RECORDER_RE_B05021_en.pdf |
| DMX_RECORDER_RE PDF leaflet Français Size: (866.03 KB) |
PDF_LEAFLET_DMX_RECORDER_RE_B05021_fr.pdf |
| DMX_RECORDER_RE PDF leaflet Nederlands Size: (864.37 KB) |
PDF_LEAFLET_DMX_RECORDER_RE_B05021_nl.pdf |
