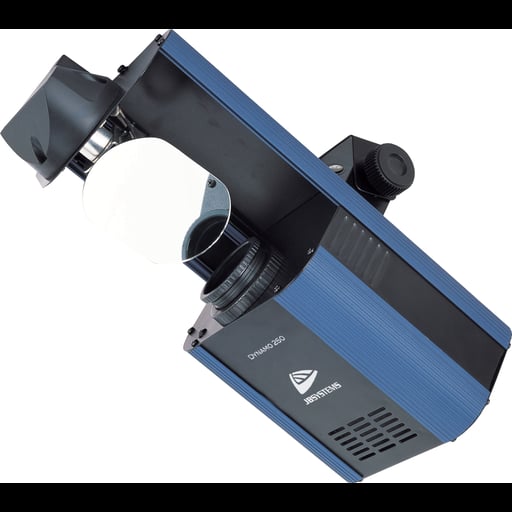

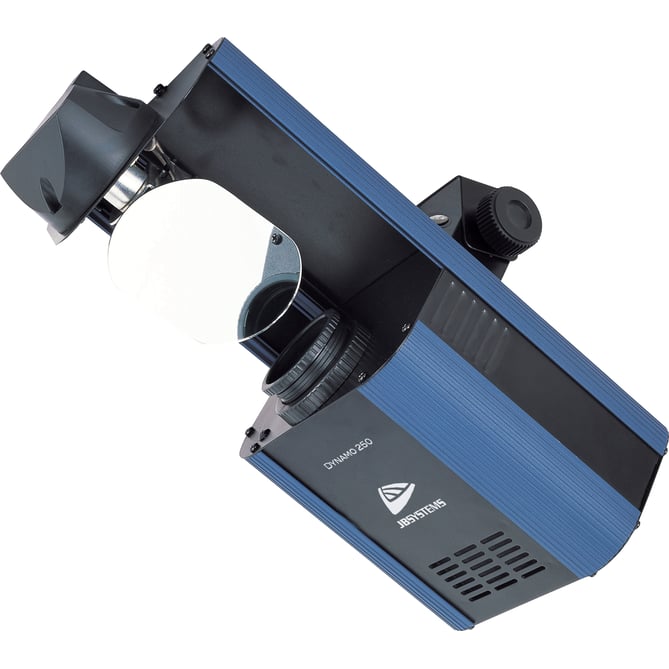

- Very attractive compact DMX scanner for mobile DJs
- Equipped with a brighter ELC250W/24V lamp for more light output
- Just connect the small, optional CA-8 controller for easy operation
- Master/slave mode with built-in programs + micro
- Easily controlled with iLEAD, SM1612 or any other DMX controller
- 10 multi colored Gobo
- Gobo Shaking effect
- Blackout and variable strobe
- DMX control 4 channels: (pan, tilt, shutter/gobo shaking, gobo/color)
- Fan cooling and electronic overheat protection.
- Adjustable focus
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 38.5 x 17 x 12 cm |
|---|---|
| General : Weight (kg) | 4 |
| General : Powerinput | AC 240V, 50Hz |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Color | black |
| General : Display | none |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Modes | N/A |
| Control : Protocol | N/A |
| Control : optional remote | CA-8 |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 4 |
| Light : lamp socket | No |
| Light : lamp | No |
| Light : colors | Red, Green, Blue |
| Light : mix colors | No |
| Light : functions | N/A |
| Light : fixed gobos | 10 |
| Light : rotating gobos | 10 |
| Light : max. refresh rate (kHz) | No |
| Connections : output | N/A |
| Brand | JB SYSTEMS |
| EANCode | 5420025640206 |
Manual & Downloads
Manual & Downloads
 DYNAMO 250 Manual v1.05 Size: (1.69 MB) |
DYNAMO 250 Manual v1.05 EN / FR / NL / DE / ES / PT |
| DYNAMO 250 EC Declaration Size: (570.8 KB) |
DYNAMO 250 EC Declaration of Conformity |
 DYNAMO 250 Chromateq fixture files Size: (1.18 KB) |
DYNAMO 250 Chromateq fixture files |
| DYNAMO_250 PDF leaflet Deutsch Size: (637 KB) |
PDF_LEAFLET_DYNAMO_250_04020_de.pdf |
| DYNAMO_250 PDF leaflet English Size: (636.46 KB) |
PDF_LEAFLET_DYNAMO_250_04020_en.pdf |
| DYNAMO_250 PDF leaflet Français Size: (638.53 KB) |
PDF_LEAFLET_DYNAMO_250_04020_fr.pdf |
| DYNAMO_250 PDF leaflet Nederlands Size: (636.59 KB) |
PDF_LEAFLET_DYNAMO_250_04020_nl.pdf |
