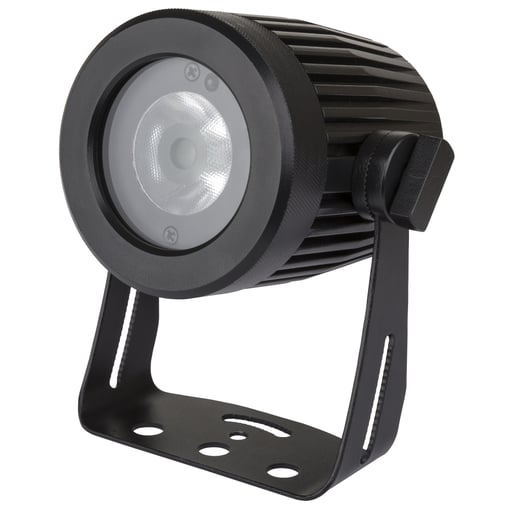

- Compact, waterproof LED projector.
- 15W RGBW LED
- 10° lens
- It’s an easy “plug and play” projector that can be used for many outdoor applications (perfect to light up trees in gardens, driveways,…)
- 16 fixed colors (with dimming)
- “Fade” – “Smooth” and “Flash” chases (with speed control)
- Strobe function (with speed control)
- Groundpin for easy installation in gardens, playgrounds, on beaches, etc…
- Easy IR-Remote Controller IR-3
- Attention : Standard the IR-3 remote control is switched OFF. Turn ON for first use by pushing 3 seconds on the ON-button on the remote!
- NOTE: this product has IP65 rating for outdoor installation under normal conditions (not exposed to seawater).
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 15.25 x 13.28 x 9 |
|---|---|
| General : Weight (kg) | 1.31 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Power consumption W | 15 |
| General : Color | black |
| General : Display | none |
| General : IP rating | outdoor |
| Control : Modes | standalone fixed, standalone automatic, remote, manual |
| Control : Type included remote | IR-3 |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | RGBW |
| Light : mix colors | Yes |
| Light : min. beam angle (°) | 10 |
| Light : max. beam angle (°) | 10 |
| Light : max. refresh rate (kHz) | 2.5 |
| Brand | JB SYSTEMS |
| EANCode | 5420025651318 |
Manual & Downloads
Manual & Downloads
 EZ-SPOT15 OUTDOOR Manual EN Size: (1.1 MB) |
EZ-SPOT15 OUTDOOR Manual English |
| EZ-SPOT15 OUTDOOR Manual NL Size: (1.33 MB) |
EZ-SPOT15 OUTDOOR Manual Nederlands |
| EZ-SPOT15 OUTDOOR Manual FR Size: (1.2 MB) |
EZ-SPOT15 OUTDOOR Manual Français |
| EZ-SPOT15 OUTDOOR Manual DE Size: (1.33 MB) |
EZ-SPOT15 OUTDOOR Manual Deutsch |
| EZ-SPOT15 OUTDOOR Manual ES Size: (1.11 MB) |
EZ-SPOT15 OUTDOOR Manual Español |
| EZ-SPOT15 OUTDOOR RGBW EC Declaration Size: (440.11 KB) |
EZ-SPOT15 OUTDOOR RGBW EC Declaration of Conformity |
| EZ-SPOT15_OUTDO PDF leaflet Deutsch Size: (848.35 KB) |
PDF_LEAFLET_EZ-SPOT15_OUTDO_B05131_de.pdf |
| EZ-SPOT15_OUTDO PDF leaflet English Size: (848.19 KB) |
PDF_LEAFLET_EZ-SPOT15_OUTDO_B05131_en.pdf |
| EZ-SPOT15_OUTDO PDF leaflet Français Size: (849.66 KB) |
PDF_LEAFLET_EZ-SPOT15_OUTDO_B05131_fr.pdf |
| EZ-SPOT15_OUTDO PDF leaflet Nederlands Size: (847.64 KB) |
PDF_LEAFLET_EZ-SPOT15_OUTDO_B05131_nl.pdf |
