Details
Details

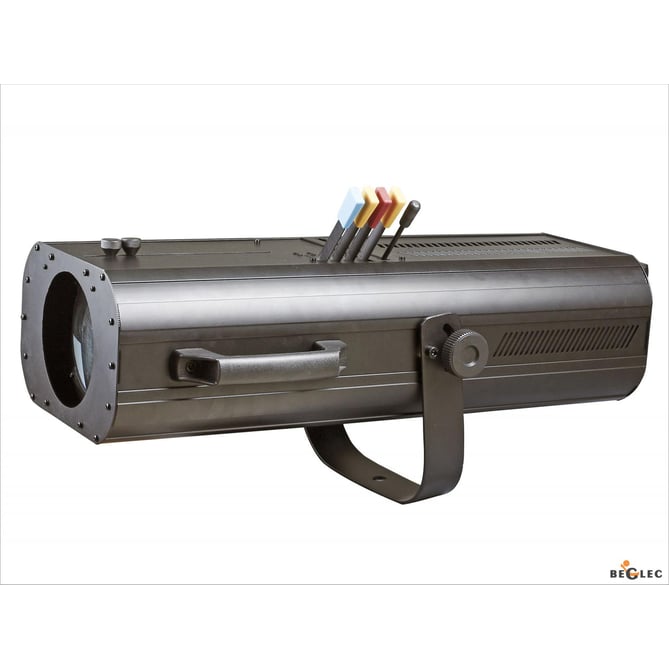

- Compact follow spot based on a 1000W halogen lamp
- Electronic dimmer ensures smooth dimming of the output
- High quality aluminium housing with 3 heat-resistant handles
- Built-in iris and blackout function

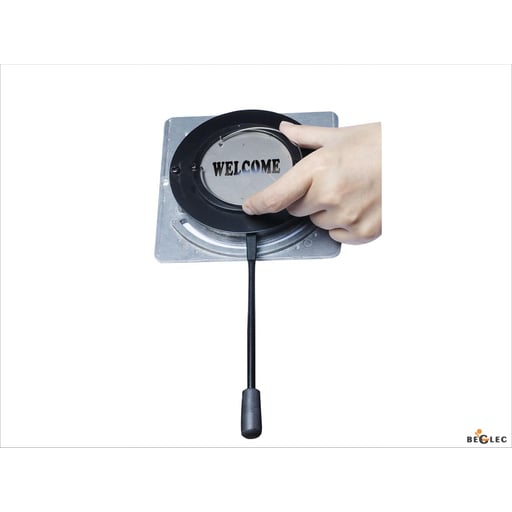

- Internal color changer with 4 color blades to obtain mixed colors
- Beam angle from 13° to 19°

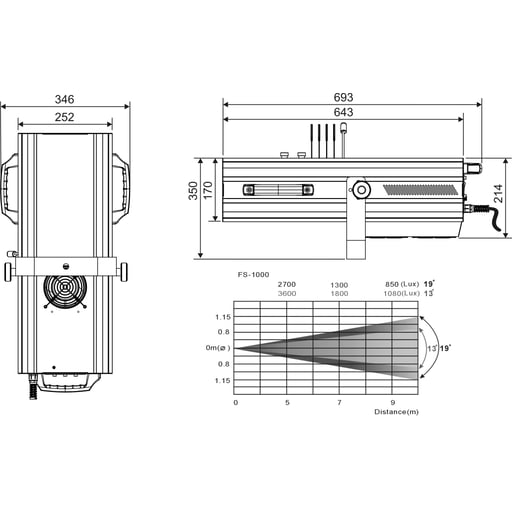

- Special reflector design for high luminous flux: 3600lux @ 5m, 1080lux @ 9m
- Overload protection and forced fan cooling
- Lamp socket: G22
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 69.3 x 34.6 x 17 cm |
|---|---|
| General : Weight (kg) | 14 |
| General : Powerinput | AC 240V, 50Hz |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Power consumption W | 1000 |
| General : Color | black |
| General : Display | none |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Modes | N/A |
| Control : Protocol | N/A |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Light : lamp socket | No |
| Light : Lux | 3600 @ 5m |
| Light : lamp | Halogen |
| Light : colors | Red, Green, Blue, White, Cold white |
| Light : mix colors | No |
| Light : functions | N/A |
| Light : fixed gobos | 1 |
| Light : min. beam angle (°) | 13 |
| Light : max. beam angle (°) | 19 |
| Light : max. refresh rate (kHz) | N/A |
| Connections : output | N/A |
| Brand | JB SYSTEMS |
| EANCode | 5420025620925 |
Manual & Downloads
Manual & Downloads
 FSP-1000 Manual Size: (901.91 KB) |
FSP-1000 Manual |
| FSP-1000 EC declaration Size: (569.67 KB) |
FSP-1000 EC declaration |
