Details
Details

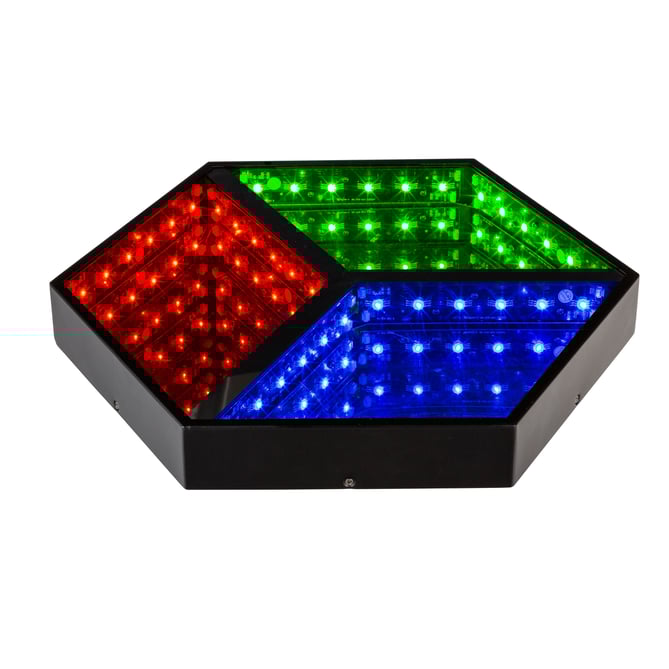

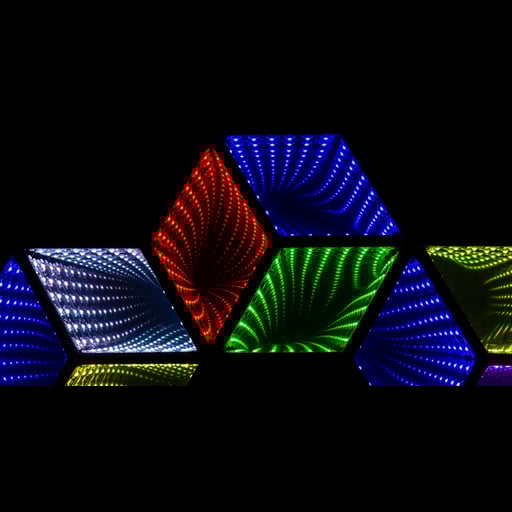

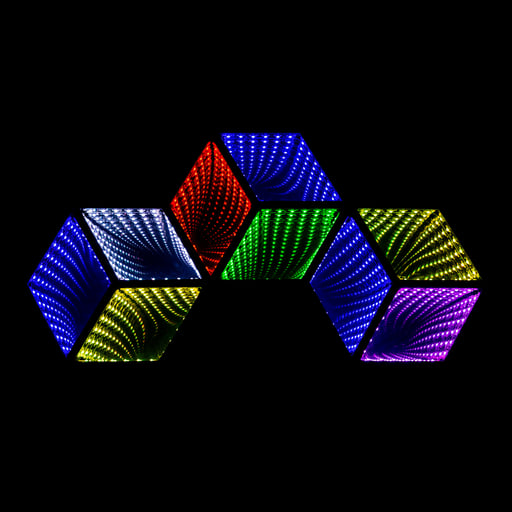

- Fantastic 3D mirror effect (RGB) for all kind of decorative purposes !
- Perfect eye catcher for pubs and shops!
- Use the unit in any way you like it !
- Standalone: sound activated (internal mic) or automatic shows.
- Master/slave function for wonderful synchronized shows when several units are used.
- DMX-control: via 3 or 9 Channels.
- 4-digit LED display for easy menu navigation
- IEC mains input + output for easy linking (check out our combi cables)
- 3P Male and Female XLR connectors for DMX in- and output.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 40.4 x 35.2 x 9.7 |
|---|---|
| General : Weight (kg) | 3.72 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 50 |
| General : Color | black |
| General : Display | LED |
| General : IP rating | indoor |
| Control : Modes | standalone sound, standalone automatic, manual, Master/Slave |
| Control : Protocol | DMX |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | 3 |
| Control : maximum DMX channels | 9 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | RGB |
| Light : mix colors | Yes |
| Light : max. refresh rate (kHz) | No |
| Connections : input | 3 pin XLR, IEC |
| Connections : output | 3 pin XLR, IEC |
| Brand | JB SYSTEMS |
| EANCode | 5420025662055 |
Manual & Downloads
Manual & Downloads
 HEXAGON 3D - Manual EN Size: (1.12 MB) |
HEXAGON 3D - Manual English |
| HEXAGON 3D - Manual NL Size: (1.3 MB) |
HEXAGON 3D - Manual Nederlands |
| HEXAGON 3D - Manual FR Size: (1.12 MB) |
HEXAGON 3D - Manual Français |
| HEXAGON 3D - Manual DE Size: (1.31 MB) |
HEXAGON 3D - Manual Deutsch |
| HEXAGON 3D - Manual ES Size: (1.31 MB) |
HEXAGON 3D - Manual Español |
| HEXAGON 3D - EC Declaration Size: (449.24 KB) |
HEXAGON 3D - EC Declaration of Conformity |
| HEXAGON_3D PDF leaflet Deutsch Size: (1.3 MB) |
PDF_LEAFLET_HEXAGON_3D_06205_de.pdf |
| HEXAGON_3D PDF leaflet English Size: (1.3 MB) |
PDF_LEAFLET_HEXAGON_3D_06205_en.pdf |
| HEXAGON_3D PDF leaflet Français Size: (1.3 MB) |
PDF_LEAFLET_HEXAGON_3D_06205_fr.pdf |
| HEXAGON_3D PDF leaflet Nederlands Size: (1.3 MB) |
PDF_LEAFLET_HEXAGON_3D_06205_nl.pdf |
Reviews & References
Customer Reviews (1)
- Supermooi lichteffect, mooier dan verwacht.Review by Yo'Reefje
-
Supermooi lichteffect, mooier dan verwacht.Rating
[Translation]
Super nice light effect, more beautiful than expected. (Posted on 5/31/2023)
