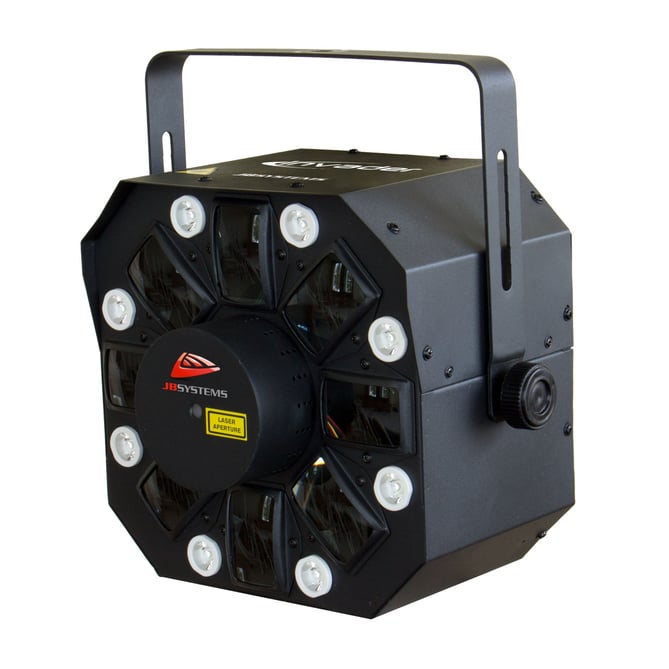

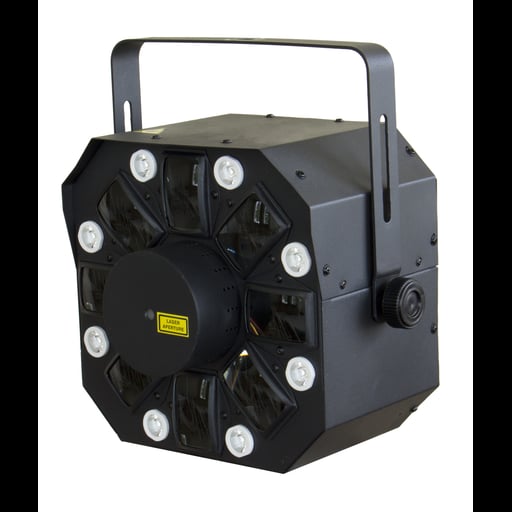

INVADER

Multieffect: 23W led effect + 200mW red+green laser
SKU: B04176
EANCODE: 5420025641760

Details

Details

  • Just buy one effect and you have it all!
  • This incredible effect mixes 3 different effects in wonderful combination:
    • LED effect, similar to our LED DEVIL (5pcs 3watt leds with different colors: red, green, blue, orange, white)
    • LED STROBE: powerful white LEDs (8pcs 1watt)
    • LASER effect: wonderful red (150mW) / green (50mW) laser patterns, Class 3R laser.
  • A lot of different internal programs to make life simple!
    • DMX-control: 1channel for easy operation or 9 channels for full control.
    • Standalone: sound activated (internal mic) or automatic.
    • Master/slave: wonderful synchronized shows.
  • 3-digit LED display for easy menu navigation
  • IEC mains input + output for easy linking
  • Key activated on/off switch and emergency switch (interlock) input for additional safety
  • Complies to EN/IEC 60825-1 2007 for Laser Safety

Technical Specifications

Technical Specifications

General : Dimensions (cm) 24 x 22 x11 cm
General : Weight (kg) 3.75
General : Powerinput AC 100 - 240V, 50/60Hz
General : Energy Label No
General : Power consumption W 66
General : Color black
General : Display LED
General : Fixation optional standard clamp
General : IP rating indoor
Control : Modes standalone sound, standalone automatic, DMX, Master/Slave
Control : Protocol DMX
Control : programmable No
Control : upgradable software No
Control : minimum DMX channels 1
Control : maximum DMX channels 9
Light : lamp socket No
Light : lamp LED
Light : colors Red, Green, Blue, White
Light : mix colors No
Light : max. refresh rate (kHz) No
Connections : input 3 pin XLR, IEC
Connections : output 3 pin XLR, IEC
Brand JB SYSTEMS
EANCode 5420025641760

Manual & Downloads

Manual & Downloads

View FileINVADER - Manual V1.0    Size: (3.19 MB) INVADER - Manual V1.0 EN / FR / NL / DE / ES
View FileINVADER - Manual V2.0 EN    Size: (2.41 MB) INVADER - Manual V2.0 English
View FileINVADER - Manual V2.0 FR    Size: (2.27 MB) INVADER - Manual V2.0 Français
View FileINVADER - Manual V2.0 NL    Size: (2.23 MB) INVADER - Manual V2.0 Nederlands
View FileINVADER - Manual V2.0 DE    Size: (2.23 MB) INVADER - Manual V2.0 Deutsch
View FileINVADER - Manual V2.0 ES    Size: (2.23 MB) INVADER - Manual V2.0 Español
View FileINVADER - EC Declaration    Size: (449.63 KB) INVADER - EC Declaration of Conformity
View FileINVADER PDF leaflet Deutsch    Size: (1.42 MB) PDF_LEAFLET_INVADER_B04176_de.pdf
View FileINVADER PDF leaflet English    Size: (1.42 MB) PDF_LEAFLET_INVADER_B04176_en.pdf
View FileINVADER PDF leaflet Français    Size: (1.42 MB) PDF_LEAFLET_INVADER_B04176_fr.pdf
View FileINVADER PDF leaflet Nederlands    Size: (1.42 MB) PDF_LEAFLET_INVADER_B04176_nl.pdf
