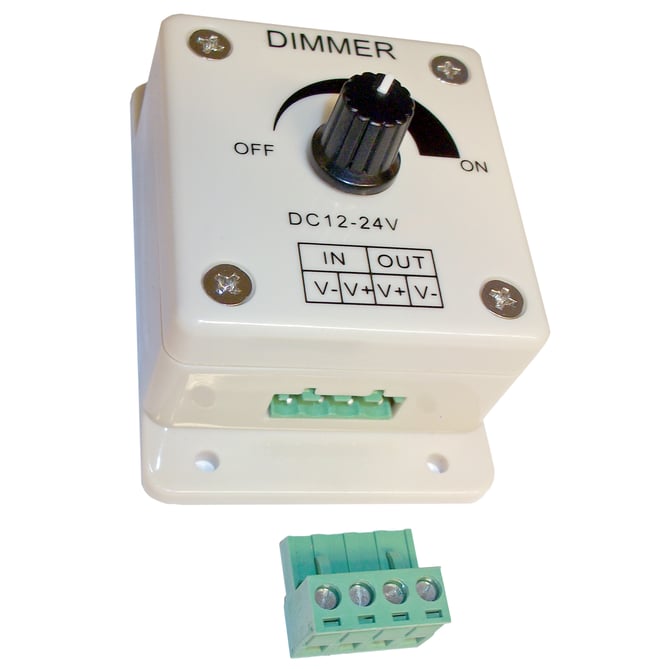

LED 1CH DIM-CONTROL

User-friendly 1-channel dimmer for all kinds of 12Vdc / 24Vdc LED-projectors like led strips.

SKU: B05393

EANCODE: 5420025653930

User-friendly 1channel dimmer for all kinds of 12Vdc / 24Vdc LED-projectors like led strips.
PWM technology for smooth and flicker-free dimming from 0% to 100%

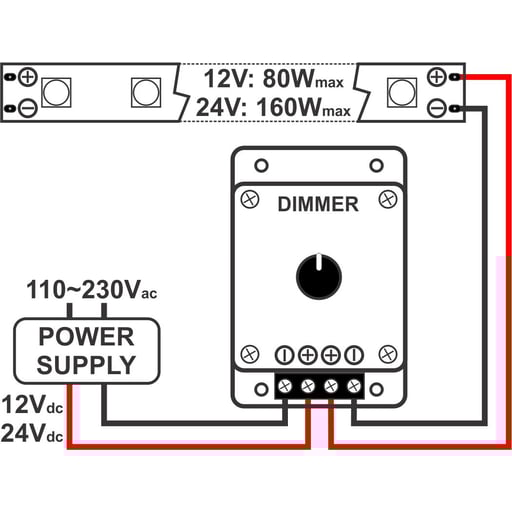

Connects directly to 1color flexible LED-strips and other constant voltage LED-lights.
Max. output power: 80Watt @12V * 160Watt @ 24V
Extremely easy to install: only 4wires to connect!
Standard 4pole Euro Block 5.08mm connector included
Can be mounted on any surface using 4 small screws.
Perfect for use in LED installations for homes, shops, …

General : Dimensions (cm)	8,9 x 5,9 x 5 cm
General : Weight (kg)	0.06
General : Powerinput	24Vdc, 12Vdc
General : Energy Label	No
General : Color	white
General : Display	none
General : IP rating	indoor
Control : programmable	No
Control : upgradable software	No
Light : max. refresh rate (kHz)	0.5
Brand	JB SYSTEMS
EANCode	5420025653930

LED 1CH DIM-CONTROL Manual English Size: (916.23 KB)	LED 1CH DIM-CONTROL Manual English
LED 1CH DIM-CONTROL Manual Deutsch Size: (818.32 KB)	LED 1CH DIM-CONTROL Manual Deutsch
LED 1CH DIM-CONTROL Manual Français Size: (988.06 KB)	LED 1CH DIM-CONTROL Manual Français
LED 1CH DIM-CONTROL Manual Nederlands Size: (861.81 KB)	LED 1CH DIM-CONTROL Manual Nederlands
LED 1CH DIM-CONTROL Manual Español Size: (820.01 KB)	LED 1CH DIM-CONTROL Manual Español
