Details
Details
- Thanks to its special design this very powerful LED-effect produces stunning, ever-changing effects!
- Uses 320 power LED, divided over 5 LED clusters (R=80 + G=80 + B=80 + W=80)
- Extremely brilliant colors compared to effects with halogen lamps
- More dynamic effects compared to effects based on halogen lamps
- Very sharp white, blue, red and green laser-like beams
- No lamp replacements!
- Virtually no heat production and very low power consumption
- Lightweight (no lamp transformers needed)
- Ultra fast strobe function
- Excellent built-in programs for wonderful, ever-changing, light shows:
- Standalone: sound activated with internal mic
- Master/slave: wonderful synchronized shows (optional CA-8 / RF-8SET controller available)
- SMART-DMX (previously known as DMX MSL mode) : thanks to this revolutionary new feature several LED Crossfire units, working in master/slave, can still be controlled by DMX! Even while connected in a DMX chain! (optional mini DMX splitter required)
- DMX-control: 4 channels for full control of internal chases, speed, strobe and working mode
- 2 optional remote controllers available:
- CA-8: wired remote for improved master/slave control

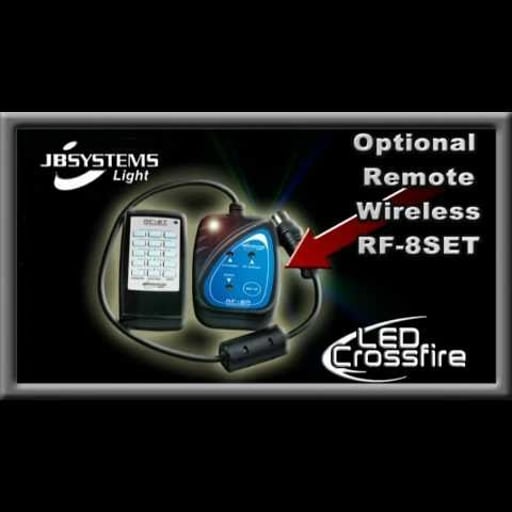

- RF-8 Set: wireless RF-remote for improved master/slave control
(RF-8SET = RF-8T “transmitter” + RF-8R “receiver”) - 4-digit menu driven display
- Mains IEC in/outputs for easy linking using optional IEC cables
- Perfect for different applications: discos, clubs, mobile DJs, ...
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 45.7 x 43.3 x 28.6 cm |
|---|---|
| General : Weight (kg) | 9 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Power consumption W | 40 |
| General : Color | black |
| General : Display | LED |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Modes | N/A |
| Control : Protocol | N/A |
| Control : optional remote | CA-8, RF8-SET |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 4 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | Red, Green, Blue, White |
| Light : mix colors | No |
| Light : functions | N/A |
| Light : max. refresh rate (kHz) | No |
| Connections : output | N/A |
| Brand | JB SYSTEMS |
| EANCode | 5420025641616 |
Manual & Downloads
Manual & Downloads
 LED CROSSFIRE - Manual Size: (1.79 MB) |
LED CROSSFIRE - Manual EN / FR / NL / DE / ES / PT |
| LED_CROSSFIRE PDF leaflet Deutsch Size: (692.43 KB) |
PDF_LEAFLET_LED_CROSSFIRE_04161_de.pdf |
| LED_CROSSFIRE PDF leaflet English Size: (691.79 KB) |
PDF_LEAFLET_LED_CROSSFIRE_04161_en.pdf |
| LED_CROSSFIRE PDF leaflet Français Size: (694.31 KB) |
PDF_LEAFLET_LED_CROSSFIRE_04161_fr.pdf |
| LED_CROSSFIRE PDF leaflet Nederlands Size: (692.22 KB) |
PDF_LEAFLET_LED_CROSSFIRE_04161_nl.pdf |
