Details
Details

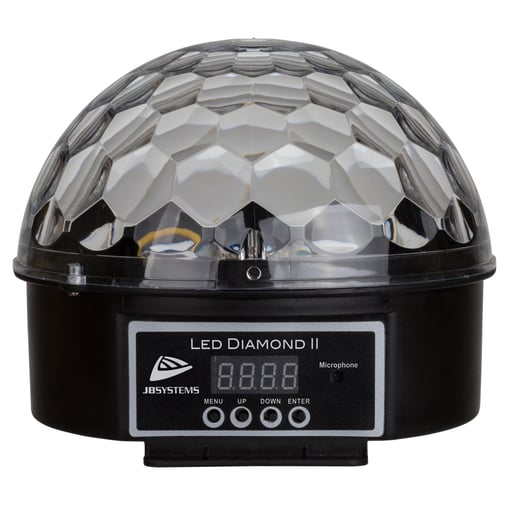

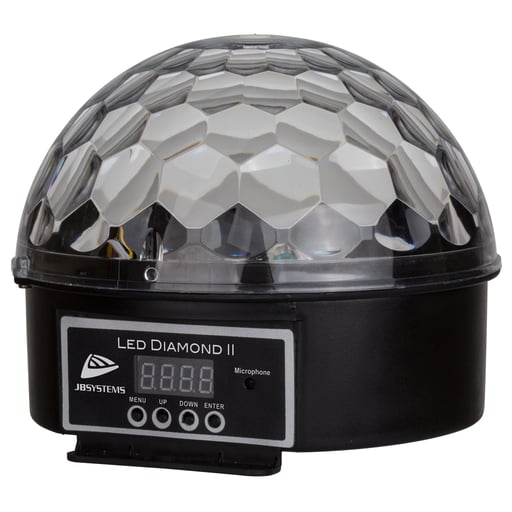

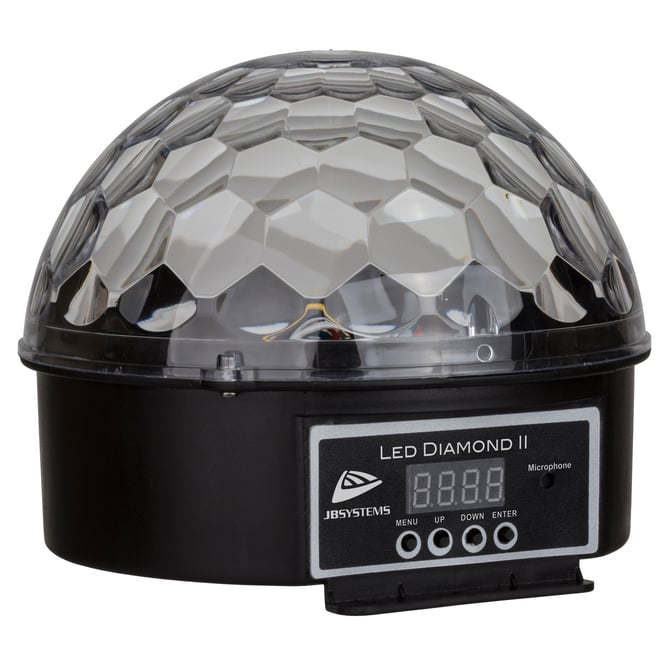

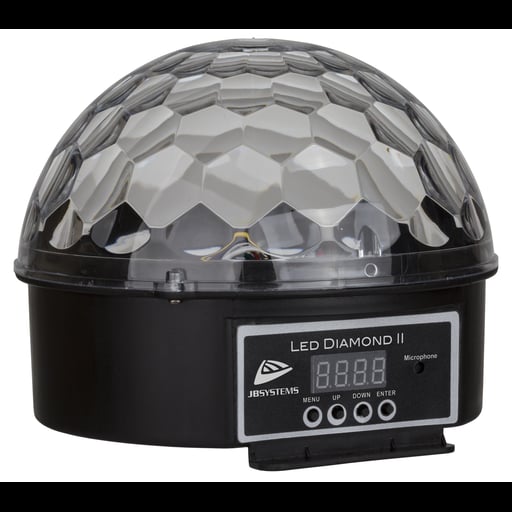

- A very attractive and compact DMX-controlled LED effect
- The multiple lenses project lots of sharp colored beams over 360 degrees!
- Dynamic internal programs for wonderful shows
- 0-100% dimming and ultra fast strobe function
- Based on 6 powerful 3Watt LEDs (1 red + 1 green + 1 blue + 1 white + 1 orange + 1 purple)
- Brilliant colors!
- Very low power consumption
- 6ch DMX-control: rotation + color control + strobe + sound active
- 1ch DMX-control: for extremely easy DMX operation
- Standalone: static or sound activated with internal mic
- Master/slave: wonderful synchronized shows
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 19 x 19 x 17,5 |
|---|---|
| General : Weight (kg) | 0.42 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 24 |
| General : Color | black |
| General : Display | LED |
| General : IP rating | indoor |
| Control : Modes | standalone sound, standalone automatic, manual, DMX, Master/Slave |
| Control : Protocol | DMX |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | 1 |
| Control : maximum DMX channels | 6 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : mix colors | No |
| Light : max. refresh rate (kHz) | No |
| Connections : input | 3 pin XLR, Schuko CEE 7/7 |
| Connections : output | 3 pin XLR |
| Brand | JB SYSTEMS |
| EANCode | 5420025641883 |
Manual & Downloads
Manual & Downloads
 LED DIAMOND II Manual NL Size: (851.78 KB) |
LED DIAMOND II Manual Nederlands |
| LED DIAMOND II Manual FR Size: (943.37 KB) |
LED DIAMOND II Manual Français |
| LED DIAMOND II Manual DE Size: (880.95 KB) |
LED DIAMOND II Manual Deutsch |
| LED DIAMOND II Manual ES Size: (879.25 KB) |
LED DIAMOND II Manual Español |
| LED DIAMOND II Manual EN Size: (938.53 KB) |
LED DIAMOND II Manual English |
| LED DIAMOND II EC Declaration Size: (400.66 KB) |
LED DIAMOND II EC Declaration of Conformity |
 LED DIAMOND II Chromateq fixture files Size: (1.71 KB) |
LED DIAMOND II Chromateq fixture files |
| LED_DIAMOND_II PDF leaflet Deutsch Size: (751.87 KB) |
PDF_LEAFLET_LED_DIAMOND_II_04188_de.pdf |
| LED_DIAMOND_II PDF leaflet English Size: (750.81 KB) |
PDF_LEAFLET_LED_DIAMOND_II_04188_en.pdf |
| LED_DIAMOND_II PDF leaflet Français Size: (753.46 KB) |
PDF_LEAFLET_LED_DIAMOND_II_04188_fr.pdf |
| LED_DIAMOND_II PDF leaflet Nederlands Size: (751.17 KB) |
PDF_LEAFLET_LED_DIAMOND_II_04188_nl.pdf |
