Details
Details

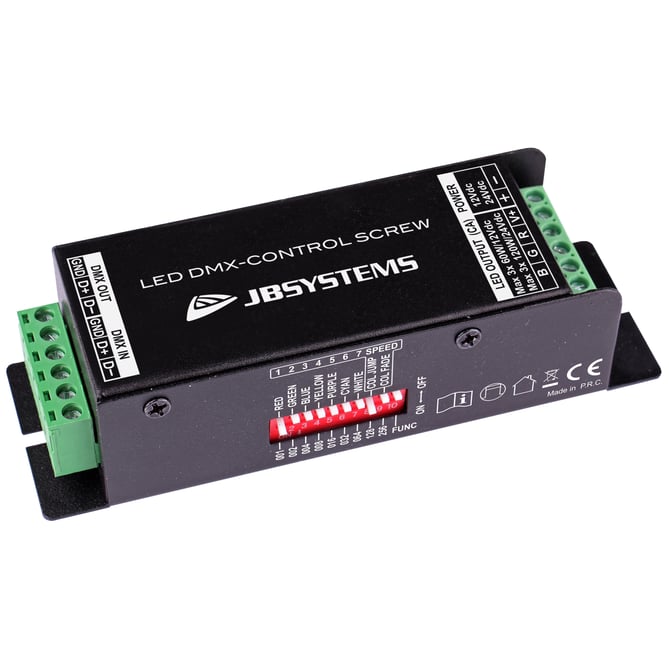

- Extremely versatile DMX LED-controller for all kinds of passive 12Vdc / 24Vdc LED-projectors like led strips.

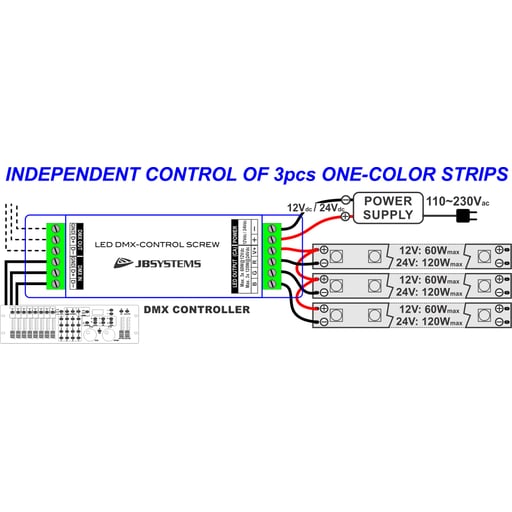

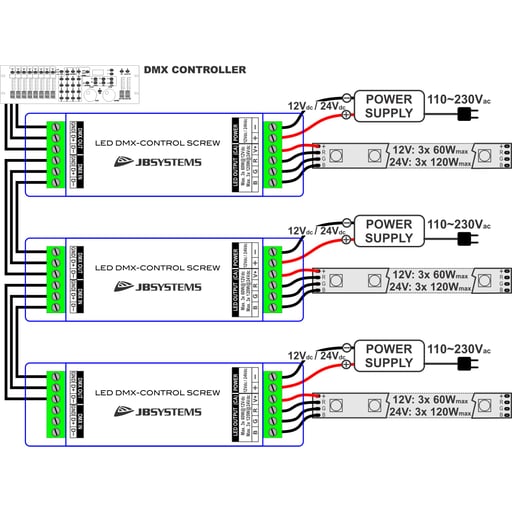

- Can be used for both RGB and 1color led strips.
- PWM technology for smooth and flicker-free dimming from 0% to 100%
- Easy electrical installation: equipped with wire terminals for both DMX-in/out + LED-outputs
- Max output: 60W/ch = 180W @ 12Vdc or 120W/ch = 360W @ 24Vdc
- LED-output power can always be increased using our optional [LED REPEATER] boosters.
- All functions can be controlled:
- Directly on the on the controller (DIP switches)
- Using an optional LEDCON-02 Mk2 (also with sound mode)
- Using any standard DMX-controller
- Different standalone working modes:
- Fixed color mode: Instant access to 7 pre-programmed colors
- Auto chase mode: 7 color chase with 7 different speeds.
- Fade chase mode: 7 colors fading smoothly at 7 different speeds.
- 4 DMX channels needed: Ch1=red, Ch2=green, Ch3=Blue, Ch4=Dimmer/strobe.
- Enclosure prepared for easy installing against the wall.
- Perfect for use in LED installations for homes, shops, …
- No fan cooling: completely silent!
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 12,5 x 4,1 x 3,2 |
|---|---|
| General : Weight (kg) | 0.15 |
| General : Powerinput | 24Vdc, 12Vdc |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Power consumption W | 360 |
| General : Color | black |
| General : Display | none |
| General : IP rating | indoor |
| Control : Protocol | N/A |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 4 |
| Light : max. refresh rate (kHz) | 0.5 |
| Brand | JB SYSTEMS |
| EANCode | 5420025653947 |
Manual & Downloads
Manual & Downloads
 LED DMX-CONTROL SCREW - Manual English Size: (2.03 MB) |
LED DMX-CONTROL SCREW - Manual English |
| LED DMX-CONTROL SCREW - Manual Deutsch Size: (1.91 MB) |
LED DMX-CONTROL SCREW - Manual Deutsch |
| LED DMX-CONTROL SCREW - Manual Français Size: (2.18 MB) |
LED DMX-CONTROL SCREW - Manual Français |
| LED DMX-CONTROL SCREW - Manual Nederlands Size: (1.92 MB) |
LED DMX-CONTROL SCREW - Manual Nederlands |
| LED DMX-CONTROL SCREW - Manual Español Size: (1.96 MB) |
LED DMX-CONTROL SCREW - Manual Español |
| LED DMX-CONTROL SCREW - EC Declaration Size: (635.8 KB) |
LED DMX-CONTROL SCREW - EC Declaration of Conformity |
| LED_DMX-CONTROL PDF leaflet Deutsch Size: (1.27 MB) |
PDF_LEAFLET_LED_DMX-CONTROL_05394_de.pdf |
| LED_DMX-CONTROL PDF leaflet English Size: (1.27 MB) |
PDF_LEAFLET_LED_DMX-CONTROL_05394_en.pdf |
| LED_DMX-CONTROL PDF leaflet Français Size: (1.28 MB) |
PDF_LEAFLET_LED_DMX-CONTROL_05394_fr.pdf |
| LED_DMX-CONTROL PDF leaflet Nederlands Size: (1.27 MB) |
PDF_LEAFLET_LED_DMX-CONTROL_05394_nl.pdf |
