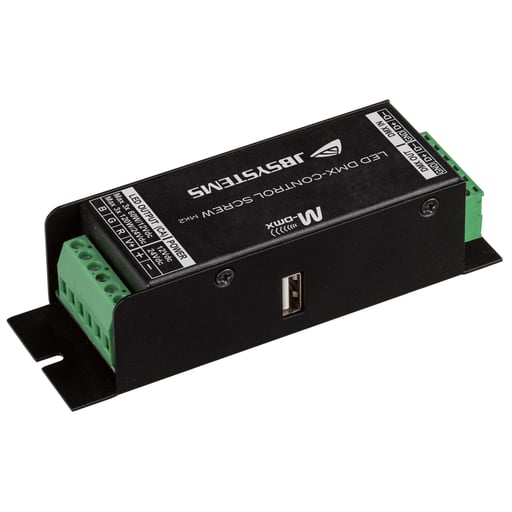

LED DMX-CONTROL SCREW Mk2

Extremely versatile DMX LED-controller for all kinds of passive 12Vdc / 24Vdc LED-projectors like ledstrips, prepared for wireless DMX (dongle)
SKU: B05399
EANCODE: 5420025653992

Details

Details

  • Extremely versatile DMX LED-controller for all kinds of passive 12Vdc / 24Vdc LED-projectors like led strips.

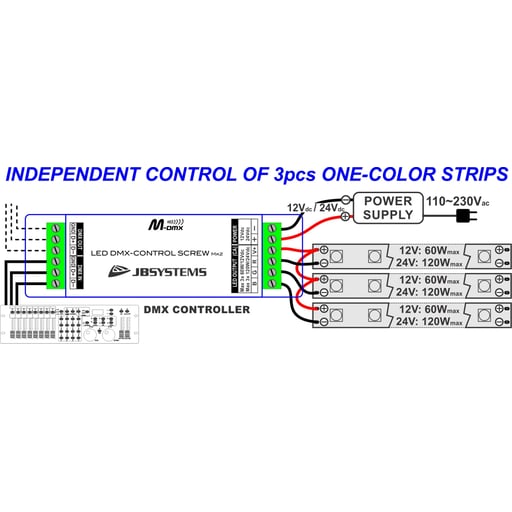

  • Can be used for both RGB and 1color led strips.
  • PWM technology for smooth and flicker-free dimming from 0% to 100%
  • Easy electrical installation: equipped with wire terminals for both DMX-in/out + LED-outputs

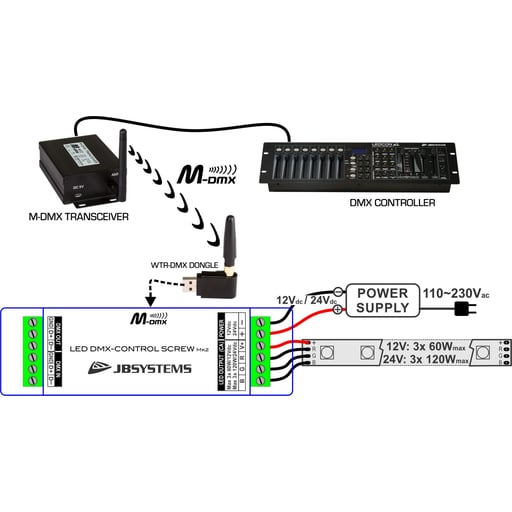

  • Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE ! (optional, Briteq® code 4645)
  • Max output: 60W/ch = 180W @ 12Vdc   or 120W/ch = 360W @ 24Vdc
  • LED-output power can always be increased using our optional [LED REPEATER] boosters.
  • All functions can be controlled:

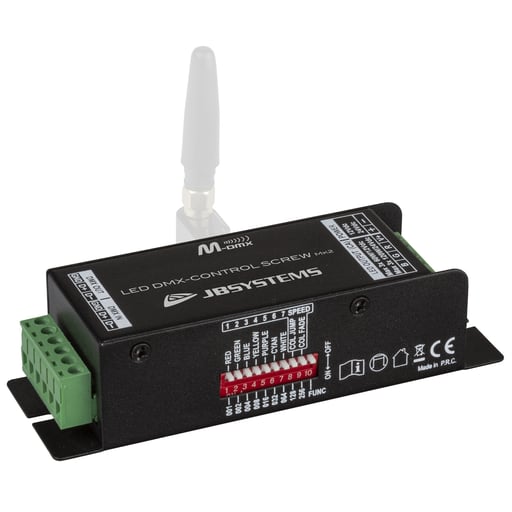

    • Directly on the controller (DIP switches)
    • Using an optional LEDCON-02 Mk2 (also with sound mode)
    • Using any standard DMX-controller
    • An optional wireless DMX dongle (WTR-DMX DONGLE)
  • Different standalone working modes:
    • Fixed color mode: Instant access to 7 pre-programmed colors
    • Auto chase mode: 7 color chase with 7 different speeds.
    • Fade chase mode: 7 colors fading smoothly at 7 different speeds.
  • 4 DMX channels needed: Ch1=red, Ch2=green, Ch3=Blue, Ch4=Dimmer/strobe.
  • Enclosure prepared for easy installing against the wall.
  • Perfect for use in LED installations for homes, shops, …
  • No fan cooling: completely silent!

Technical Specifications

Technical Specifications

General : Application Architectural, Commercial
General : Dimensions (cm) 12.5 x 4.1 x 3.2
General : Weight (kg) 0.3
General : Powerinput 24Vdc, 12Vdc
General : Energy Label No
General : Power consumption W 360
General : Color black
General : Display No
General : IP rating indoor
Control : programmable No
Control : upgradable software No
Control : maximum DMX channels 4
Brand JB SYSTEMS
EANCode 5420025653992

Downloads

Downloads

View FileLED DMX-CONTROL SCREW Mk2 - Manual EN    Size: (1.3 MB) LED DMX-CONTROL SCREW Mk2 - Manual English
View FileLED DMX-CONTROL SCREW Mk2 - Manual NL    Size: (1.23 MB) LED DMX-CONTROL SCREW Mk2 - Manual Nederlands
View FileLED DMX-CONTROL SCREW Mk2 - Manual FR    Size: (1.27 MB) LED DMX-CONTROL SCREW Mk2 - Manual Français
View FileLED DMX-CONTROL SCREW Mk2 - Manual DE    Size: (1.19 MB) LED DMX-CONTROL SCREW Mk2 - Manual Deutsch
View FileLED DMX-CONTROL SCREW Mk2 - Manual ES    Size: (1.19 MB) LED DMX-CONTROL SCREW Mk2 - Manual Español
View FileLED_DMX-CONTROL PDF leaflet Deutsch    Size: (1.52 MB) PDF_LEAFLET_LED_DMX-CONTROL_05399_de.pdf
View FileLED_DMX-CONTROL PDF leaflet English    Size: (1.52 MB) PDF_LEAFLET_LED_DMX-CONTROL_05399_en.pdf
View FileLED_DMX-CONTROL PDF leaflet Français    Size: (1.52 MB) PDF_LEAFLET_LED_DMX-CONTROL_05399_fr.pdf
View FileLED_DMX-CONTROL PDF leaflet Nederlands    Size: (1.52 MB) PDF_LEAFLET_LED_DMX-CONTROL_05399_nl.pdf
