Details
Details
- Extremely versatile DMX LED-controller for all kinds of passive 12Vdc / 24Vdc LED-projectors like led strips.

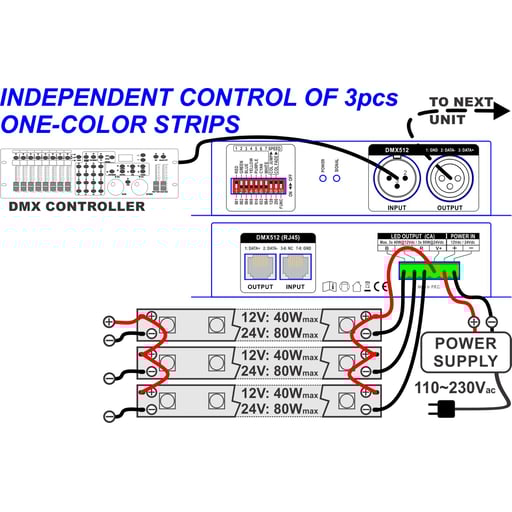

- Can be used for both RGB and 1color led strips.
- PWM technology for smooth and flicker-free dimming from 0% to 100%

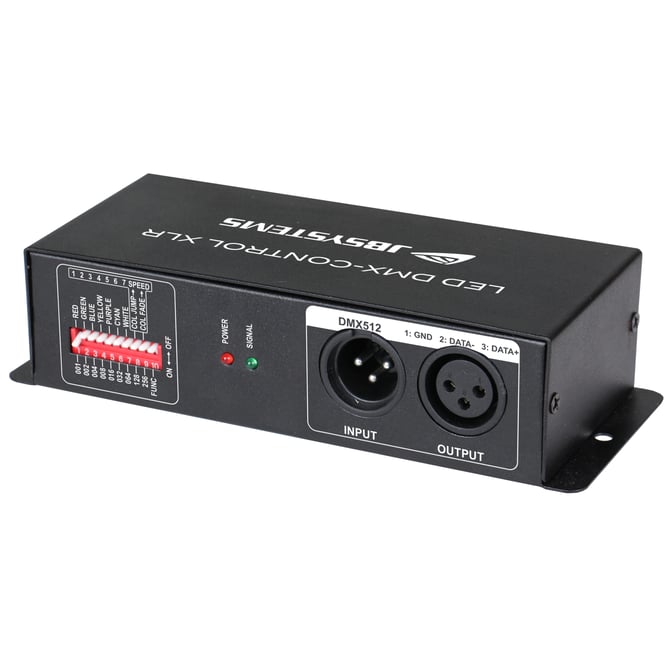

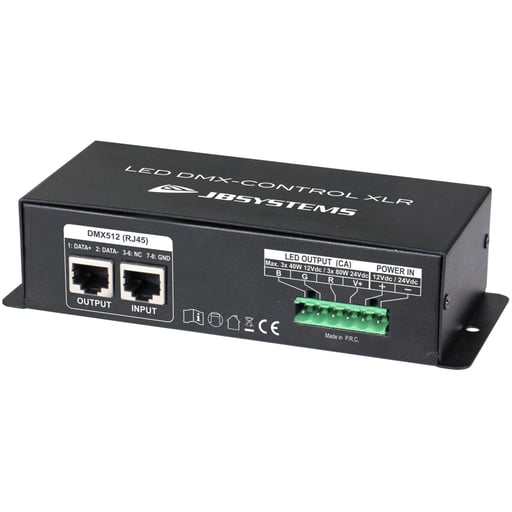

- Easy electrical installation: equipped with XLR and RJ45 DMX-in/out + wire terminal LED-outputs
- Max output: 40W/ch = 120W @ 12Vdc or 80W/ch = 240W @ 24Vdc
- LED-output power can always be increased using our [LED REPEATER] boosters.
- All functionscan be controlled:
- Directly on the on the controller (DIP switches)
- Using an optional LEDCON-02 Mk2 (also with sound mode)
- Using any standard DMX-controller
- Different standalone working modes:
- Fixed color mode: Instant access to 7 pre-programmed colors
- Auto chase mode: 7 color chase with 7 different speeds.
- Fade chase mode: 7 colors fading smoothly at 7 different speeds.
- 4 DMX channels needed: Ch1=red, Ch2=green, Ch3=Blue, Ch4=Dimmer/strobe.
- Enclosure prepared for easy installing against the wall.
- Perfect for use in LED installations for homes, shops, …
- No fan cooling: completely silent!
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 16,5 x 6,6 x 4,2 cm |
|---|---|
| General : Weight (kg) | 0.3 |
| General : Powerinput | 24Vdc, 12Vdc |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Color | black |
| General : Display | none |
| General : IP rating | indoor |
| Control : Protocol | N/A |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 4 |
| Light : max. refresh rate (kHz) | 0.5 |
| Brand | JB SYSTEMS |
| EANCode | 5420025653954 |
Manual & Downloads
Manual & Downloads
 LED DMX-CONTROL XLR Manual English Size: (1.31 MB) |
LED DMX-CONTROL XLR Manual English |
| LED DMX-CONTROL XLR Manual Deutsch Size: (1.49 MB) |
LED DMX-CONTROL XLR Manual Deutsch |
| LED DMX-CONTROL XLR Manual Español Size: (1.28 MB) |
LED DMX-CONTROL XLR Manual Español |
| LED DMX-CONTROL XLR Manual Français Size: (1.48 MB) |
LED DMX-CONTROL XLR Manual Français |
| LED DMX-CONTROL XLR Manual Nederlands Size: (1.27 MB) |
LED DMX-CONTROL XLR Manual Nederlands |
| LED_DMX-CONTROL PDF leaflet Deutsch Size: (1.04 MB) |
PDF_LEAFLET_LED_DMX-CONTROL_05395_de.pdf |
| LED_DMX-CONTROL PDF leaflet English Size: (1.03 MB) |
PDF_LEAFLET_LED_DMX-CONTROL_05395_en.pdf |
| LED_DMX-CONTROL PDF leaflet Français Size: (1.04 MB) |
PDF_LEAFLET_LED_DMX-CONTROL_05395_fr.pdf |
| LED_DMX-CONTROL PDF leaflet Nederlands Size: (1.03 MB) |
PDF_LEAFLET_LED_DMX-CONTROL_05395_nl.pdf |
