Details
Details

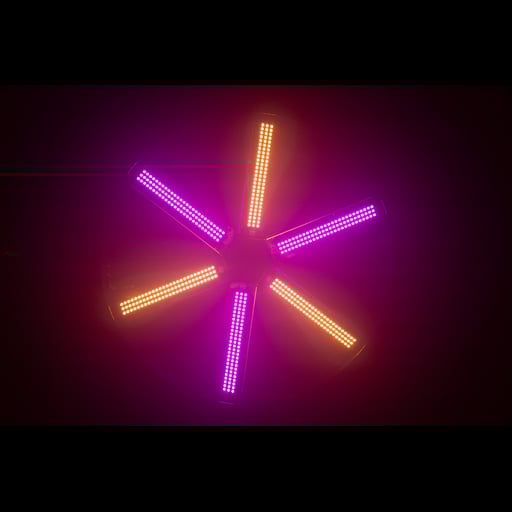

- High power 50x50cm LED-EFFECT FAN

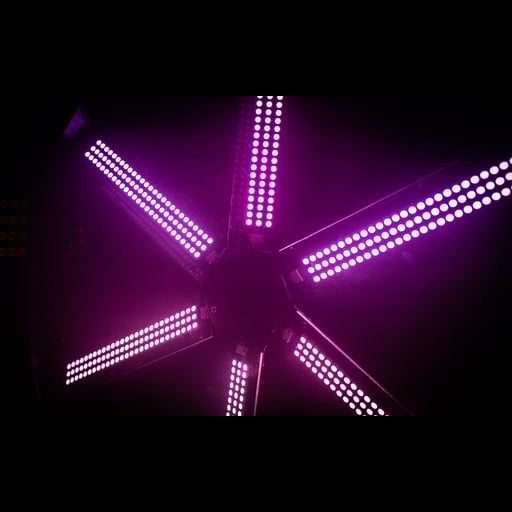

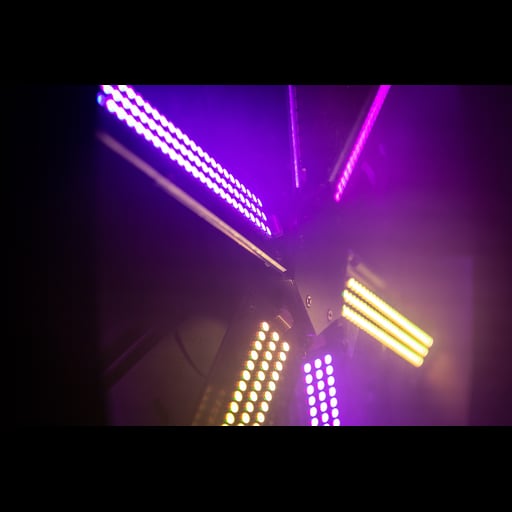

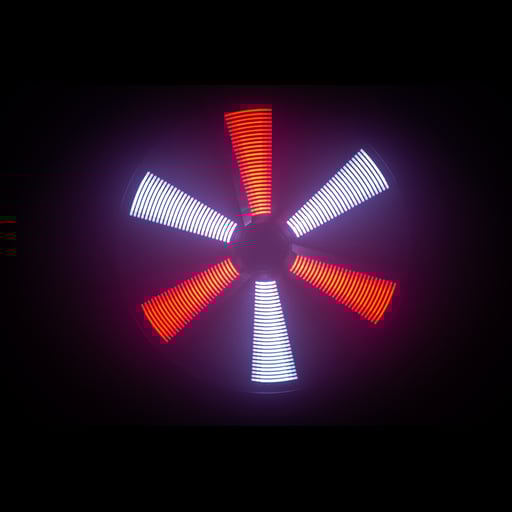

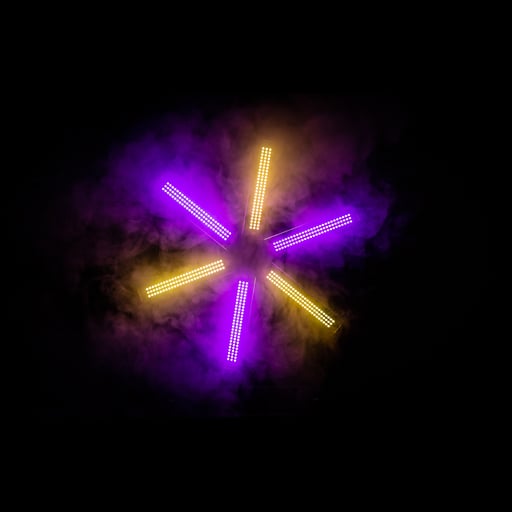

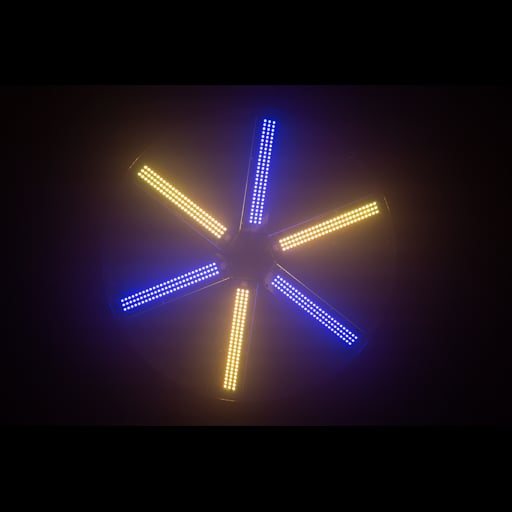

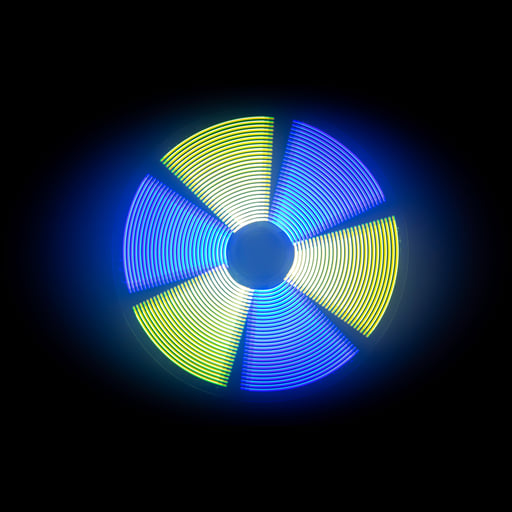

- 6 fan blades with a total of 486 RGB-leds.
- 2 groups of 3 LED blades can be controlled individually.
- Very slow to very fast bidirectional fan rotations.
- Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE ! (Briteq® order code: B04645).
- Different working modes:
- Standalone: automatic or beat synchronized activation.
- Master/slave mode: several units can be used together for wonderful automatic synchronized lightshows.
- DMX-controlled: via 4, 8 or 11 DMX channels.

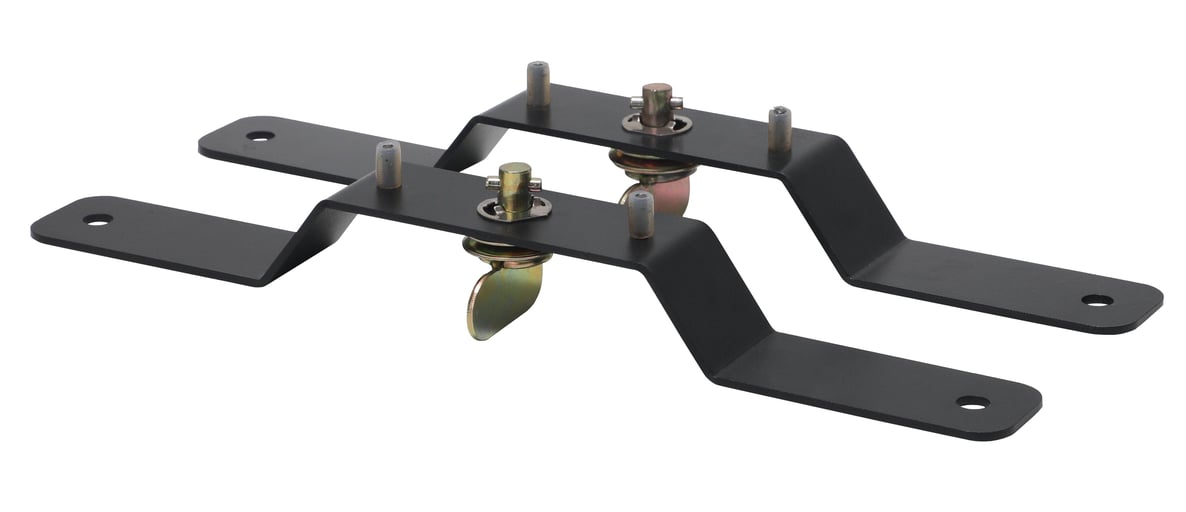

- Floor stands and omega suspension brackets are optionally available.
- Many applications possible: Discotheques, DJs, rental companies, ...
- 0-100% dimming and ultra-fast strobe function.

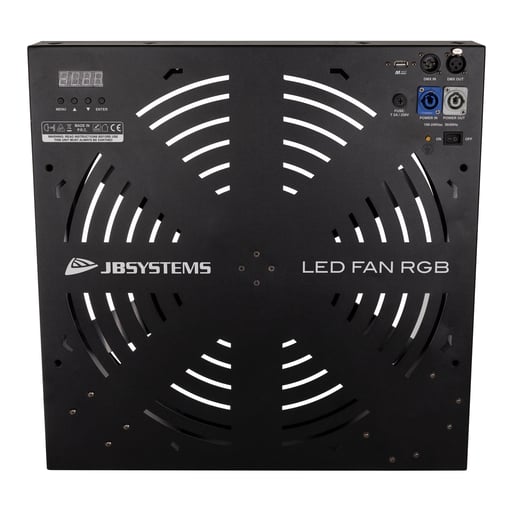

- 4digit LED-display for easy menu navigation.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 50 x 50 x 8.5 |
|---|---|
| General : Weight (kg) | 9.4 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 100 |
| General : Color | black |
| General : Display | LED |
| General : Fixation | optional omega bracket |
| General : IP rating | indoor |
| Control : Modes | standalone sound, standalone automatic, Master/Slave |
| Control : Protocol | DMX, Wireless DMX |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | 4 |
| Control : maximum DMX channels | 11 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | RGB |
| Light : mix colors | No |
| Light : max. refresh rate (kHz) | No |

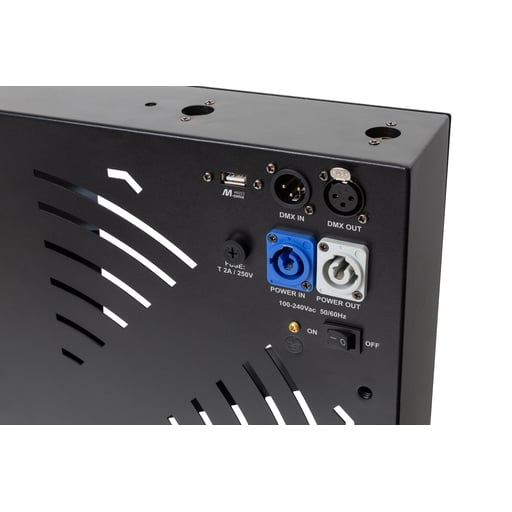

| Connections : input | 3 pin XLR, wireless DMX optional, PowerCon® or compatible |
| Connections : output | 3 pin XLR, PowerCon® or compatible |
| Brand | JB SYSTEMS |
| EANCode | 5420025662130 |
Manual & Downloads
Manual & Downloads
 LED FAN RGB - Manual EN Size: (1.35 MB) |
LED FAN RGB - Manual V1.0 English |
| LED FAN RGB - Manual NL Size: (1.35 MB) |
LED FAN RGB - Manual V1.0 Nederlands |
| LED FAN RGB - Manual FR Size: (1.39 MB) |
LED FAN RGB - Manual V1.0 Français |
| LED FAN RGB - Manual DE Size: (1.35 MB) |
LED FAN RGB - Manual V1.0 Deutsch |
| LED FAN RGB - Manual ES Size: (1.32 MB) |
LED FAN RGB - Manual V1.0 Español |
| LED FAN RGB - EC Declaration Size: (444.88 KB) |
LED FAN RGB - EC Declaration of Conformity |
 LED FAN RGB - Chromateq Profile Size: (2.8 KB) |
LED FAN RGB - Chromateq Profile |
| LED_FAN_RGB PDF leaflet Deutsch Size: (1.68 MB) |
PDF_LEAFLET_LED_FAN_RGB_B06213_de.pdf |
| LED_FAN_RGB PDF leaflet English Size: (1.68 MB) |
PDF_LEAFLET_LED_FAN_RGB_B06213_en.pdf |
| LED_FAN_RGB PDF leaflet Français Size: (1.69 MB) |
PDF_LEAFLET_LED_FAN_RGB_B06213_fr.pdf |
| LED_FAN_RGB PDF leaflet Nederlands Size: (1.68 MB) |
PDF_LEAFLET_LED_FAN_RGB_B06213_nl.pdf |
