Details
Details

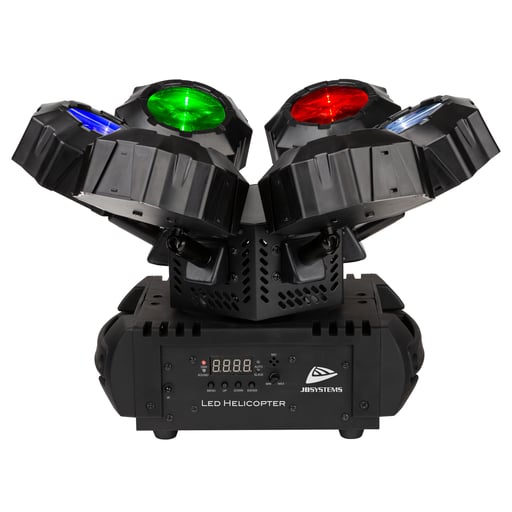

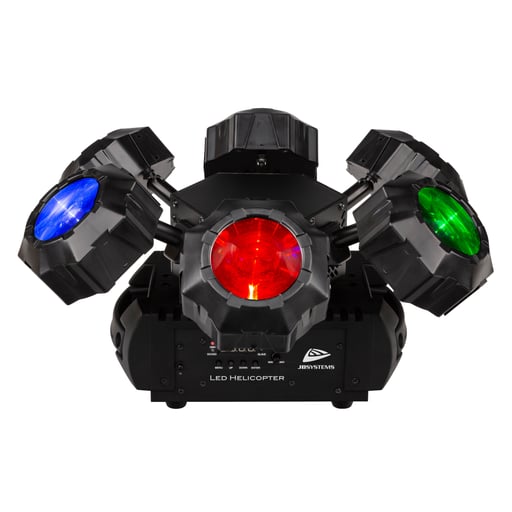

- Rotating beam effect with 6x 8W RGBW projectors.
- The 6 LED projectors can be pointed in different directions to create amazing chaotic beam effects!
- The unit has different working modes:
- DMX controlled via 3 or 11 channels.
- Standalone with sound activated (internal microphone) or automatic build-in programs.
- Standalone, controlled via the IR remote controller (included)
- Several units can be connected in master/slave to create wonderful synchronized shows.
- 3-digit LED display for easy menu navigation.
- USB-connector for wireless DMX control by an optional Briteq® WTR-DMX dongle.
- IEC power in/out can be used to easily link several units.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 39 x 36 x 24 |
|---|---|
| General : Weight (kg) | 4.16 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 60 |
| General : Color | black |
| General : Display | LED |
| General : IP rating | indoor |
| Control : Modes | standalone fixed, standalone sound, remote, manual, Master/Slave |
| Control : Protocol | DMX, Wireless DMX |
| Control : Type included remote | IR |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | 3 |
| Control : maximum DMX channels | 11 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | RGBW |
| Light : mix colors | No |
| Light : min. beam angle (°) | 7 |
| Light : max. refresh rate (kHz) | No |
| Connections : input | 3 pin XLR, wireless DMX optional, IEC |
| Connections : output | 3 pin XLR, IEC |
| Brand | JB SYSTEMS |
| EANCode | 5420025662031 |
Manual & Downloads
Manual & Downloads
 LED HELICOPTER Manual EN Size: (1.7 MB) |
LED HELICOPTER Manual V1.1 English |
| LED HELICOPTER Manual NL Size: (1.71 MB) |
LED HELICOPTER Manual V1.1 Nederlands |
| LED HELICOPTER Manual FR Size: (1.78 MB) |
LED HELICOPTER Manual V1.1 Français |
| LED HELICOPTER Manual DE Size: (1.74 MB) |
LED HELICOPTER Manual V1.1 Deutsch |
| LED HELICOPTER Manual ES Size: (1.74 MB) |
LED HELICOPTER Manual V1.1 Español |
| LED_HELICOPTER PDF leaflet Deutsch Size: (1.13 MB) |
PDF_LEAFLET_LED_HELICOPTER_06203_de.pdf |
| LED_HELICOPTER PDF leaflet English Size: (1.13 MB) |
PDF_LEAFLET_LED_HELICOPTER_06203_en.pdf |
| LED_HELICOPTER PDF leaflet Français Size: (1.14 MB) |
PDF_LEAFLET_LED_HELICOPTER_06203_fr.pdf |
| LED_HELICOPTER PDF leaflet Nederlands Size: (1.13 MB) |
PDF_LEAFLET_LED_HELICOPTER_06203_nl.pdf |
