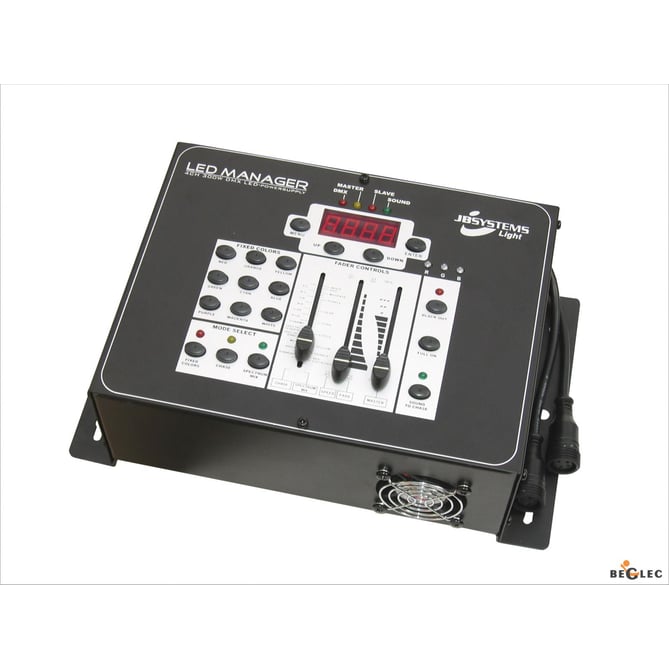

LED MANAGER

Details

Extremely versatile power supply for all kinds of passive RGB LED-projectors.
Different standalone working modes:
Hold mode: Instant access to 9 pre-programmed colors
Static chase mode: 12 different color chases with manual speed control
Sound chase mode: 12 different color chases with audio triggering
Spectrum mix: 32 different spectrum mix colors, including nice color fades
Adjustable speed and dimming with faders
Slow color fades with adjustable fade time
Blackout and 'Full on' function
All functions can be controlled directly on the on the LED-Manager or by the optional LEDCON-01 remote.

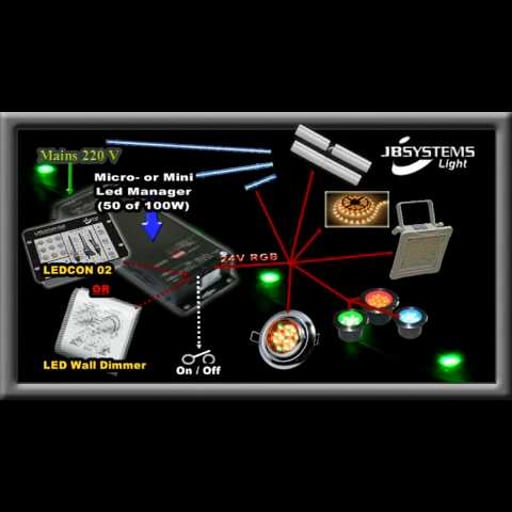

Several LED-Managers can be used in Master/slave mode to create high power, fully synchronized setups.
300Watt power: 2x 150W 24Vdc outputs. (R+G+B) with short-circuit protections
Built-in Clock with battery backup and NiMH battery charger (batteries not included)
3 independent programmable on/off timers. (start/stop 3 different color chases at 3 different times!)
Can be controlled by any standard DMX controller!
4 DMX channels needed: Ch1=red, Ch2=green, Ch3=Blue, Ch4=Dimmer/strobe.
Enclosure prepared for easy installing against the wall.
Fan cooling for extra reliability.

General : Dimensions (cm)	33 x 20.2 x 10.6 cm
General : Weight (kg)	6.6
General : Powerinput	AC 240V, 50Hz
General : Works on battery	N/A
General : Energy Label	No
General : Power consumption W	300
General : Color	black
General : Display	No
General : IP rating	indoor
Control : Protocol	N/A
Control : programmable	No
Control : upgradable software	No
Control : minimum DMX channels	N/A
Control : maximum DMX channels	4
Connections : output	N/A
Light : max. refresh rate (kHz)	N/A
Brand	JB SYSTEMS
EANCode	5420025649308

LED MANAGER Manual Size: (2.13 MB)	04930
