LED MARVEL

LED projector
SKU: B04543
EANCODE: 5420025645430

Details

Details

  • Thanks to its very nice and elegant design this LED projector fits in any interior (living room, bedroom, bar, lounge, restaurant, …)
  • On top of that it’s also perfect example of multi-functionality:
    • Can be used as sound activated “party light” (internal programs & chases)
    • The perfect “atmosphere” creator (slowly changing color fades)
    • Small but effective wall washer (color your walls!)
    • Several units can be controlled by a DMX-controller for synchronized operation.
  • It contains 6 individually controllable LED-panels for a maximum variety and impact of the effects.
  • A total of 216 leds (72 red + 72green + 72blue) guarantee excellent light output and good color mixing.
  • Static or sound activated programs (internal mic) with different modes

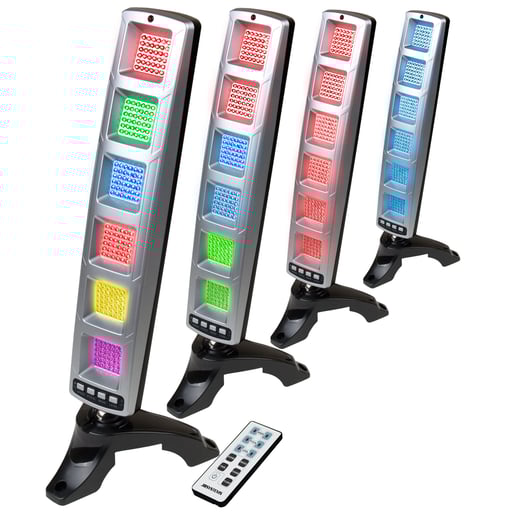

  • One unit can be used in standalone or several units can be connected together in master/slave to obtain wonderful synchronized effects!

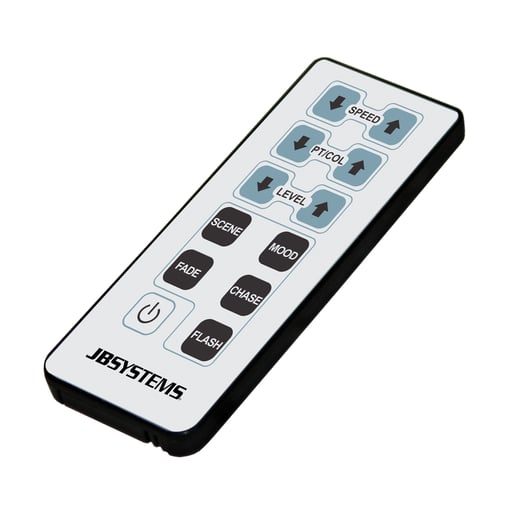

  • IR-remote control included
  • DMX-control possible: 21channels for full RGB control + chase presets with adjustable speed.

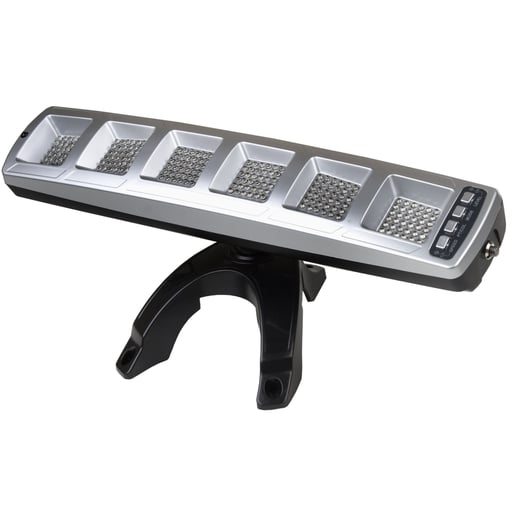

  • Multifunctional base:
    • Just put it on a table or horizontal surface
    • Fix it against a wall and point the unit in any direction
  • A separate 12Vdc power adapter is included for increased safety.

Technical Specifications

Technical Specifications

General : Dimensions (cm) 6.8 x 39 x 4.34 cm
General : Weight (kg) 0.6
General : Powerinput AC 100 - 240V, 50/60Hz
General : Energy Label No
General : Power consumption W 12
General : Color aluminium
General : Display none
General : IP rating indoor
Control : Protocol N/A
Control : Type included remote IR-remote
Control : programmable No
Control : upgradable software No
Control : minimum DMX channels N/A
Control : maximum DMX channels 21
Light : lamp socket none
Light : lamp LED
Light : colors Red, Green, Blue
Light : mix colors Yes
Light : max. refresh rate (kHz) No
Brand JB SYSTEMS
EANCode 5420025645430

Manual & Downloads

Manual & Downloads

View FileLED MARVEL Manual    Size: (2.94 MB) LED MARVEL Manual EN / FR / NL / DE / ES
View FileLED MARVEL EC Declaration    Size: (676.8 KB) LED MARVEL EC Declaration of Conformity
View FileLED_MARVEL PDF leaflet Deutsch    Size: (521.87 KB) PDF_LEAFLET_LED_MARVEL_04543_de.pdf
View FileLED_MARVEL PDF leaflet English    Size: (521.65 KB) PDF_LEAFLET_LED_MARVEL_04543_en.pdf
View FileLED_MARVEL PDF leaflet Français    Size: (523.89 KB) PDF_LEAFLET_LED_MARVEL_04543_fr.pdf
View FileLED_MARVEL PDF leaflet Nederlands    Size: (521.87 KB) PDF_LEAFLET_LED_MARVEL_04543_nl.pdf
