Details
Details

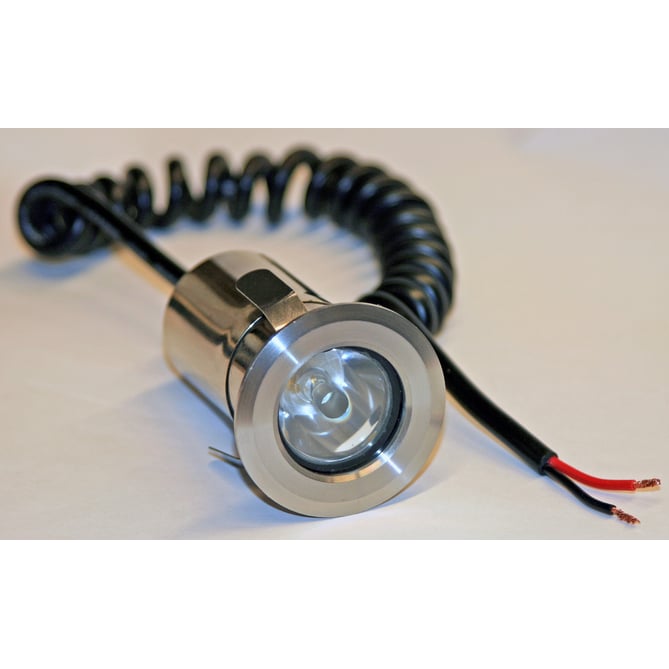

- Super bright LED projector
- Based on 1 Watt Luxeon LED
- Power consumption only 1,7 Watt
- Stainless steel flange
- IP68 waterproof nickel plated body
- Perfect for all indoor and outdoor applications like swimming pools, bathrooms, accent lighting for tables & objects, stairs, …
- Easy & flexible installation:
- 6 to 26Vac
- 9to 35Vdc (ex. LED-PSU-50W/24Vdc)
- cold white (4994) or blue (4995)
- NOTE: this product has IP65 rating for outdoor installation under normal conditions (not exposed to seawater).
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | dia 4.5 x 8.2 cm |
|---|---|
| General : Weight (kg) | 0.2 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Power consumption W | 1.7 |
| General : Color | aluminium |
| General : Display | none |
| General : IP rating | indoor, outdoor |
| Control : Protocol | N/A |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | Blue |
| Light : mix colors | No |
| Light : min. beam angle (°) | 10 |
| Light : max. beam angle (°) | 10 |
| Light : max. refresh rate (kHz) | No |
| Brand | JB SYSTEMS |
| EANCode | 5420025649957 |
Manual & Downloads
Manual & Downloads
 LED Nano Beam / Blue Manual Size: (721.54 KB) |
LED Nano Beam / Blue Manual |
| LED_NANO_BEAM_/ PDF leaflet Deutsch Size: (900.82 KB) |
PDF_LEAFLET_LED_NANO_BEAM_/_B04995_de.pdf |
| LED_NANO_BEAM_/ PDF leaflet English Size: (900.72 KB) |
PDF_LEAFLET_LED_NANO_BEAM_/_B04995_en.pdf |
| LED_NANO_BEAM_/ PDF leaflet Français Size: (902.11 KB) |
PDF_LEAFLET_LED_NANO_BEAM_/_B04995_fr.pdf |
| LED_NANO_BEAM_/ PDF leaflet Nederlands Size: (900.38 KB) |
PDF_LEAFLET_LED_NANO_BEAM_/_B04995_nl.pdf |
