Details
Details

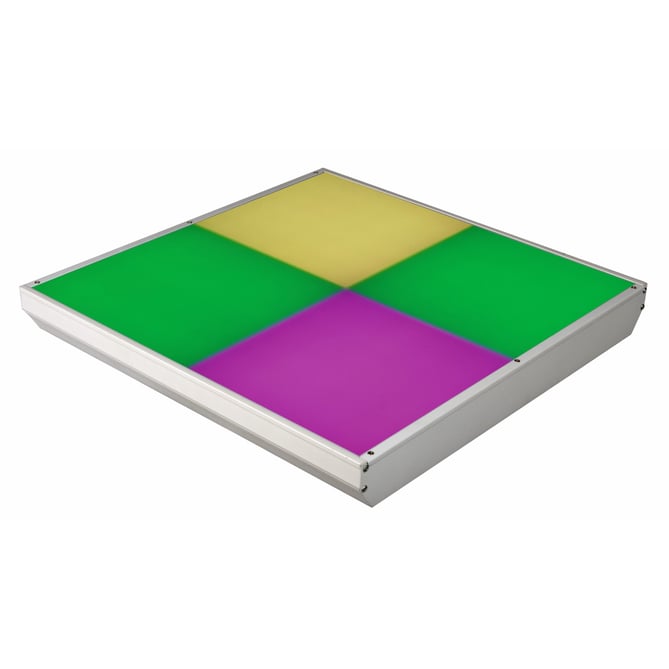

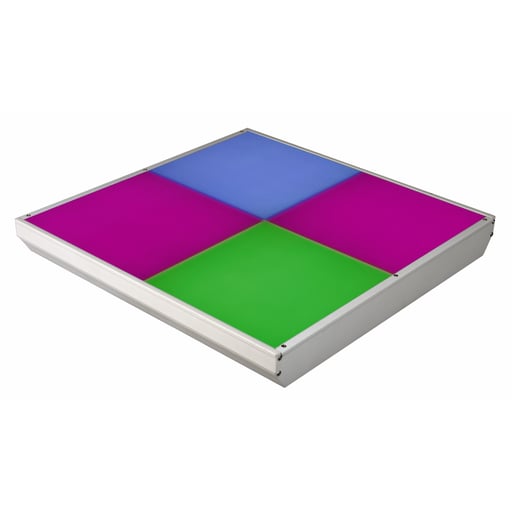

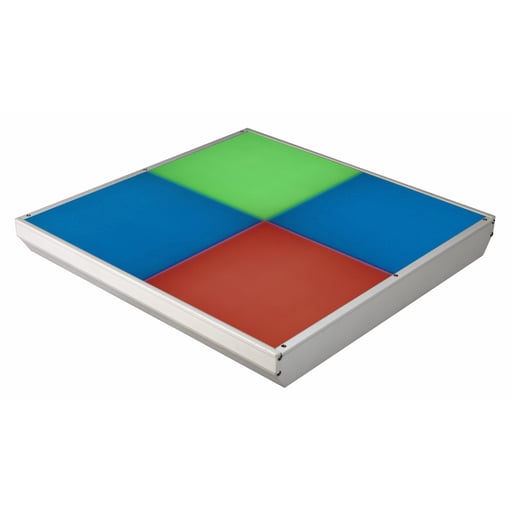

- LED QUADRO PANEL is a stylish light effect composed of 4 subpanels, each 24x24cm
- Perfect color mixing and big light output thanks to 144 tricolor SMD-LEDs
- You only need 4 LED QUADRO PANEL units to make a 4x4 matrix containing 16 independent LED panels!
- Perfect for different applications: architectural projects in modern interiors, stage entertainment, discotheques, lounge bars, …

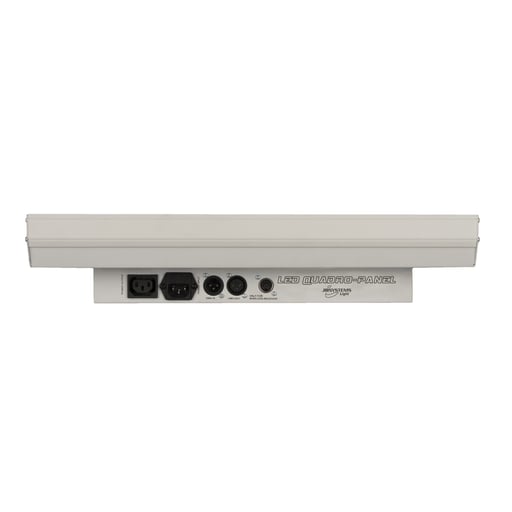

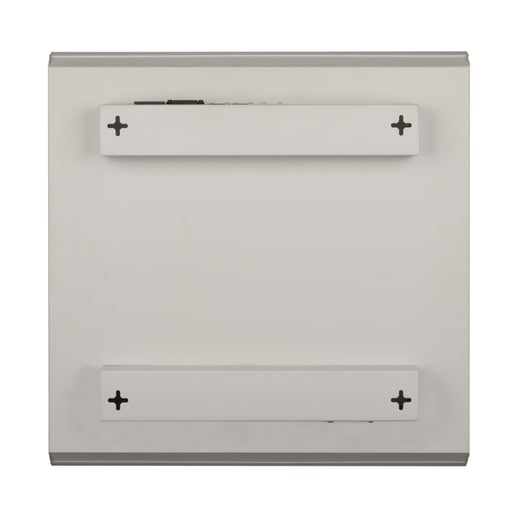

- Can be easily mounted against walls and ceilings: all controls and connections situated on the back panel for seamless integration in design interiors
- Different working modes:
- Preprogrammed color fades and chases at different speeds
- DMX: 1ch, 2ch, 16ch
- Master/slave mode with several preprogrammed patterns (sound or static)
- SMART-DMX (previously known as DMX-MSL mode)
- Optional wireless RF8-SET remote controller available
- Easy software updates via special software upgrade unit

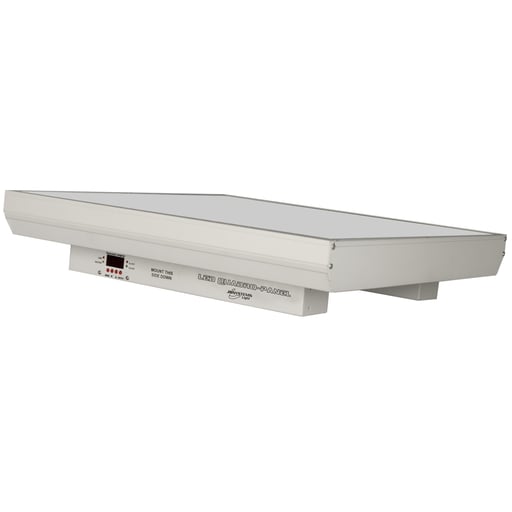

- 4-digit LED-display for easy menu navigation
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 50 x 50 x 10.1 |
|---|---|
| General : Weight (kg) | 5.86 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Power consumption W | 32 |
| General : Color | white |
| General : Display | LED |
| General : IP rating | outdoor |
| Control : Modes | N/A |
| Control : Protocol | N/A |
| Control : optional remote | RF8-SET |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 16 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | Red, Green, Blue |
| Light : mix colors | No |
| Light : functions | N/A |
| Light : max. refresh rate (kHz) | No |
| Connections : output | N/A |
| Brand | JB SYSTEMS |
| EANCode | 5420025649292 |
Manual & Downloads
Manual & Downloads
 LED QUADRO PANEL Manual Size: (1.7 MB) |
| LED QUADRO PANEL EC declaration Size: (570.57 KB) |
 LED QUADRO PANEL Firmware Size: (23.46 KB) |
