Old

Discontinued product

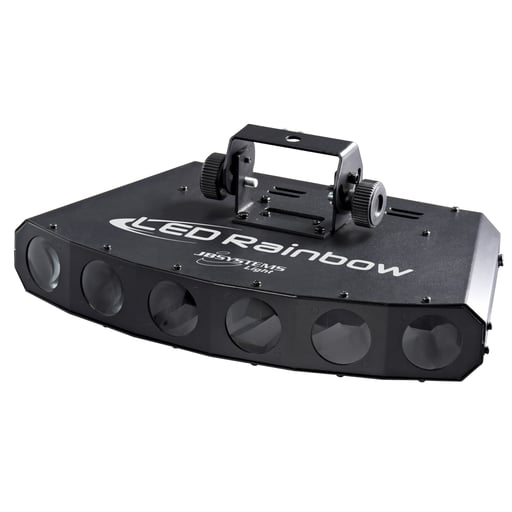

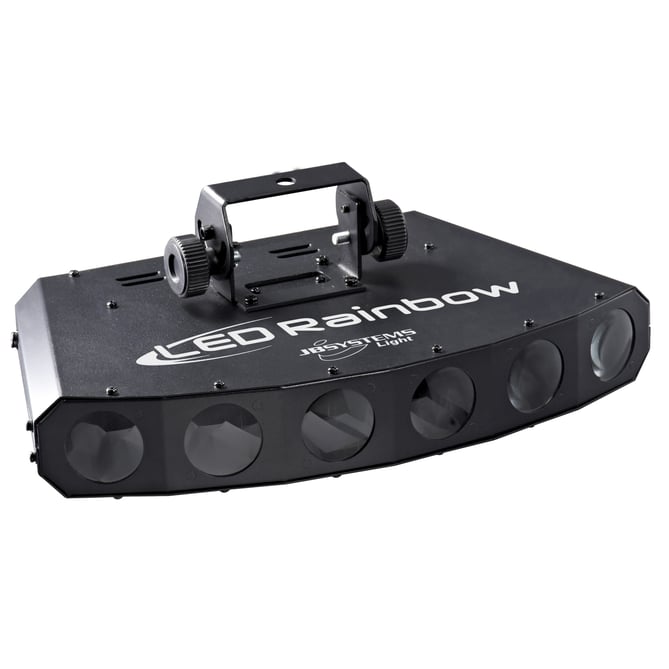

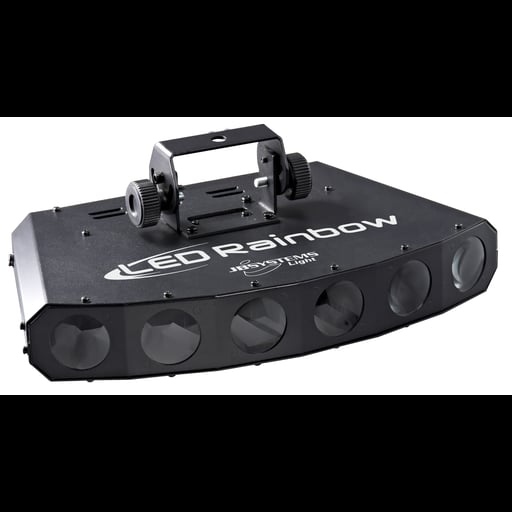

LED RAINBOW

A compact but powerful multi-beam LED-effect
SKU: B04169
EANCODE: 5420025641692

Details

Details

  • A compact but powerful multi-beam LED-effect!
  • Each of the 6 lenses contains a powerful 3Watt RGB LED.
  • Thanks to perfect color mixing the six beams can have any color you like!
  • Each 9° beam can be controlled individually to create an endless combination of customized effects.
  • Excellent built-in programs for wonderful, ever-changing, light shows:
    • Standalone: sound activated with internal mic
    • Master/slave: wonderful synchronized shows
    • SMART-DMX (previously known as DMX-MSL mode): thanks to this revolutionary new feature several LED Rainbow units, working in master/slave, can still be controlled by DMX! Even while connected in a DMX chain! (optional mini DMX splitter required)
    • DMX: 22 channels for full control or easy control using only 1 or 7 channels.
  • 2 optional remote controllers available:
    • CA-8: wired remote for improved master/slave control
    • RF-8 Set: wireless RF-remote for improved master/slave control
  • Uses six powerful 3Watt RGB LEDs:
    • Extremely brilliant beams compared to effects with halogen lamps
    • More dynamic effects compared to effects based on halogen lamps
    • No lamp replacements and very low power consumption
  • Mains IEC in/outputs for easy linking using optional IEC cables
  • Perfect for different applications: discos, clubs, mobile DJs, stage, ...

Technical Specifications

Technical Specifications

General : Dimensions (cm) 42.4 x 25.1 x 6.5 cm
General : Weight (kg) 3.44
General : Powerinput AC 100 - 240V, 50/60Hz
General : Works on battery N/A
General : Energy Label No
General : Power consumption W 39
General : Color black
General : Display none
General : Fixation optional standard clamp
General : IP rating indoor
Control : Protocol N/A
Control : optional remote CA-8, RF8-SET
Control : programmable No
Control : upgradable software No
Control : minimum DMX channels N/A
Control : maximum DMX channels 22
Light : lamp socket none
Light : lamp LED
Light : colors Red, Green, Blue
Light : mix colors No
Light : min. beam angle (°) 9
Light : max. beam angle (°) 9
Light : max. refresh rate (kHz) No
Brand JB SYSTEMS
EANCode 5420025641692

Manual & Downloads

Manual & Downloads

View FileLED RAINBOW Manual v1.05    Size: (3.09 MB) LED RAINBOW Manual v1.05
View FileLED RAINBOW EC declaration    Size: (570.29 KB) LED RAINBOW EC declaration
View FileLED_RAINBOW PDF leaflet Deutsch    Size: (1.02 MB) PDF_LEAFLET_LED_RAINBOW_04169_de.pdf
View FileLED_RAINBOW PDF leaflet English    Size: (1.02 MB) PDF_LEAFLET_LED_RAINBOW_04169_en.pdf
View FileLED_RAINBOW PDF leaflet Français    Size: (1.02 MB) PDF_LEAFLET_LED_RAINBOW_04169_fr.pdf
View FileLED_RAINBOW PDF leaflet Nederlands    Size: (1.02 MB) PDF_LEAFLET_LED_RAINBOW_04169_nl.pdf
