Old

Discontinued product

LED RF-CONTROL RGB

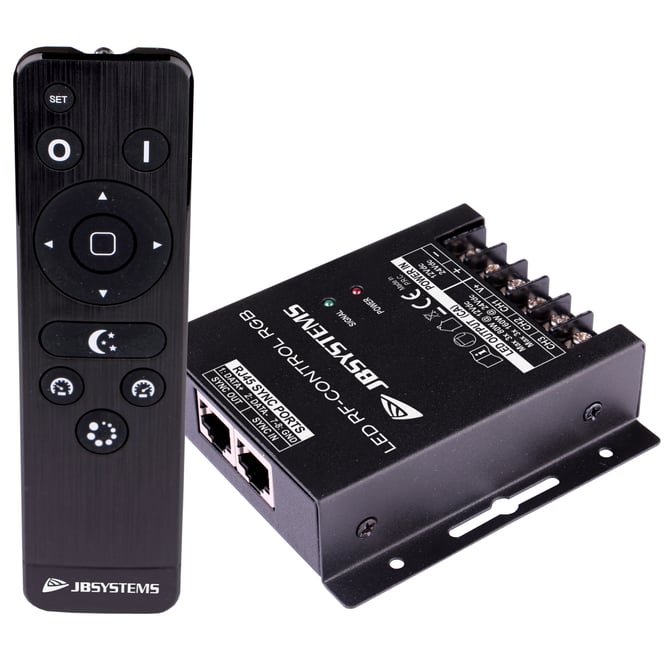

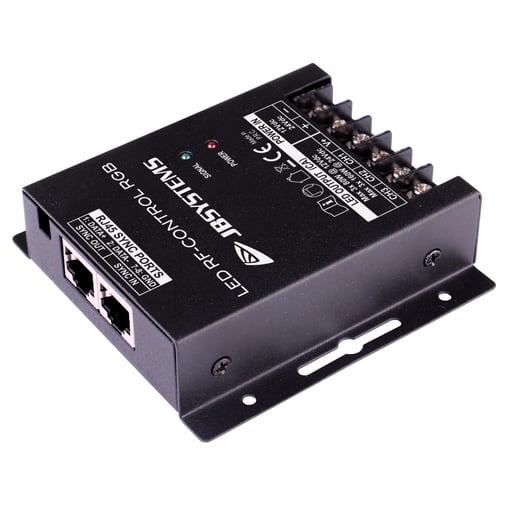

User-friendly 3channel controller for RGB LED-lighting (LED strips).
SKU: B05397
EANCODE: 5420025653978

Details

Details

  • User-friendly 3channel controller for RGB LED-lighting (LED strips)

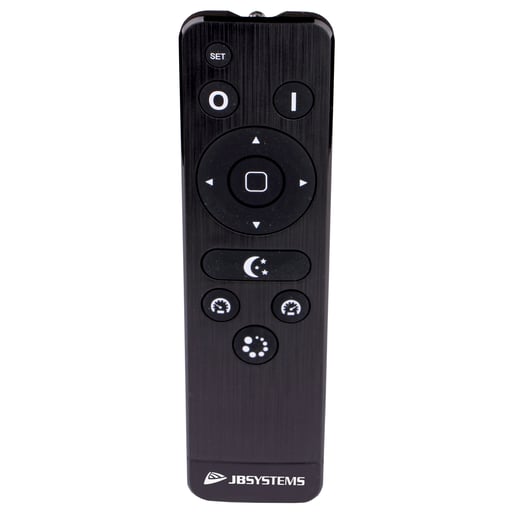

  • The stylish RF-remote has very easy-to-use features:
    • Radio frequency (433,92MHz): you don't have to point it to the receiver!
    • Remote on/off
    • Delay off: light turns off after 30seconds
    • Seamless 0% - 100% dimming + 4 preset levels (10, 30, 70, 100%)
    • “Night light" button (adjustable output: 1% to 10%)
    • 3 working modes: static or blink / wave with adjustable speed
  • Several controllers can work together in perfect sync.
  • Each receiver can be programmed for use with up to 3 RF-remotes.
  • PWM technology for smooth and flicker-free dimming from 0% to 100%

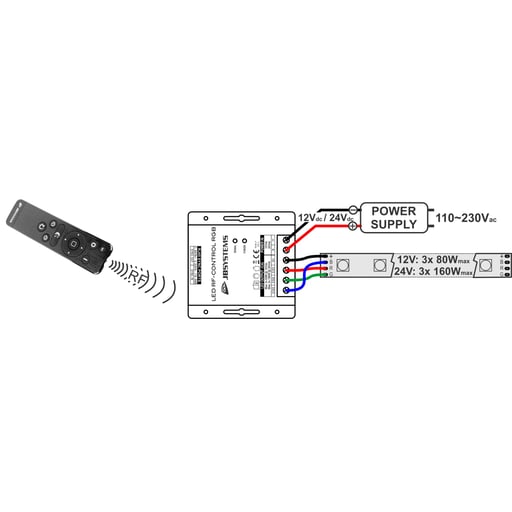

  • Connects directly to RGB flexible LED-strips and other constant voltage LED-lights.
  • Max. output power: 240Watt @12V  *   480Watt @ 24V
  • Perfect for use in LED installations for homes, shops, …

Technical Specifications

Technical Specifications

General : Dimensions (cm) 5 x 4 x 2 cm
General : Weight (kg) 0.25
General : Powerinput 24Vdc, 12Vdc
General : Energy Label No
General : Power consumption W 480
General : Color black
General : Display none
General : IP rating indoor
Control : programmable No
Control : upgradable software No
Light : max. refresh rate (kHz) 2
Brand JB SYSTEMS
EANCode 5420025653978

Manual & Downloads

Manual & Downloads

View FileLED RF-CONTROL RGB - Manual English    Size: (1.59 MB) LED RF-CONTROL RGB - Manual English
View FileLED RF-CONTROL RGB - Manual Deutsch    Size: (1.15 MB) LED RF-CONTROL RGB - Manual Deutsch
View FileLED RF-CONTROL RGB - Manual Français    Size: (2.05 MB) LED RF-CONTROL RGB - Manual Français
View FileLED RF-CONTROL RGB - Manual Nederlands    Size: (1.68 MB) LED RF-CONTROL RGB - Manual Nederlands
View FileLED RF-CONTROL RGB - Manual Español    Size: (1.73 MB) LED RF-CONTROL RGB - Manual Español
View FileLED_RF-CONTROL_ PDF leaflet Deutsch    Size: (823.59 KB) PDF_LEAFLET_LED_RF-CONTROL__05397_de.pdf
View FileLED_RF-CONTROL_ PDF leaflet English    Size: (822.9 KB) PDF_LEAFLET_LED_RF-CONTROL__05397_en.pdf
View FileLED_RF-CONTROL_ PDF leaflet Français    Size: (824.17 KB) PDF_LEAFLET_LED_RF-CONTROL__05397_fr.pdf
View FileLED_RF-CONTROL_ PDF leaflet Nederlands    Size: (822.92 KB) PDF_LEAFLET_LED_RF-CONTROL__05397_nl.pdf
