- A reliable LED-based black light with many advantages compared to a traditional UV lamp!
- DMX control via 1, 2 or 3 channels

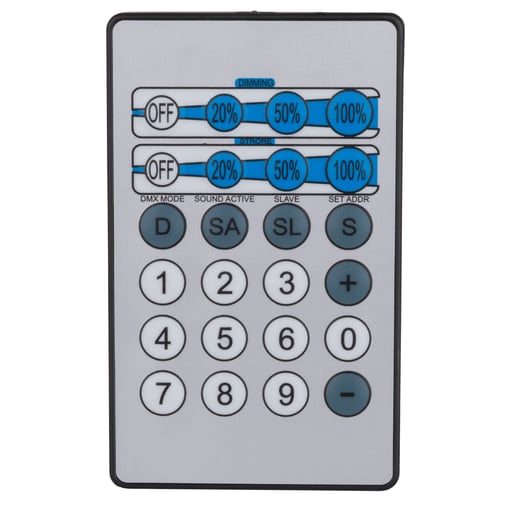

- IR-remote control included for easy operation!
- Instant reaction. Can even be dimmed from 0% to 100%
- Sound activated mode with internal mic.
- Variable Strobe
- Master/slave mode for bigger venues
- No fragile, easy breakable lamps!
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 105 x 9.5 x 9 |
|---|---|
| General : Weight (kg) | 2.72 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Power consumption W | 40 |
| General : Color | black |
| General : Display | LED |
| General : IP rating | indoor |
| Control : Protocol | N/A |
| Control : Type included remote | Wireless IR remote |
| Control : programmable | No |
| Control : upgradable software | Yes |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 3 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | UV |
| Light : mix colors | No |
| Light : max. refresh rate (kHz) | No |
| Connections : input | 3 pin XLR, IEC |
| Brand | JB SYSTEMS |
| EANCode | 5420025638067 |
Manual & Downloads
Manual & Downloads
 LED UV-BAR Manual EN Size: (1.38 MB) |
LED UV-BAR Manual English |
| LED UV-BAR Manual NL Size: (1.24 MB) |
LED UV-BAR Manual Nederlands |
| LED UV-BAR Manual FR Size: (1.24 MB) |
LED UV-BAR Manual Français |
| LED UV-BAR Manual DE Size: (1.24 MB) |
LED UV-BAR Manual Deutsch |
| LED UV-BAR Manual ES Size: (1.18 MB) |
LED UV-BAR Manual Español |
| LED UV-BAR EC Declaration Size: (634.87 KB) |
LED UV-BAR EC Declaration of Conformity |
 LED UV-BAR Chromateq fixture files Size: (1.9 KB) |
LED UV-BAR Chromateq fixture files |
| LED_UV-BAR PDF leaflet Deutsch Size: (690.46 KB) |
PDF_LEAFLET_LED_UV-BAR_03806_de.pdf |
| LED_UV-BAR PDF leaflet English Size: (689.49 KB) |
PDF_LEAFLET_LED_UV-BAR_03806_en.pdf |
| LED_UV-BAR PDF leaflet Français Size: (691.71 KB) |
PDF_LEAFLET_LED_UV-BAR_03806_fr.pdf |
| LED_UV-BAR PDF leaflet Nederlands Size: (690.02 KB) |
PDF_LEAFLET_LED_UV-BAR_03806_nl.pdf |
