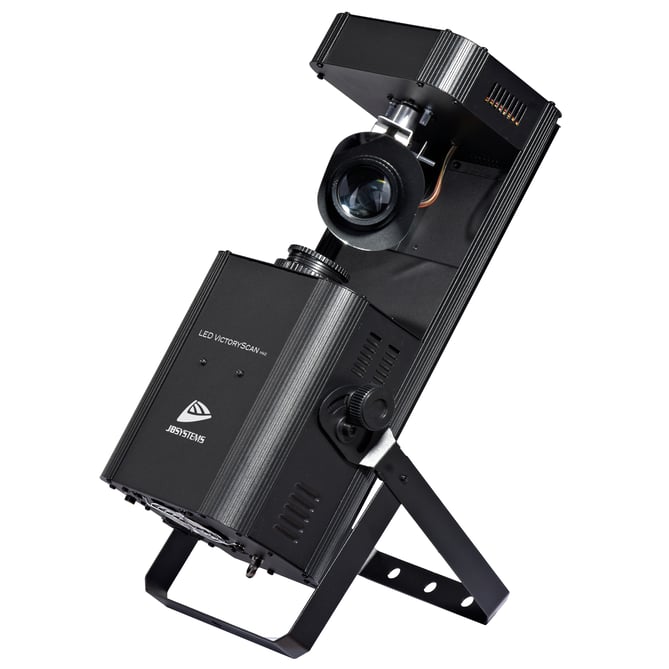

- The new (more powerful!) LED version of the extremely popular “WINNER II” and “ROVER” effects!
- Powerful LED scanner / barrel effect for Pro DJ, renting companies and discotheques
- Based on the very latest 60WATT LED technology from CREE:
- Big light output and sharp gobos, thanks to excellent optics
- Very low power consumption, only 105W (money saving!)
- Extremely brilliant colors compared to units with halogen lamps
- No lamp replacements and virtually no heat production
- 0-100% dimming and ultra fast strobe function
- 8 fixed gobos + open, equipped with gobo shaking feature
- Independent color wheel (8 colors + white)
- Excellent built-in programs for wonderful, ever changing, light shows:
- DMX-control: 1, 7 or 8 channels (iSolution compatible)
- Standalone: sound activated with internal mic
- Master/slave: wonderful synchronized shows in standalone mode
- SMART-DMX (previously known as DMX-MSL mode): thanks to this revolutionary new feature several units, working in master/slave, can still be controlled by 1 or 4 DMX-channels! (even while connected in a DMX chain, optional mini DMX splitter required)
- Optional remote controllers available: wired CA-8 or wireless RF8-SET
- Easy software updates via special software upgrade unit
- LED-display for easy menu navigation
- Beam angle = 17°
- Both LED SPINNER and LED VICTORYSCAN MK2 can be linked together in a Master/Slave configuration.
Technical Specifications
Technical Specifications

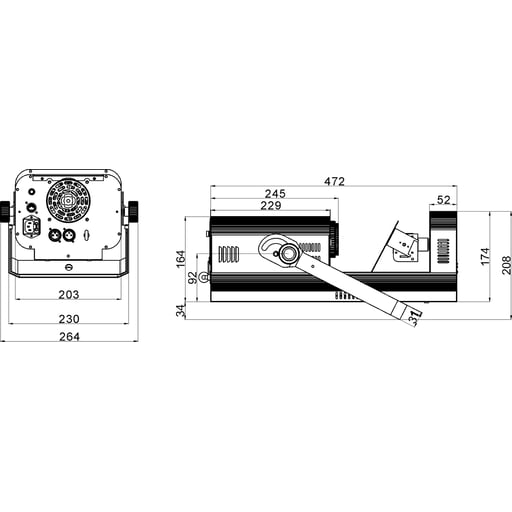

| General : Dimensions (cm) | 47,2 x 26,4 x 20,8 cm |
|---|---|
| General : Weight (kg) | 7.32 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Works on battery | N/A |
| General : Energy Label | N/A |
| General : Power consumption W | 105 |
| General : Color | black |
| General : Display | LED |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Protocol | N/A |
| Control : optional remote | CA-8 or RF8-SET |
| Control : programmable | No |
| Control : upgradable software | Yes |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 8 |
| Light : lamp socket | none |
| Light : lamp | LED |
| Light : colors | Red, Green, Blue, White |
| Light : mix colors | No |
| Light : fixed gobos | 9 |
| Light : min. beam angle (°) | 17 |
| Light : max. beam angle (°) | 17 |
| Light : max. refresh rate (kHz) | No |
| Connections : input | 3 pin XLR, jack, IEC |
| Connections : output | 3 pin XLR |
| Brand | JB SYSTEMS |
| EANCode | 5420025640480 |
Manual & Downloads
Manual & Downloads
 LED VICTORYSCAN Mk2 Manual Size: (2.54 MB) |
LED VICTORYSCAN Mk2 Manual EN / FR / NL / DE / ES / PT |
| LED VICTORYSCAN EC Declaration Size: (569.91 KB) |
LED VICTORYSCAN EC Declaration of Conformity |
 LED VICTORYSCAN Avolites Profile Size: (1.23 KB) |
LED VICTORYSCAN Avolites Profile |
| LED_VICTORYSCAN PDF leaflet Deutsch Size: (973.79 KB) |
PDF_LEAFLET_LED_VICTORYSCAN_04054_de.pdf |
| LED_VICTORYSCAN PDF leaflet English Size: (973.07 KB) |
PDF_LEAFLET_LED_VICTORYSCAN_04054_en.pdf |
| LED_VICTORYSCAN PDF leaflet Français Size: (975.69 KB) |
PDF_LEAFLET_LED_VICTORYSCAN_04054_fr.pdf |
| LED_VICTORYSCAN PDF leaflet Nederlands Size: (973.35 KB) |
PDF_LEAFLET_LED_VICTORYSCAN_04054_nl.pdf |
