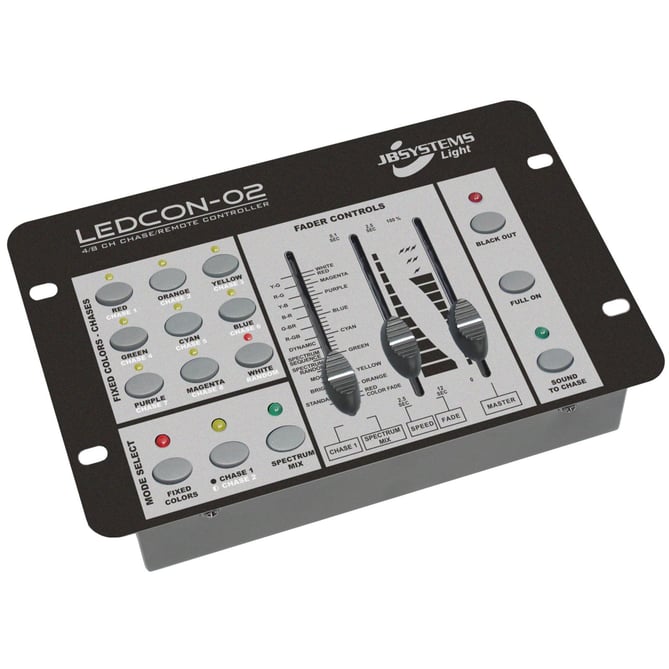

- LEDCON-02 is an allround LED remote control with extreme flexibility! LEDCON-02 has all the advantages of LEDCON-01 but it comes with an integrated LED light modulator (switchable: 4 or 8 channels) for LED PAR56 and LED PAR64 projectors! Now you will be able to control your LED PAR-projectors exactly the same way you did with your old halogen PAR-lamps when used with a traditional light modulator! But you can also do a lot more...
- Remote controller for:
- LED MANAGER
- LED SPOT & LED WASH
- LED BALL
- LED PAR56 and LED PAR64
- Different working modes:
- 4 or 8 channel LED light modulator with integrated, music controlled, chases.
- Fixed color mode: Instant access to 9 pre-programmed colors
- Static chase mode: 12 different color chases with manual speed control
- Sound chase mode: 12 different color chases with audio triggering
- Spectrum mix: 32 different spectrum mix colors, including color fades
- Adjustable speed and dimming with fader
- Full automatic DMX-addressing for up to 120 LED projectors!
- Blackout and 'Full on' function
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 21 x 14 x 4.6 cm |
|---|---|
| General : Weight (kg) | 0.93 |
| General : Powerinput | AC 240V, 50Hz |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Color | black |
| General : Display | none |
| General : RU | No |
| General : IP rating | indoor |
| Control : Protocol | N/A |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 8 |
| Connections : output | N/A |
| Brand | JB SYSTEMS |
| EANCode | 5420025649339 |
Manual & Downloads
Manual & Downloads
 LEDCON-02 Manual Size: (1.87 MB) |
|
| LEDCON-02 EC declaration Size: (568.25 KB) |
