Details
Details
- This LEDCON-XL is probably THE controller you were always dreaming of.
- Preprogrammed colors, fades and chases for almost ALL types of LED projectors
- 8 extra faders to control your light effects, foggers, moving heads with 4/5 MSL mode, etc.
- DMX input with merger function to connect any extra controller on the same DMX line

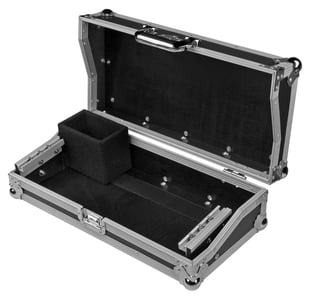

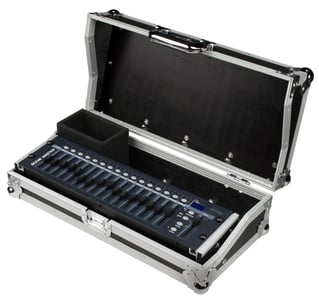

- Standard 19" rack format so the unit can be fixed in our Controller Case 3U
- Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE ! (Briteq® order code: B04645)
- The projector control section is a more performant version of our famous LEDCON-02 Mk2:
- 4 or 8 channel LED light modulator with integrated, speed or music controlled, chases.
- For each of the 4 or 8 channels, you can select the DMX setup of the projector you are using. (RGB, RGBW, RGBWA, etc.) so the unit becomes compatible with almost any LED projector that is available on the market !
- Each of these channels can be switched on/off if needed. (blackout for certain projectors)

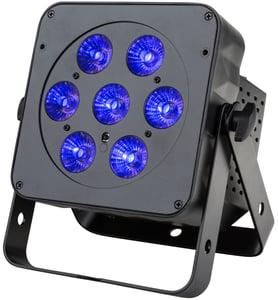

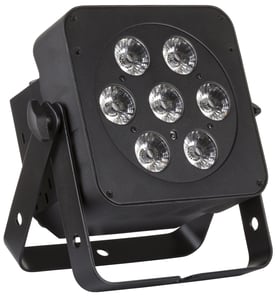

- Extra UV button for the use with for example 6-in1 LED projectors that include an UV LED
- Separate dimmer and strobe fader.
- Fixed color mode: Instant access to 9 pre-programmed colors with adjustable fade-over time
- Static chase mode: 12 different color chases with manual speed control
- Sound chase mode: 12 different color chases with audio triggering via the audio input or the integrated microphone
- Spectrum mix: 32 different spectrum mix colors, including color fades
- The extra fader section is comparable to our SCENEMASTER SCM-1:
- This makes it possible to control extra projectors, light effects, foggers, etc. via the same DMX line
- Perfect to control moving heads equipped with our unique SMART-DMX mode (previously known as DMX-MSL mode).
- You can use the faders as 8 individual DMX channels or create 8 scenes (combination of faders)
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 48 x 13 x 7,5 |
|---|---|
| General : Weight (kg) | 2.2 |
| General : Powerinput | AC 240V, 50Hz, External adaptor, 9Vdc, External adaptor, 12Vdc |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Color | black |
| General : Display | No |
| General : Fixation | 19" rack mountable |
| General : RU | No |
| General : IP rating | indoor |
| Control : Protocol | DMX, Wireless DMX |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Connections : input | 3 pin XLR, rca |
| Connections : output | 3 pin XLR, wireless DMX optional |
| Brand | JB SYSTEMS |
| EANCode | 5420025646611 |
Manual & Downloads
Manual & Downloads
 LEDCON-XL Manual V1.0 EN Size: (1.5 MB) |
LEDCON-XL Manual V1.0 English |
| LEDCON-XL Manual V1.0 DE Size: (1.06 MB) |
LEDCON-XL Manual V1.0 Deutsch |
| LEDCON-XL Manual V1.0 ES Size: (1.06 MB) |
LEDCON-XL Manual V1.0 Español |
| LEDCON-XL Manual V1.0 FR Size: (1.08 MB) |
LEDCON-XL Manual V1.0 Français |
| LEDCON-XL Manual V1.0 NL Size: (1.05 MB) |
LEDCON-XL Manual V1.0 Nederlands |
| LEDCON-XL Manual V2.1 EN Size: (1.41 MB) |
LEDCON-XL Manual V2.1 for firmware V1.4 - English |
| LEDCON-XL Manual V2.1 FR Size: (1.41 MB) |
LEDCON-XL Manual V2.1 for firmware V1.4 - Français |
| LEDCON-XL Manual V2.1 NL Size: (1.39 MB) |
LEDCON-XL Manual V2.1 for firmware V1.4 - Nederlands |
| LEDCON-XL Manual V2.1 DE Size: (1.4 MB) |
LEDCON-XL Manual V2.1 for firmware V1.4 - Deutsch |
| LEDCON-XL Manual V2.1 ES Size: (1.41 MB) |
LEDCON-XL Manual V2.1 for firmware V1.4 - Español |
| LEDCON-XL EC Declaration Size: (444.64 KB) |
LEDCON-XL EC Declaration of Conformity |
 LEDCON-XL Firmware update V1.4 Size: (219.95 KB) |
LEDCON-XL Firmware update V1.4 (2018-09-24) |
| LEDCON-XL PDF leaflet Deutsch Size: (996.87 KB) |
PDF_LEAFLET_LEDCON-XL_B04661_de.pdf |
| LEDCON-XL PDF leaflet English Size: (996.86 KB) |
PDF_LEAFLET_LEDCON-XL_B04661_en.pdf |
| LEDCON-XL PDF leaflet Français Size: (998.05 KB) |
PDF_LEAFLET_LEDCON-XL_B04661_fr.pdf |
| LEDCON-XL PDF leaflet Nederlands Size: (996.45 KB) |
PDF_LEAFLET_LEDCON-XL_B04661_nl.pdf |
Reviews & References
Customer Reviews (1)
- Nicht durchdachtReview by matthias
-
Sehr Sinnvolle Kombi, aber leider nicht zu Ende gedacht.Rating
Die Programme sind zu wenig abwechslungsreich, die Steuerung unnötig unfelxibel. Man kann Geräte ein- und ausschalten. Viel Sinnvoller wäre, man könnte sie einzeln auswählen, um underschiedliche Farben zuzuweisen.
Auch der Dimmerbereich ist zu unfexibel, es fehlt z.B. ein Sound Trigger.
[Translation]
Very useful combination, but unfortunately not thought through.
The programs are not varied enough and the controls are unnecessarily inflexible. You can turn devices on and off. It would make much more sense if you could select them individually to assign different colors.
The dimmer area is also too inflexible, for example there is no sound trigger.
[Answer]
As described in the product description and in the manual the unit has 12 different color chases, 12 different color chases with audio triggering, 32 different spectrum color mixes including fades, flash and blackout buttons, a speed fader, a dim fader, ... .
The LEDCON-XL does have a sound trigger !
If you want more flexibility we suggest DMX software or a full blown DMX controller.
The LEDCON-XL is ment to be a small, affordable controller for fixed installations, DJs, ... that are looking for a user-friendly controller that requires no programming at all. (Posted on 3/27/2024)
