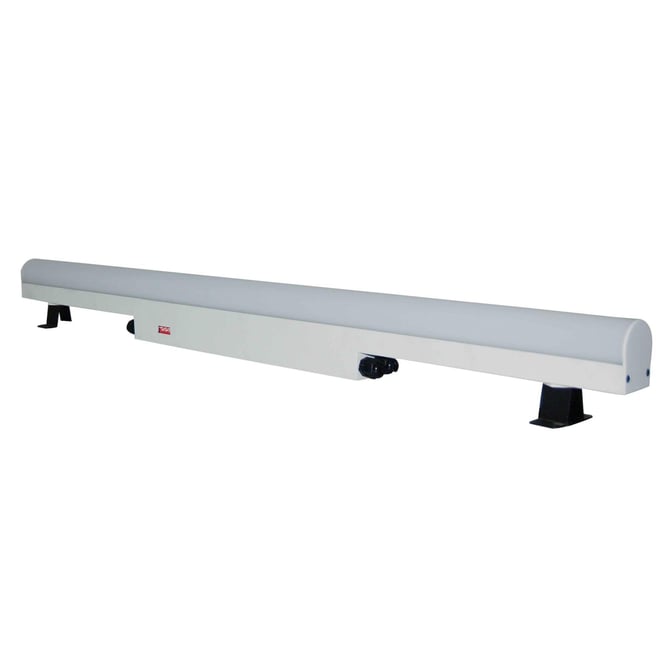

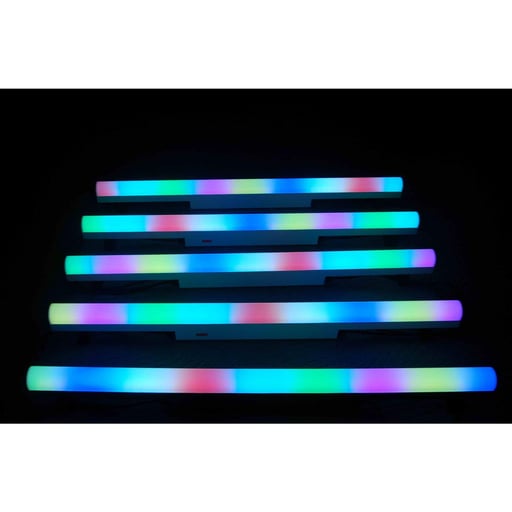

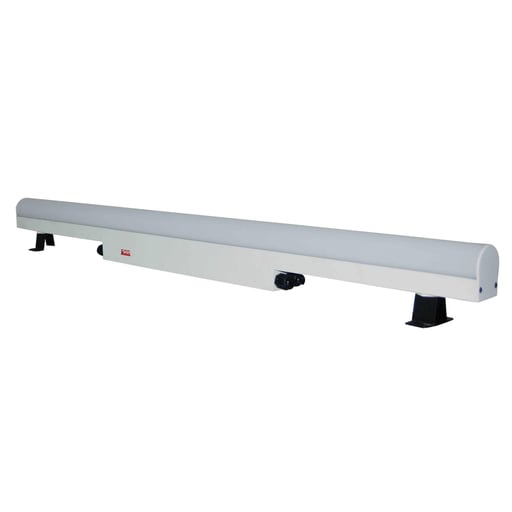

LEDPIPE RGB 230V

A complete JB Systems® LED PIPE 230V system contains the following components:

• 1 or more LED PIPE tubes (can work standalone or can be connected to the dedicated LED PIPE controller)
• 1 optional LED PIPE controller (controls the connected led tubes)
• Optional signal extension cables: 1m, 5m or 10m.

Description of the individual LED PIPE units:

• Each LED PIPE uses 144 high efficiency leds. (Red=48, Green=48, Blue=48)
• Each LED PIPE is split up in 16 sections for maximum flexibility while programming patterns!
• A chain of LED PIPE units can be used in 3 ways:
• Standalone without controller: many wonderful build-in patterns, also music activated!
• Standalone with controller: the optional LED PIPE controller can control up to 1000 tubes with additional flexibility.
• DMX control via controller: uses 3 DMX channels
• 4 program run modes: auto mode (adjustable speed), Sound mode, dB mode (VU-meter), hold mode.
• Lightweight polymer enclosure with high quality frost lens for indoor use.
• Specially shaped base makes it possible to hide all connection cables nicely behind the units!
• Internal power supply for easy daisy chaining of up to 200 units on only one 230V/16A wall socket!
• Can be easily fixed to walls and ceilings with the supplied wall brackets.
• Suitable for indoor use only.
• Extended life span: 50.000 - 100.000 hours
• Low power consumption: only 18W per tube!
• Optional signal extension cables: 1m, 5m or 10m available.
• Perfect for use in: retail stores, commercial displays, architectural lighting, indoor decoration, clubs, pubs, mobile DJs, trussing, ...
