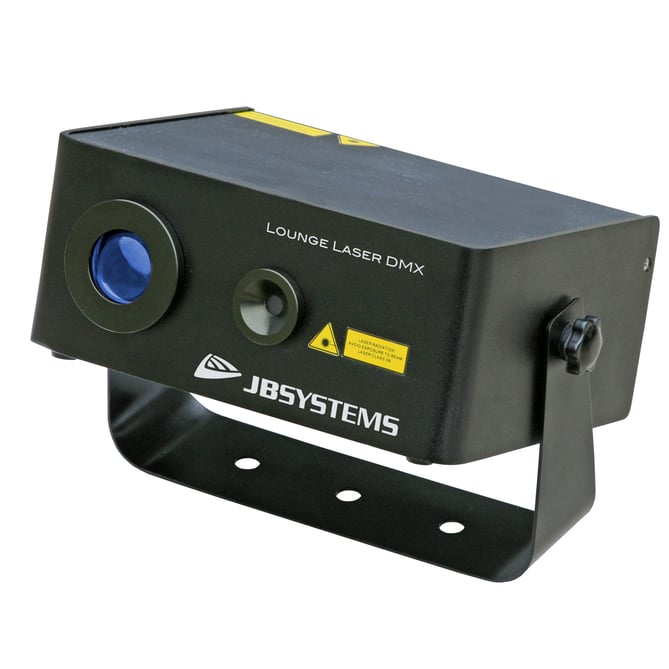

- The best of both worlds: this fantastic effect uses a 40mW green + 150mW red Class 3B laser in combination with a nice blue water wave LED projector.
- Using special grating technology the beams are split-up in a lot of separate laser beams pointing in all directions to create an amazing, room filling effect.
- Plug & play: no expensive controllers needed!
- Several working modes:
- DMX-control: 1channel for easy operation or 7 channels for full control
- Standalone: sound activated (internal mic) or automatic
- Master/slave: wonderful synchronized shows
- Separate rotation controls for lasers and LED projector.
- Strobe control for each laser + dimmer for the LED projector.
- Perfect for projections on walls and ceilings in bars, clubs, discotheques, hotels, etc
- Key actuated on/off switch for additional safety.
- Complies to EN/IEC 60825-1 Ed2, 2007-03 for Laser Safety.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 23.3 x 16.5 x 20 cm |
|---|---|
| General : Weight (kg) | 1.9 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 15 |
| General : Color | black |
| General : Display | LED |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Modes | standalone sound, standalone automatic, DMX, Master/Slave |
| Control : Protocol | DMX |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | 1 |
| Control : maximum DMX channels | 7 |
| Light : lamp socket | No |
| Light : lamp | No |
| Light : colors | Red, Green, Blue |
| Light : mix colors | No |
| Light : max. refresh rate (kHz) | No |
| Connections : input | 3 pin XLR, IEC |
| Connections : output | 3 pin XLR |
| Brand | JB SYSTEMS |
| EANCode | 5420025642217 |
Manual & Downloads
Manual & Downloads
 LOUNGE LASER DMX Manual Size: (1.3 MB) |
LOUNGE LASER DMX - Manual EN / FR / NL / DE / ES / PT |
| LOUNGE_LASER_DM PDF leaflet Deutsch Size: (1.42 MB) |
PDF_LEAFLET_LOUNGE_LASER_DM_B04221_de.pdf |
| LOUNGE_LASER_DM PDF leaflet English Size: (1.42 MB) |
PDF_LEAFLET_LOUNGE_LASER_DM_B04221_en.pdf |
| LOUNGE_LASER_DM PDF leaflet Français Size: (1.42 MB) |
PDF_LEAFLET_LOUNGE_LASER_DM_B04221_fr.pdf |
| LOUNGE_LASER_DM PDF leaflet Nederlands Size: (1.42 MB) |
PDF_LEAFLET_LOUNGE_LASER_DM_B04221_nl.pdf |
Reviews & References
Customer Reviews (1)
- ProgramReview by Lorenzo
-
I can't get the bigger LEDs to rotate but only the smaller LEDs rotate, do you have a link for how to do the programming? help me please. thank you very much have a nice day.Rating
[Answer]
In 1 channel DMX mode you can not separately control the rotation of the LED effect.
You need to set the unit in 7 channel mode... and than you can use channel 5 to change the rotation effect.
See page 7/48 of the manual.
If you need more assistance please contact your local JB Systems dealer.
This section of our website is a review section... not a support section. (Posted on 5/4/2023)
