Details
Details

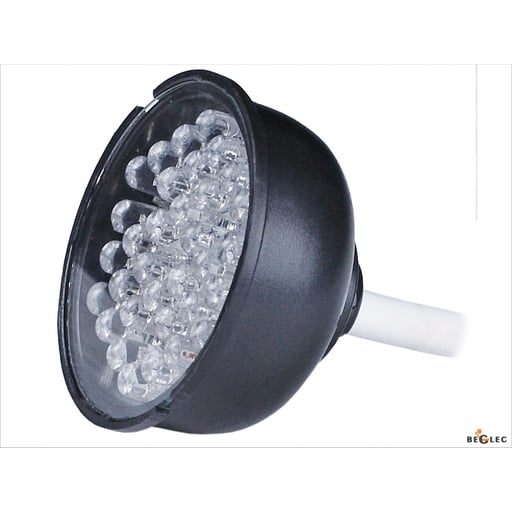

- RGB projector, based on 33 high power LEDs (11R, 11G, 11B)
- You can make any color you want!
- Perfect for all kinds of architectural applications in houses, pubs, stores, discotheques, ...
- Very low power consumption, only 5 Watt !
- Beam angle: 15°

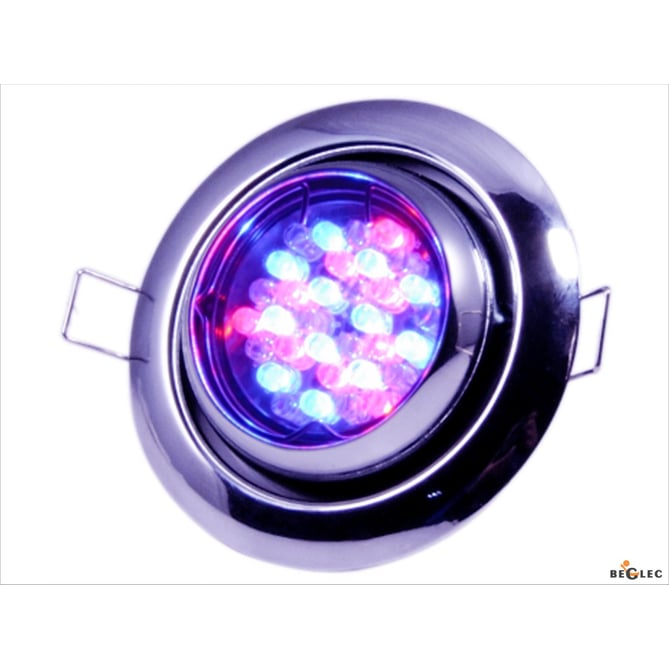

- Can be used in any MR16 armature (same size as standard halogen MR16 lamps)
- Can be used in standard PAR16 projectors
- To be used with a special LED MANAGER (or MINI LED MANAGER) power supply!
- Input = 4wire 24Vac connection
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | dia 5 x 2.6 cm |
|---|---|
| General : Weight (kg) | 0.1 |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Power consumption W | 5 |
| General : Color | black |
| General : Display | none |
| General : IP rating | indoor |
| Control : Modes | N/A |
| Control : Protocol | N/A |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | Red, Green, Blue |
| Light : mix colors | No |
| Light : functions | N/A |
| Light : min. beam angle (°) | 15 |
| Light : max. beam angle (°) | 15 |
| Light : max. refresh rate (kHz) | No |
| Connections : output | N/A |
| Brand | JB SYSTEMS |
| EANCode | 5420025649711 |
Manual & Downloads
Manual & Downloads
 LP-3315 Manual Size: (940.66 KB) |
