- A lightweight RGB LED projector to be used with the LED MANAGER (special DMX power supply)
- 81 LEDS (Red 26pcs + Green 26pcs + Blue 29pcs) behind a sturdy 15cm x 15cm cover.
- Two beam angles available:
- LP8115 = 15°
- LP8140 = 40°
- Can be built in any wall and/or ceiling

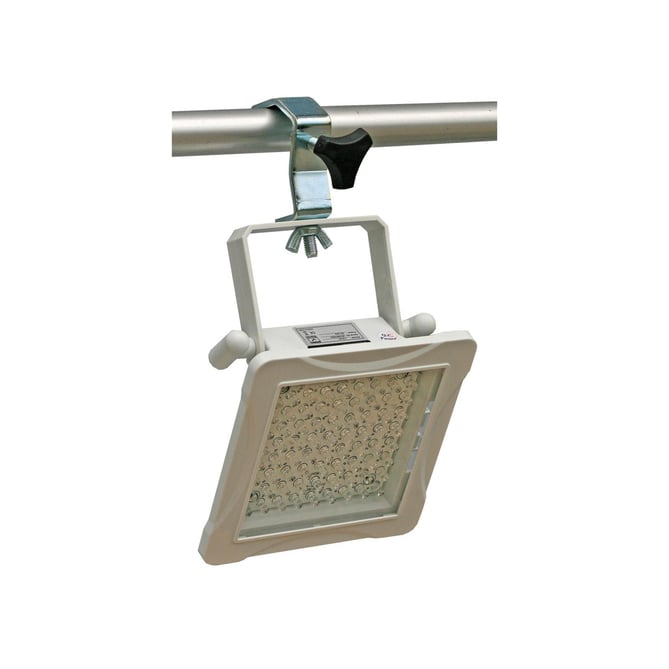

- Hanging bracket included for easy fixing on truss or any surface
- Very easy electrical 4-wire connection
- Low power consumption, only 10watts!
- No heat dissipation!

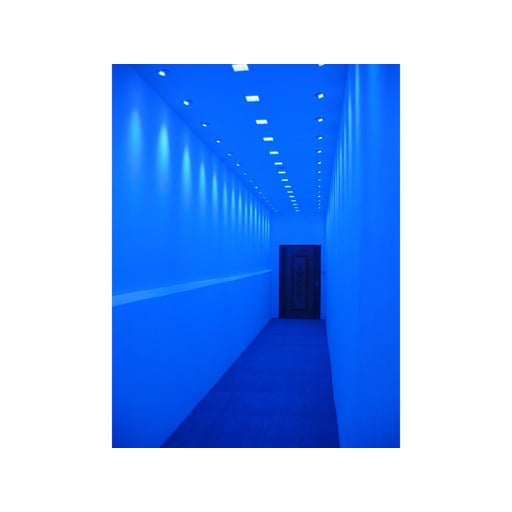

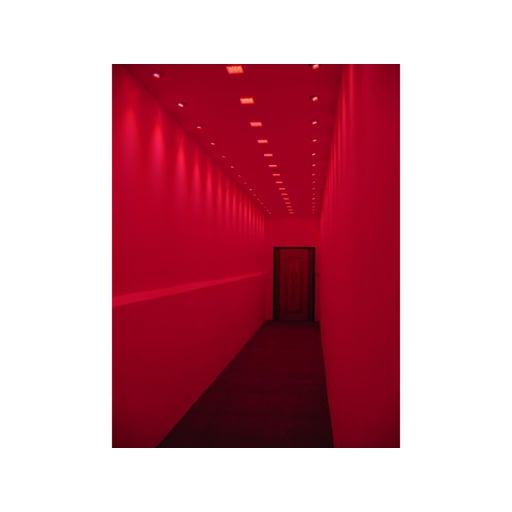

- Can be used in discotheques, pubs, lounges, buildings, parkings, homes, etc.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 14.6 x 14.6 x 5.5 cm |
|---|---|
| General : Weight (kg) | 0.25 |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Power consumption W | 10 |
| General : Color | white |
| General : Display | none |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Modes | N/A |
| Control : Protocol | N/A |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | Red, Green, Blue |
| Light : mix colors | No |
| Light : functions | N/A |
| Light : min. beam angle (°) | 40 |
| Light : max. beam angle (°) | 40 |
| Light : max. refresh rate (kHz) | No |
| Connections : output | N/A |
| Brand | JB SYSTEMS |
| EANCode | 5420025649742 |
Manual & Downloads
Manual & Downloads
 LP-8140 Manual Size: (1.81 MB) |
