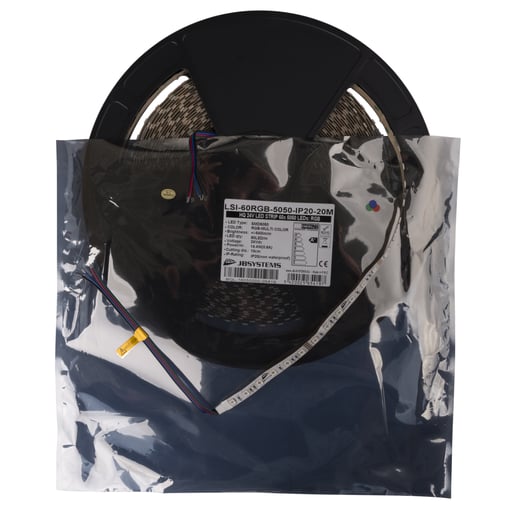

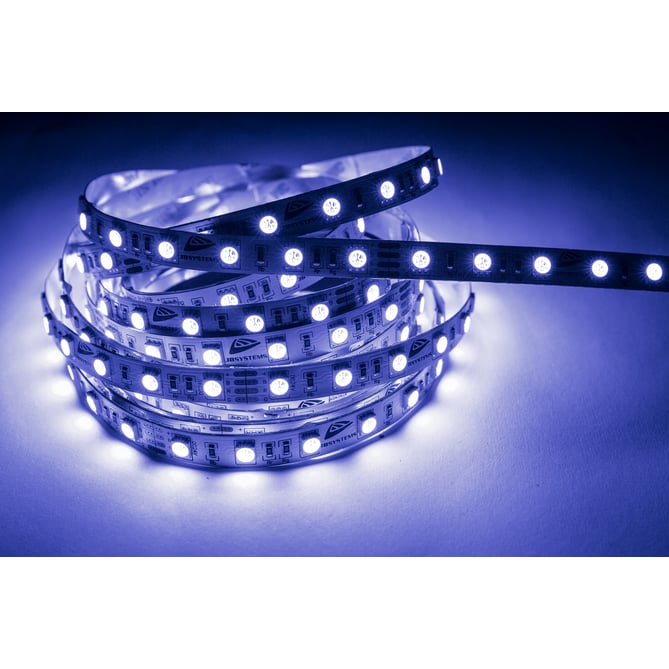

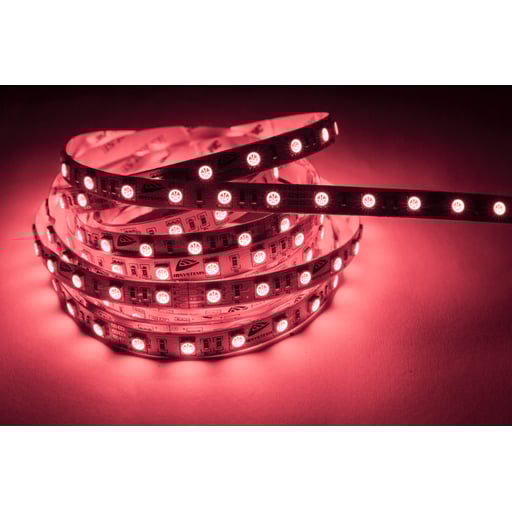

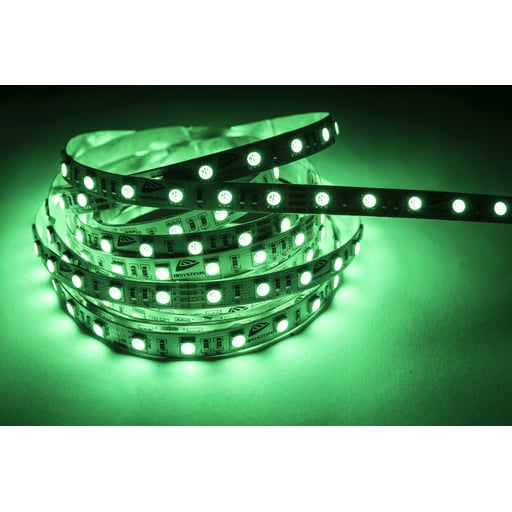

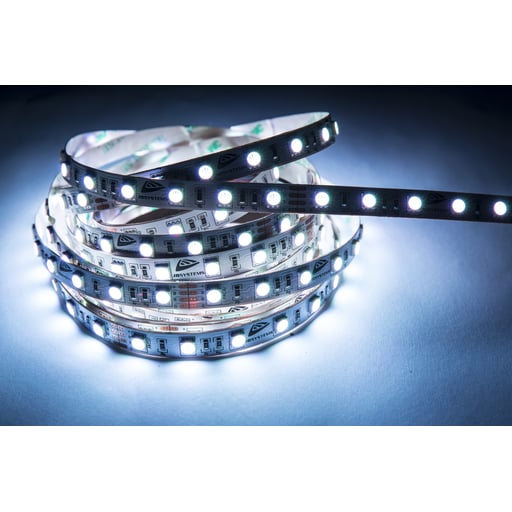

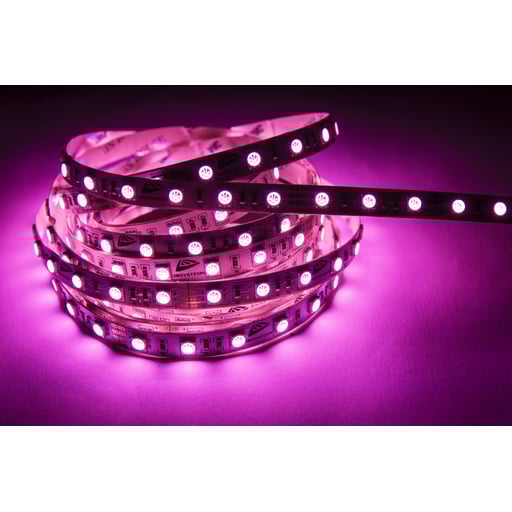

- Flexible “color changing" led strip containing 60 RGB leds/meter.
- IP20 rated, perfect for indoor use and installation in aluminium profiles (optionally available).

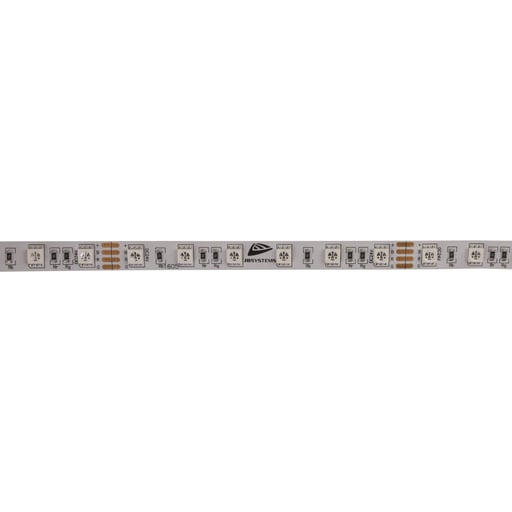

- Total length = 20m: can be easily cut to size on the markings: this version with 60LEDS/meter has markings for cutting every 10cm.
- Can be easily bended to follow the curves of any surface
- Equipped with self-adhesive 3M®-tape on the backside for easy installation on any surface
- High output and perfect color mixing thanks to the use of carefully selected 3in1 SMD LEDs ("Epistar" brand)
- 24V version: less current and less heat production for longer life!
- Wires on both sides for easy connection.

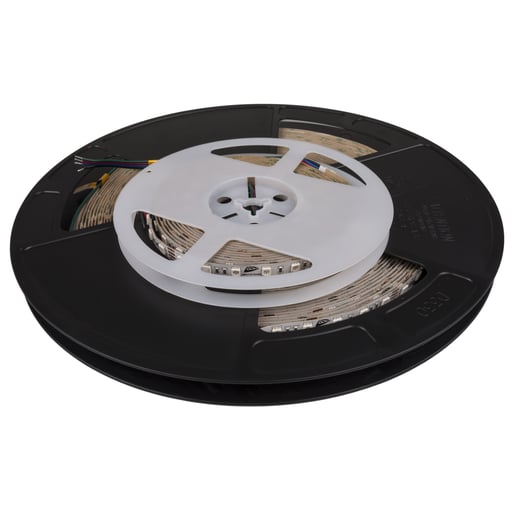

- 20m roll: faster installation and less waste pieces !
- LED Type: SMD5050 3in1 RGB
- LED Quantity: 60 LED / m
- Power consumption: 14.4 W /m
- Light output (white): 540 lm/m
- Cutting distance: 10 cm
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 2000 cm |
|---|---|
| General : Weight (kg) | 0.48 |
| General : Powerinput | 24Vdc |
| General : Works on battery | N/A |
| General : Energy Label | A+ |
| General : Color | white |
| General : Display | none |
| General : IP rating | indoor |
| Control : Protocol | N/A |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Light : lamp socket | none |
| Light : lamp | LED |
| Light : colors | RGB |
| Light : mix colors | Yes |
| Light : max. refresh rate (kHz) | No |
| Brand | JB SYSTEMS |
| EANCode | 5420025654197 |
