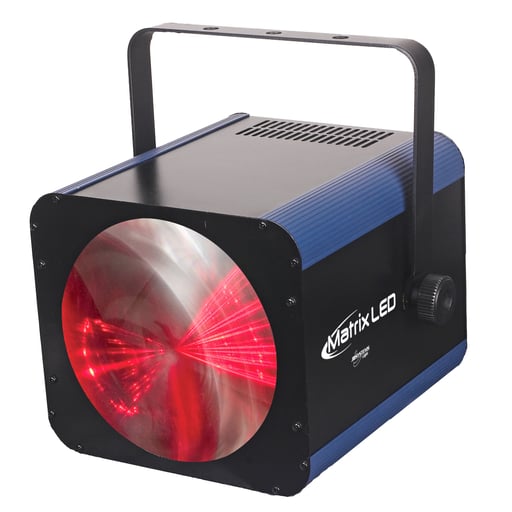

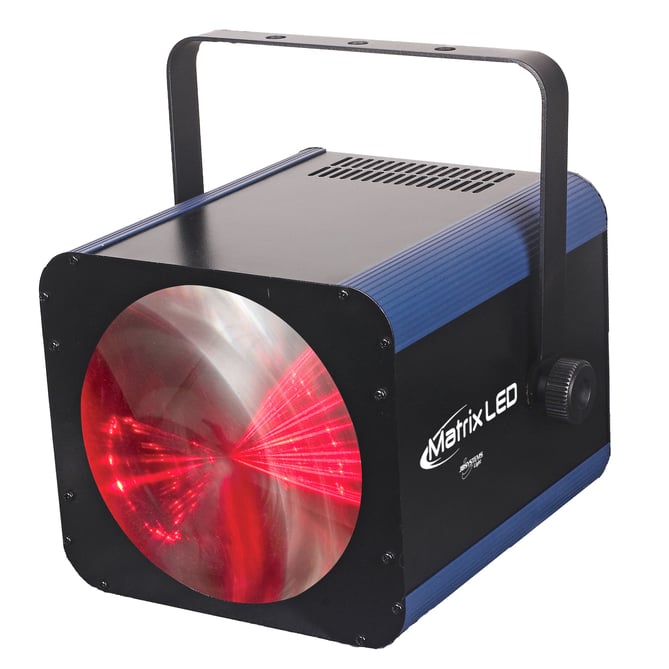

MATRIX LED

Details

A very powerful, mind blowing, LED effect.
Via DMX each of the 256 power LEDs(R=64 + G=64 + B=64 + W=64) can be controlled independently to obtain the most amazing effects!
Different working modes selectable via the 4-digit LED-display:
Standalone: sound activated shows with internal mic
Master/slave: wonderful synchronized shows
Optional CA-8 remote controller available
Different DMX modes:
Via 256 DMX channels you can create amazing text patterns, geometric figures, dynamic scanning/rolling/rotating and zooming effects!
The 1channel DMX mode makes operation extremely easy
With the 4 channel DMX mode gives you full control over all built-in programs.
Extremely brilliant colors compared to effects with halogen lamps
No lamp replacements!
Virtually no heat production and very low power consumption
Ultra fast strobe function
Equipped with big optical lens for maximum light output and wide 54° beam angle

General : Dimensions (cm)	24.2 x 27 x 21.5 cm
General : Weight (kg)	4
General : Powerinput	AC 100 - 240V, 50/60Hz
General : Works on battery	N/A
General : Energy Label	No
General : Power consumption W	36
General : Color	black
General : Display	LED
General : Fixation	optional standard clamp
General : IP rating	indoor
Control : Modes	N/A
Control : Protocol	N/A
Control : optional remote	CA-8
Control : programmable	No
Control : upgradable software	No
Control : minimum DMX channels	N/A
Control : maximum DMX channels	256
Light : lamp socket	none
Light : lamp	LED
Light : colors	Red, Green, Blue, White
Light : mix colors	No
Light : functions	N/A
Light : min. beam angle (°)	54
Light : max. beam angle (°)	54
Light : max. refresh rate (kHz)	N/A
Connections : input	N/A
Connections : output	N/A
Brand	JB SYSTEMS
EANCode	5420025641555

MATRIX LED Manual Size: (3.38 MB)	MATRIX LED Manual
