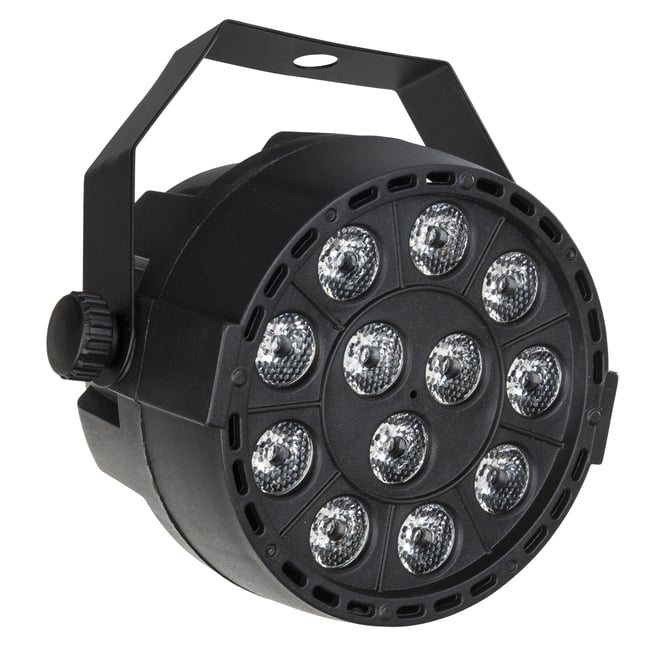

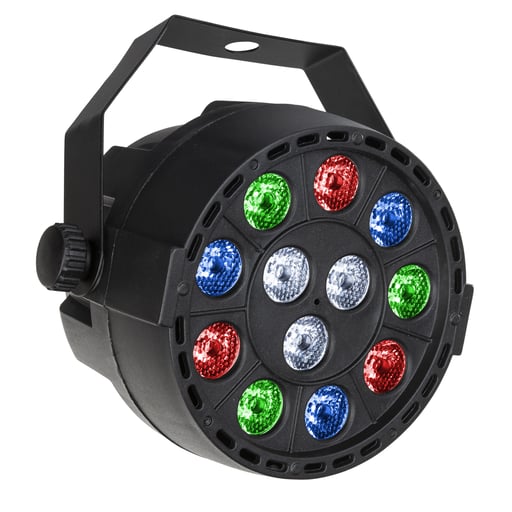

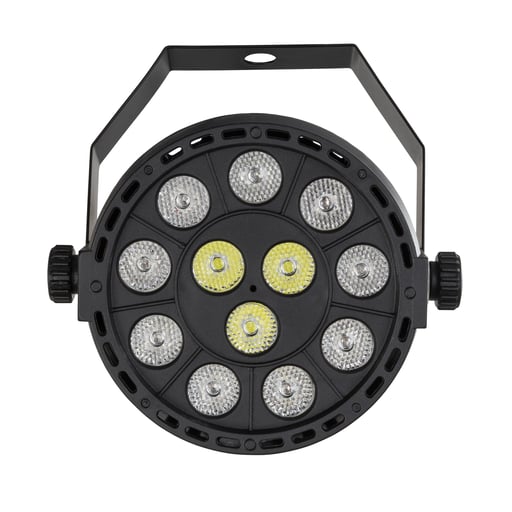

- Ultra-compact LED projector with 12x 1W high power Leds:
- 3 Red, 3 Green, 3 Blue and 3 White Leds
- Narrow Beam of 13°
- Use the unit in any way you like it !
- Standalone: sound activated (internal mic) or automatic shows.
- Master/slave function for wonderful synchronized shows when several units are used.
- DMX-control: via 4 or 6 Channels.
- 4-digit LED display for easy menu navigation.
- Compatible with the LEDCON-02 Mk2 and LEDCON-XL controllers.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 15 x 16 x 9 |
|---|---|
| General : Weight (kg) | 0.4 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 10 |
| General : Color | black |
| General : Display | LED |
| General : IP rating | indoor |
| Control : Modes | standalone sound, standalone automatic, remote, manual, DMX, Master/Slave |
| Control : Protocol | DMX |
| Control : optional remote | IR REMOTE |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | 4 |
| Control : maximum DMX channels | 6 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | RGBW |
| Light : mix colors | Yes |
| Light : min. beam angle (°) | 13 |
| Light : max. refresh rate (kHz) | No |
| Connections : input | 3 pin XLR, Schuko CEE 7/7 |
| Connections : output | 3 pin XLR |
| Brand | JB SYSTEMS |
| EANCode | 5420025655415 |
Manual & Downloads
Manual & Downloads
 MINI-PAR 12RGBW - Manual EN Size: (1.41 MB) |
MINI-PAR 12RGBW - Manual English |
| MINI-PAR 12RGBW - Manual FR Size: (1.44 MB) |
MINI-PAR 12RGBW - Mode d'emploi Français |
| MINI-PAR 12RGBW - Manual NL Size: (1.43 MB) |
MINI-PAR 12RGBW - Handleiding Nederlands |
| MINI-PAR 12RGBW - Manual DE Size: (1.44 MB) |
MINI-PAR 12RGBW - Bedienungsanleitung Deutsch |
| MINI-PAR 12RGBW - Manual ES Size: (1.44 MB) |
MINI-PAR 12RGBW - Manual de instrucciones Español |
| MINI-PAR 12RGBW - EC Declaration Size: (448.04 KB) |
MINI-PAR 12RGBW - EC Declaration of Conformity |
 MINI-PAR 12RGBW - Chromateq Profile Size: (2.19 KB) |
MINI-PAR 12RGBW - Chromateq Profile |
| MINI-PAR_12RGBW PDF leaflet Deutsch Size: (1.08 MB) |
PDF_LEAFLET_MINI-PAR_12RGBW_B05541_de.pdf |
| MINI-PAR_12RGBW PDF leaflet English Size: (1.08 MB) |
PDF_LEAFLET_MINI-PAR_12RGBW_B05541_en.pdf |
| MINI-PAR_12RGBW PDF leaflet Français Size: (1.08 MB) |
PDF_LEAFLET_MINI-PAR_12RGBW_B05541_fr.pdf |
| MINI-PAR_12RGBW PDF leaflet Nederlands Size: (1.08 MB) |
PDF_LEAFLET_MINI-PAR_12RGBW_B05541_nl.pdf |
