Details
Details

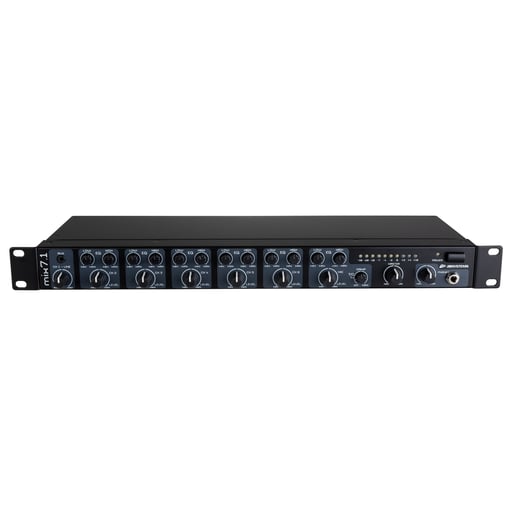

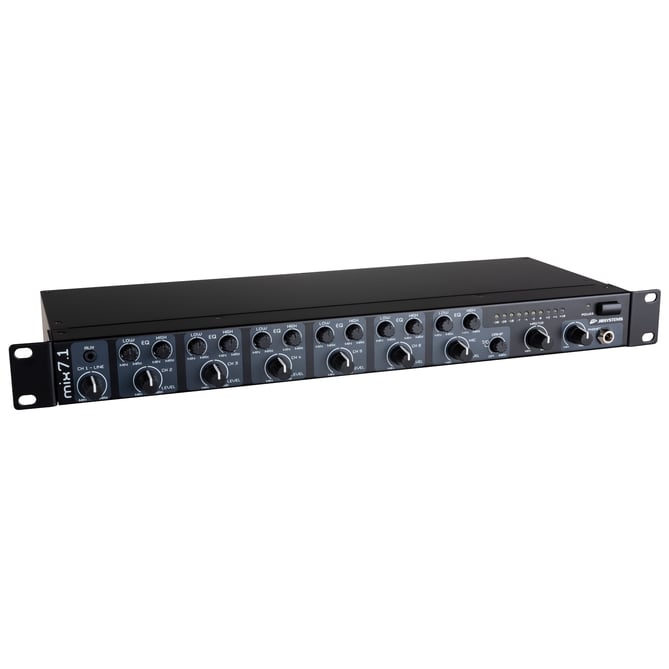

- Simple and easy to use audio mixer with up to 6 microphone or stereo line inputs !
- The perfect mixer for users with little knowledge of audio equipment: pubs, soccer canteens, fitness centers, restaurants, ...
- 7 inputs in total:

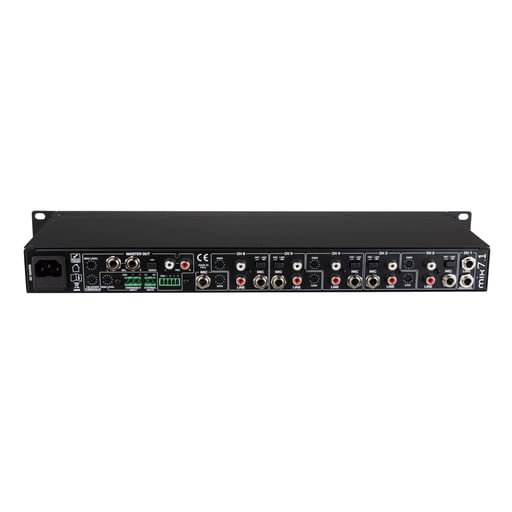

- 1x Stereo Line input (2 balanced Jacks on the rear or Stereo Mini Jack on the front panel)
- 1x Microphone input with high & low EQ and Talkover (adjustable damping/threshold)
- 5x Microphone / Stereo Line inputs with individual high & low EQ
- Balanced and unbalanced outputs with max. level trimmer and mono/stereo switch.
- Headphones output with volume control.
- Record output via RCA/cinch.

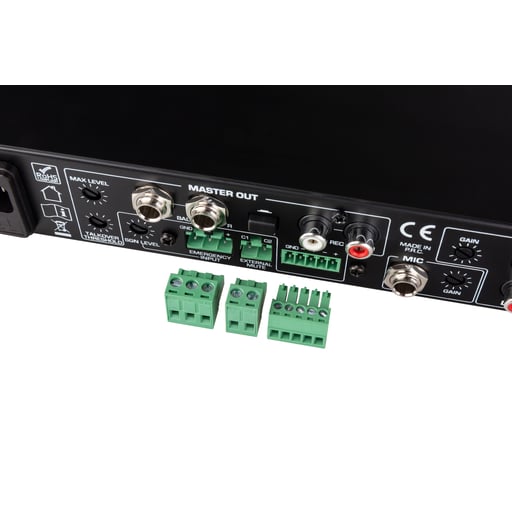

- Emergency message input (Euroblock connector) with automatic audio mute.
- Euroblock input: muting of the masters (closed contact = mute).
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 48 x 44 x 15 |
|---|---|
| General : Weight (kg) | 2.5 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 20 |
| General : Color | black |
| General : Display | No |
| General : Fixation | 19" rack mountable |
| General : RU | 1U |
| Audio : min. frequency (Hz) | 20 |
| Audio : max. frequency (Hz) | 20000 |
| Audio : S/N ratio (> dB) | 82 |
| Audio : max. output channels | 7 |
| Connections : input | rca, jack, IEC |
| Connections : output | rca, jack |
| Brand | JB SYSTEMS |
| EANCode | 5420025684026 |
Manual & Downloads
Manual & Downloads
 MIX 7.1 - Manual EN Size: (1.21 MB) |
MIX 7.1 - Operation Manual English |
| MIX 7.1 - Manual NL Size: (1.39 MB) |
MIX 7.1 - Handleiding Nederlands |
| MIX 7.1 - Manual FR Size: (1.44 MB) |
MIX 7.1 - Mode d'emploi Français |
| MIX 7.1 - Manual DE Size: (1.4 MB) |
MIX 7.1 - Bedienungsanleitung Deutsch |
| MIX 7.1 - Manual ES Size: (1.4 MB) |
MIX 7.1 - Manual de instrucciones Español |
| MIX 7.1 - EC Declaration Size: (447.55 KB) |
MIX 7.1 - EC Declaration of Conformity |
| MIX_7.1 PDF leaflet Deutsch Size: (1010.46 KB) |
PDF_LEAFLET_MIX_7.1_B08402_de.pdf |
| MIX_7.1 PDF leaflet English Size: (1010.09 KB) |
PDF_LEAFLET_MIX_7.1_B08402_en.pdf |
| MIX_7.1 PDF leaflet Français Size: (1010.93 KB) |
PDF_LEAFLET_MIX_7.1_B08402_fr.pdf |
| MIX_7.1 PDF leaflet Nederlands Size: (1009.27 KB) |
PDF_LEAFLET_MIX_7.1_B08402_nl.pdf |
