Details
Details

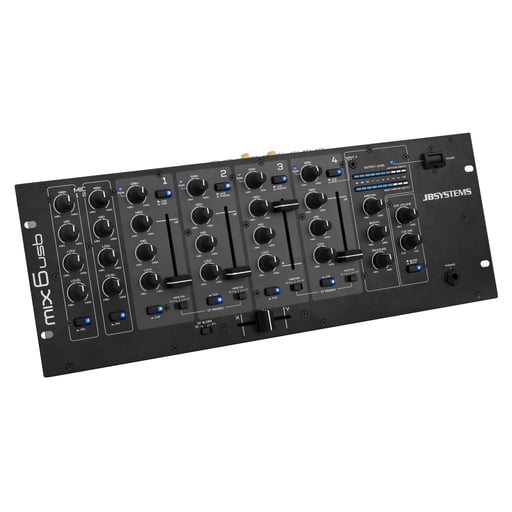

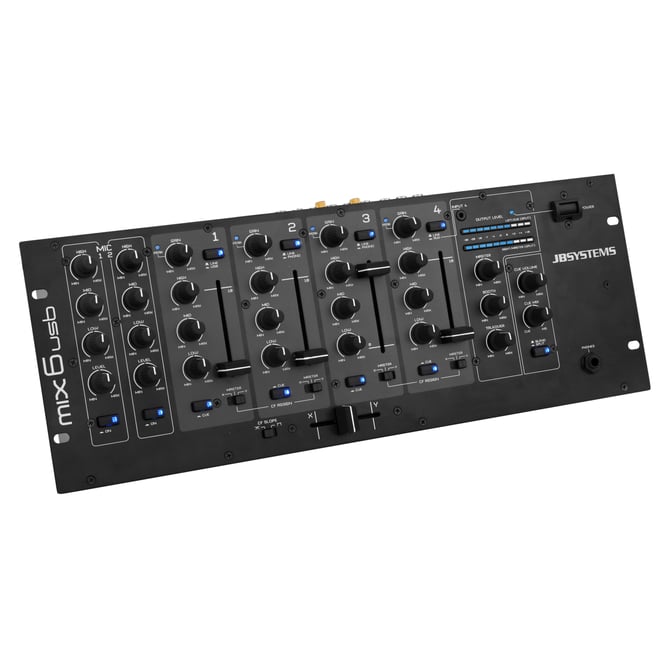

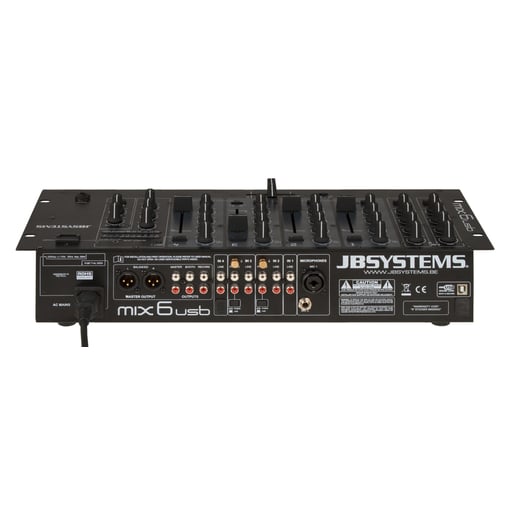

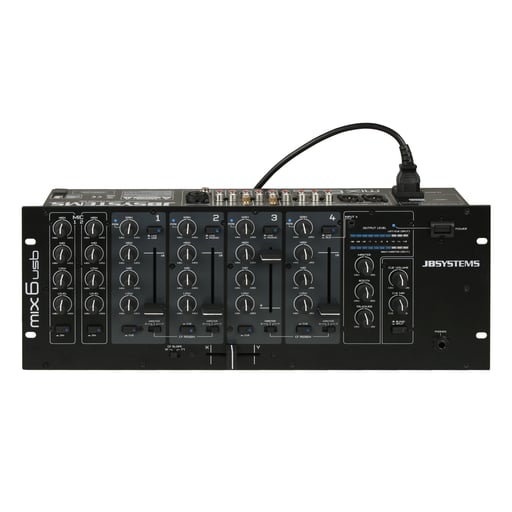

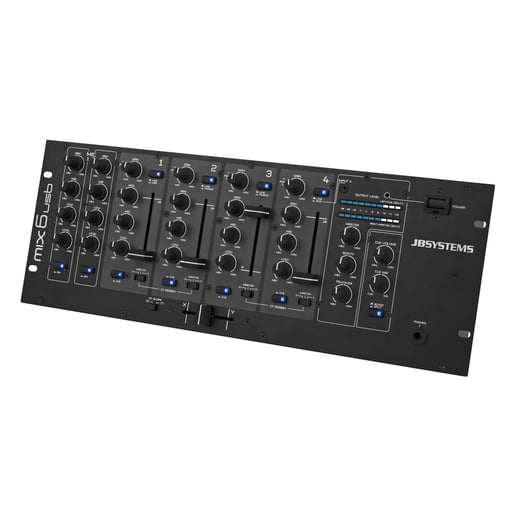

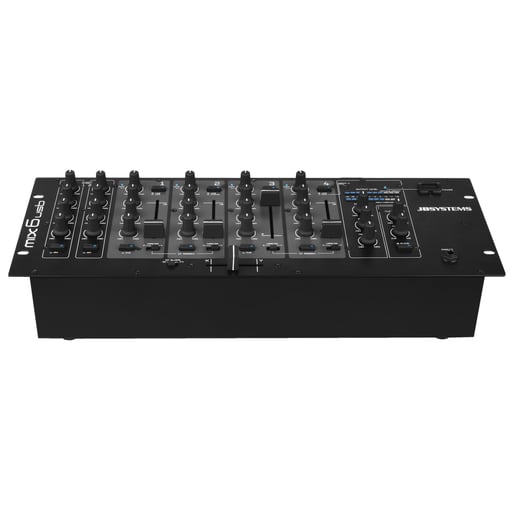

- A compact and robust 19” DJ-mixer with stylish black design (blue and white LEDs)
- 4 input channels equipped with smooth dual-rail 60mm DJ-faders: 7 line or 5line + 2phonos, 1USB
- 2 separate DJ mics with 3band equalizer, on-air switch and adjustable talkover
- 1 Bidirectional USB sound card (play and record at the same time!)
- Separate 3.5mm stereo input on front panel: easy to connect MP3-player etc.
- Gain, treble, mid, bass controls and peak indicator on all channels
- Assignable smooth 45mm dual-rail crossfader with adjustable curve and on/off switch
- 2 Master outputs, master1 with balanced XLR outputs
- LED VU-meters with CUE/master compare function.
- Pre-fade listening with cue mix and blend/split options
- Free recording software available : Audacity : http://www.audacityteam.org/
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 48.3 x 17.9 x 10.4 cm |
|---|---|
| General : Weight (kg) | 5.02 |
| General : Powerinput | AC 240V, 50Hz |
| General : Energy Label | No |
| General : Power consumption W | 20 |
| General : Color | black |
| General : Display | none |
| General : Fixation | 19" rack mountable |
| General : RU | 4U |
| Audio : min. frequency (Hz) | 20 |
| Audio : max. frequency (Hz) | 20000 |
| Audio : S/N ratio (> dB) | 77 |
| Audio : max. output channels | 6 |
| Audio : functions | equalizer |
| Connections : input | 3 pin XLR, rca, jack, IEC |
| Connections : output | 3 pin XLR, rca |
| Brand | JB SYSTEMS |
| EANCode | 5420025601221 |
Manual & Downloads
Manual & Downloads
 MIX6usb Manual Size: (1.54 MB) |
MIX6usb Manual EN / FR / NL / DE / ES / PT |
| MIX6usb EC declaration Size: (568.45 KB) |
MIX6usb EC Declaration of Conformity |
| MIX6USB PDF leaflet Deutsch Size: (931.52 KB) |
PDF_LEAFLET_MIX6USB_00122_de.pdf |
| MIX6USB PDF leaflet English Size: (930.52 KB) |
PDF_LEAFLET_MIX6USB_00122_en.pdf |
| MIX6USB PDF leaflet Français Size: (931.34 KB) |
PDF_LEAFLET_MIX6USB_00122_fr.pdf |
| MIX6USB PDF leaflet Nederlands Size: (930.39 KB) |
PDF_LEAFLET_MIX6USB_00122_nl.pdf |
