Discontinued product

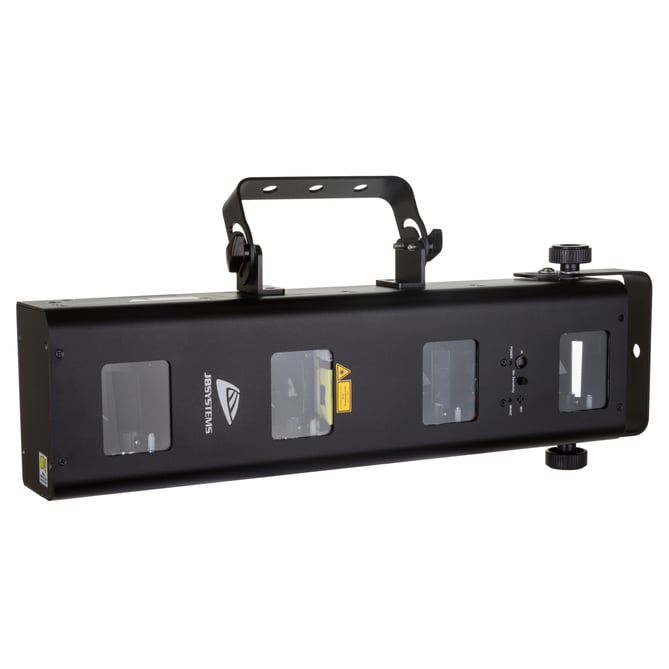

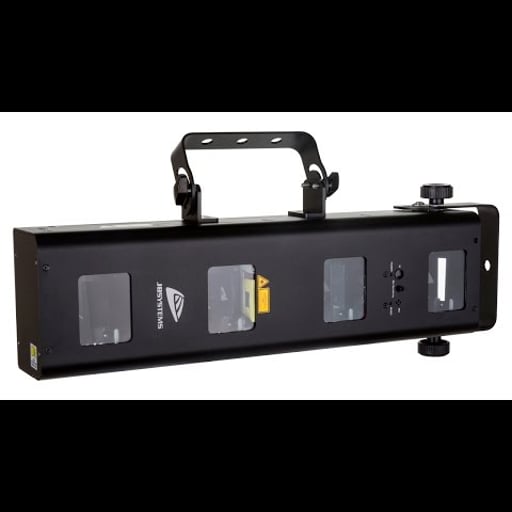

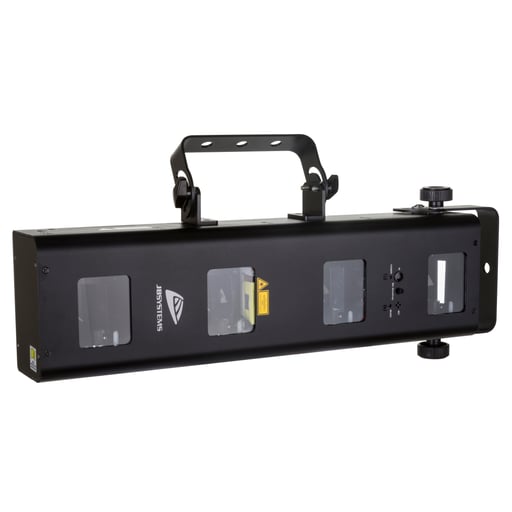

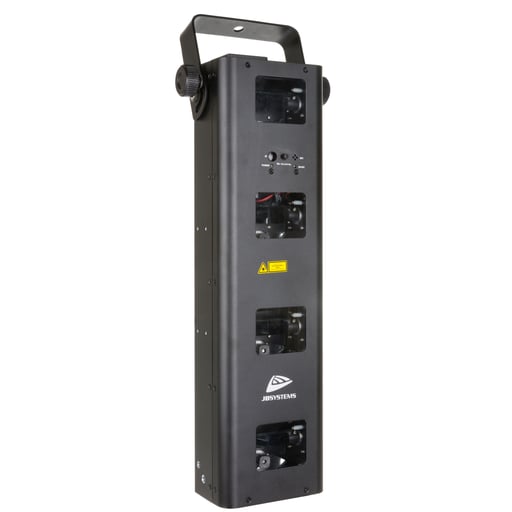

A superb 850 mWatt Class-3B RGRB color laser equipped with 4 powerful, temperature controlled lasers
SKU: B04236
EANCODE: 5420025642361



  • A superb 850 mWatt Class-3B RGRB color laser equipped with 4 powerful, temperature controlled lasers:
    • 2 x 150mW Red laser (650nm)
    • 1 x 50mW Green laser (532nm)
    • 1 x 500mW Blue laser (450nm)
  • The 4 user modes make this laser very easy to use:
    • MUSIC CONTROL: 100% plug & play, just connect the laser to the mains to start an incredible, music controlled, laser show based on the internal patterns! Perfect for hiring companies!!!
    • MASTER/SLAVE mode: Several units can be used in completely synchronized music mode: amazing and very simple to use!
    • AUTOMATIC mode: all internal programs will be shown automatically, no music needed. Depending your needs you can choose a fast or soft show.
    • DMX mode: two options possible:
      • 2 channel for extremely easy setup and use!
      • 10 channels to take full control of all internal programs!

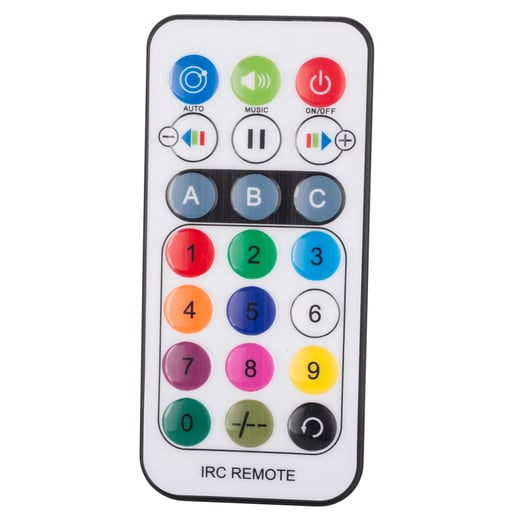

  • IR remote included.
  • LED-display for easy navigation in the setup menu.
  • Perfect for use in clubs, discotheques, mobile DJ’s and many more …
  • SAFETY FIRST! Class-3B lasers (more than 500mW output) can damage the human eye very badly so never buy such high power laser without checking if it passed the severe laser safety tests! This laser complies to the European EN 60825-1:2014 for Laser Safety! It is equipped with extra safety measures like:
    • Interlock connection with mechanical shutter: press the safety switch to shut down the output.
    • Key switch: only authorized and well trained operators are allowed to use the laser.

Technical Specifications

Technical Specifications

General : Dimensions (cm) 53,7 x 26,8 x 17
General : Weight (kg) 5
General : Powerinput AC 100 - 240V, 50/60Hz
General : Energy Label No
General : Power consumption W 65
General : Color black
General : Display LED
General : IP rating indoor
Control : Modes standalone sound, standalone automatic, remote, manual, Master/Slave
Control : Protocol DMX
Control : Type included remote IR Remote Control
Control : programmable No
Control : upgradable software No
Control : minimum DMX channels 2
Control : maximum DMX channels 10
Light : lamp socket No
Light : lamp No
Light : colors Red, Green, Blue
Light : mix colors No
Light : max. refresh rate (kHz) No
Connections : input 3 pin XLR
Connections : output 3 pin XLR
EANCode 5420025642361

Manual & Downloads

Manual & Downloads

View FileMULTIBEAM LASER - Important information !    Size: (359.5 KB) EN - DPSS lasers need a warmup period of about 5-15 minutes to reach a stable working temperature !
NL - DPSS lasers hebben een opwarmperiode van 5-15 minuten nodig om hun stabiele werktemperatuur te bereiken.
FR - Les lasers DPSS ont besoin d'un temps d'échauffement d'environ 5 à 15 minutes pour atteindre une température de travail stable.
DE - DPSS-Laser benötigen eine Aufwärmphase von etwa 5-15 Minuten, um eine stabile Arbeitstemperatur zu erreichen.
ES - Los láseres DPSS necesitan un período de calentamiento de aproximadamente 5-15 minutos para alcanzar una temperatura de trabajo estable.
View FileMULTIBEAM LASER - Manual DE    Size: (1.12 MB) MULTIBEAM LASER Bedienungsanleitung V3.1 Deutsch
View FileMULTIBEAM LASER - Manual EN    Size: (1.16 MB) MULTIBEAM LASER Operation Manual V3.1 English
View FileMULTIBEAM LASER - Manual ES    Size: (1.35 MB) MULTIBEAM LASER Manual de instrucciones V3.1 Español
View FileMULTIBEAM LASER - Manual FR    Size: (1.38 MB) MULTIBEAM LASER Mode d'emploi V3.1 Français
View FileMULTIBEAM LASER - Manual NL    Size: (1.12 MB) MULTIBEAM LASER Handleiding V3.1 Nederlands
View FileMULTIBEAM LASER - EC declaration    Size: (632.26 KB) MULTIBEAM LASER EC declaration of conformity
View FileMULTIBEAM LASER - Chromateq fixture files    Size: (889 Bytes) MULTIBEAM LASER Chromateq fixture files
View FileMULTIBEAM_LASER PDF leaflet Deutsch    Size: (545 KB) PDF_LEAFLET_MULTIBEAM_LASER_04236_de.pdf
View FileMULTIBEAM_LASER PDF leaflet English    Size: (544.05 KB) PDF_LEAFLET_MULTIBEAM_LASER_04236_en.pdf
View FileMULTIBEAM_LASER PDF leaflet Français    Size: (546.65 KB) PDF_LEAFLET_MULTIBEAM_LASER_04236_fr.pdf
View FileMULTIBEAM_LASER PDF leaflet Nederlands    Size: (544.38 KB) PDF_LEAFLET_MULTIBEAM_LASER_04236_nl.pdf
