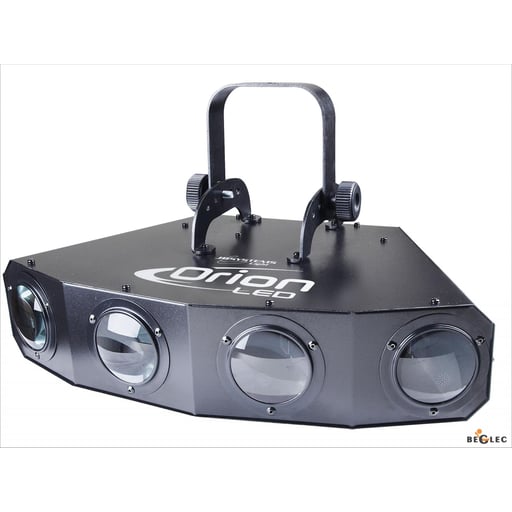

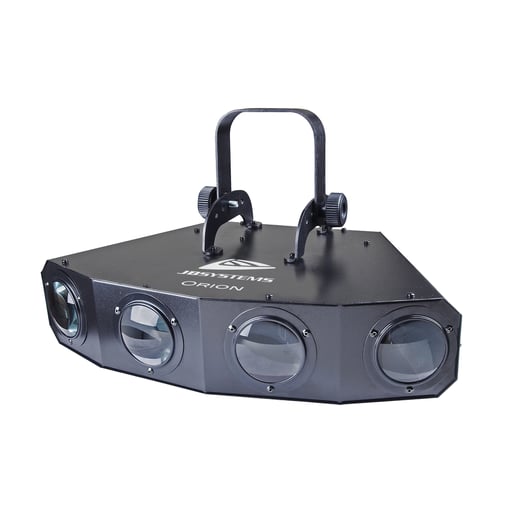

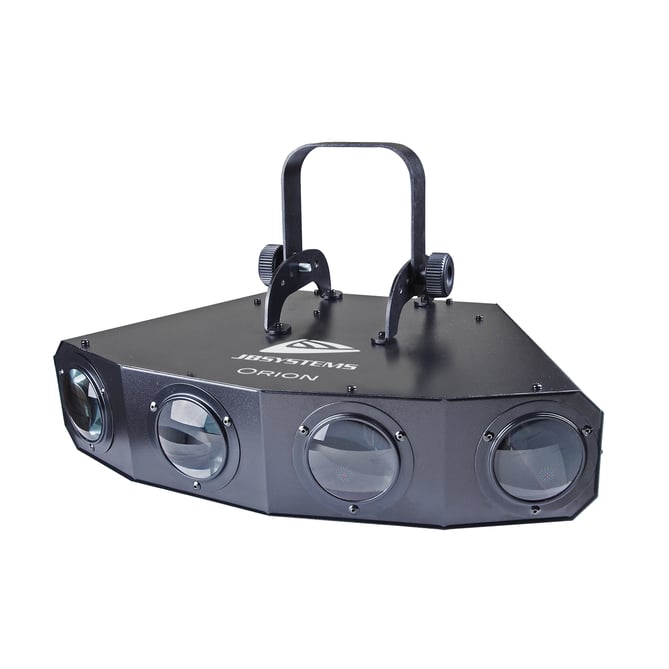

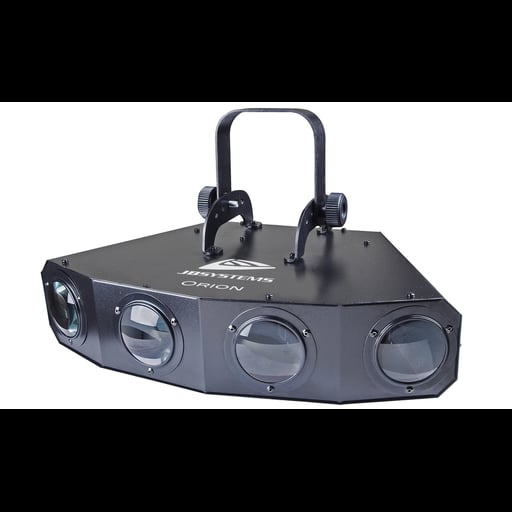

- A very powerful, eye-catching, LED effect.
- With an optional CPB-4 (Centerpiece bracket) 4 units can be mounted together to obtain an incredible and fantastic LED centerpiece effect!
- Based on 4 LED clusters with 224 power LEDs (R=80 + G=60 + B=48 + W=36):
- Extremely brilliant colors compared to effects with halogen lamps
- More dynamic effects compared to effects based on halogen lamps
- Very sharp white, blue, red and green laser-like beams
- No lamp replacements!
- Uses LEDs with extremely long lifespan!
- Virtually no heat production
- Very low power consumption
- Lightweight (no lamp transformers needed)
- 0-100% dimming and ultra fast strobe function
- Excellent built-in programs for wonderful, ever changing, light shows:
- DMX-control: selectable 1, 4 or 7 channels for full control of the 4 LED clusters
- Standalone: sound activated with internal mic
- Master/slave: wonderful synchronized shows
- Optional CA-8 remote controller available
- 4-digit menu driven display
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 47.5 x 29 x 16 cm |
|---|---|
| General : Weight (kg) | 5.3 |
| General : Powerinput | AC 240V, 50Hz |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Power consumption W | 30 |
| General : Color | black |
| General : Display | LED |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Protocol | N/A |
| Control : optional remote | CA-8 |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 7 |
| Light : lamp socket | none |
| Light : lamp | LED |
| Light : colors | Red, Green, Blue, White |
| Light : mix colors | No |
| Light : max. refresh rate (kHz) | No |
| Connections : output | 3 pin XLR, IEC |
| Brand | JB SYSTEMS |
| EANCode | 5420025641432 |
Manual & Downloads
Manual & Downloads
 ORION Manual v2.05 Size: (2.58 MB) |
ORION Manual v2.05 |
| ORION EC declaration Size: (570.35 KB) |
|
| ORION PDF leaflet Deutsch Size: (861.55 KB) |
PDF_LEAFLET_ORION_04143_de.pdf |
| ORION PDF leaflet English Size: (860.95 KB) |
PDF_LEAFLET_ORION_04143_en.pdf |
| ORION PDF leaflet Français Size: (863.31 KB) |
PDF_LEAFLET_ORION_04143_fr.pdf |
| ORION PDF leaflet Nederlands Size: (861.33 KB) |
PDF_LEAFLET_ORION_04143_nl.pdf |
