PLANO SPOT

SKU: 04919
EANCODE: 5420025649193

Details

Details

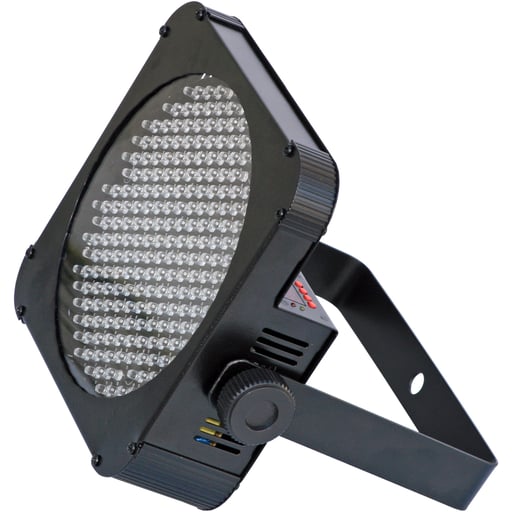

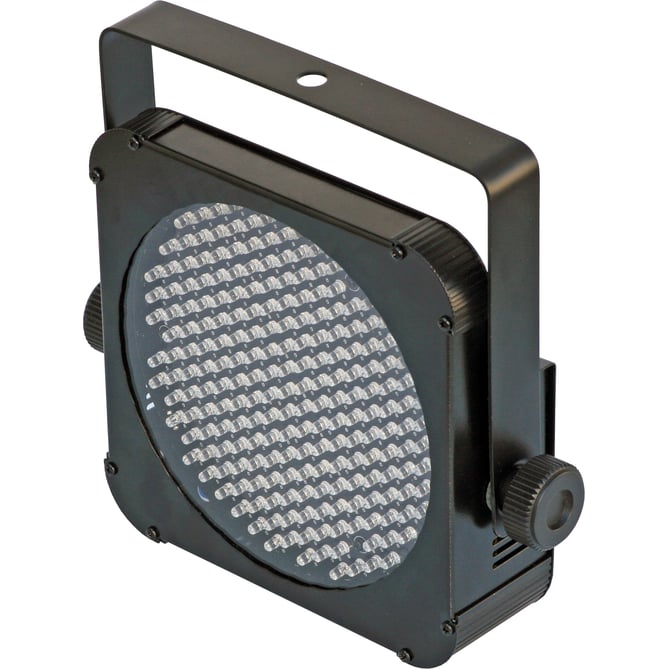

  • Super compact RGB LED-projector containing 212 high-power 5mm LEDs (70 red + 71 green + 71 blue)
  • High quality “Hewlett Packard® / Agilent® ” LED technology
  • Beam angle = 15° (narrow spot)
  • Many applications possible: Discotheques, DJs, exhibition booths, homes, Staging/ Rental Companies, Church stage, School Stage, Theatres ...

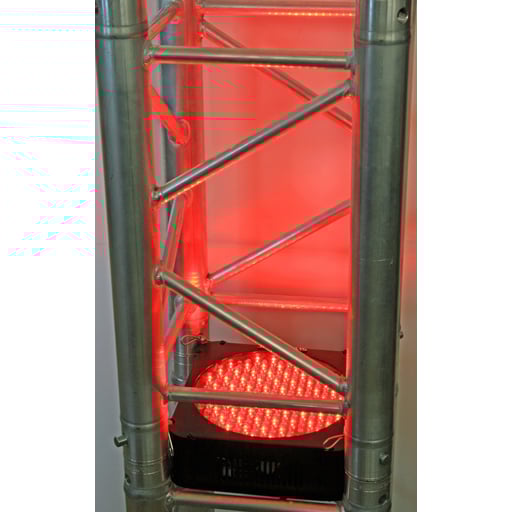

  • Can be fixed in ALU-truss like any standard LED PAR, using a standard clamp
  • Can be used as floor projector, under any possible projection angle
  • Super compact housing, perfect for hiring companies!
  • Very smooth RGB color changes thanks to high freq. dimming electronics
  • Different working modes:
  • Standalone: custom colors selectable or automatic and beat synchronized color changes
  • Master/slave mode: up to 16 units can be used together for wonderful preprogrammed, music synchronized lightshows. (optional CA-8 controller possible)
  • DMX-controlled: 4modes, 4channels (R, G, B + Dimmer/strobe/sound chase)
  • Controlled by LEDCON-02 DJ-controller
  • Different ways to set DMX start address:
  • Fast remote DMX addressing using any standard DMX-controller
  • In master/slave mode you can address all units just by pushing 1 button

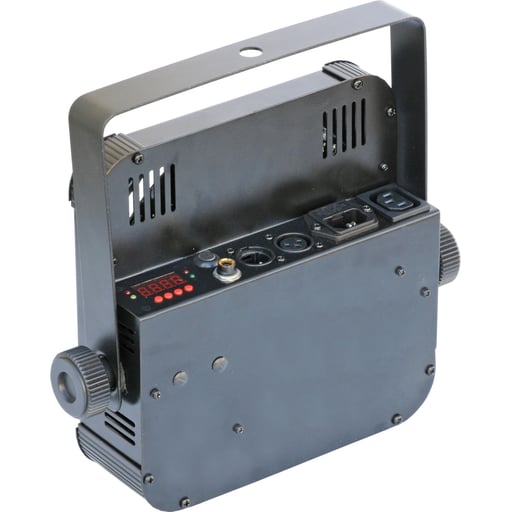

  • IEC mains inputs of several units can be daisy chained.

Technical Specifications

Technical Specifications

General : Application DJ & Club, Stage & Rental
General : Dimensions (cm) 25.2 x 27.2 x 6.7 cm
General : Weight (kg) 2.23
General : Powerinput AC 240V, 50Hz
General : Energy Label No
General : Power consumption W 28
General : Color black
General : Display LED
General : Fixation optional standard clamp
General : IP rating indoor
Control : manual No
Control : Master/Slave Yes
Control : SMART-DMX No
Control : Standalone automatic, sound
Control : optional remote CA-8
Control : programmable No
Control : upgradable software No
Control : maximum DMX channels 4
Light : lamp socket none
Light : lamp LED
Light : colors Red, Green, Blue
Light : mix colors Yes
Light : focus No
Light : zoom No
Light : iris No
Light : min. beam angle (°) 15
Light : max. beam angle (°) 15
Light : min. refresh rate (kHz) No
Light : max. refresh rate (kHz) No
Brand JB SYSTEMS
EANCode 5420025649193
Discontinued Yes

Downloads

Downloads

View FilePLANO SPOT Manual v1.05    Size: (2.72 MB) PLANO SPOT Manual v1.05 EN / FR / NL / DE / ES
View FilePLANO SPOT EC declaration    Size: (568.19 KB) PLANO SPOT EC declaration of conformity
View FilePLANO SPOT Chromateq fixture files    Size: (773 Bytes) PLANO SPOT Chromateq fixture files
View FilePLANO_SPOT PDF leaflet Deutsch    Size: (612.51 KB) PDF_LEAFLET_PLANO_SPOT_04919_de.pdf
View FilePLANO_SPOT PDF leaflet English    Size: (611.79 KB) PDF_LEAFLET_PLANO_SPOT_04919_en.pdf
View FilePLANO_SPOT PDF leaflet Français    Size: (614.57 KB) PDF_LEAFLET_PLANO_SPOT_04919_fr.pdf
View FilePLANO_SPOT PDF leaflet Nederlands    Size: (611.92 KB) PDF_LEAFLET_PLANO_SPOT_04919_nl.pdf
