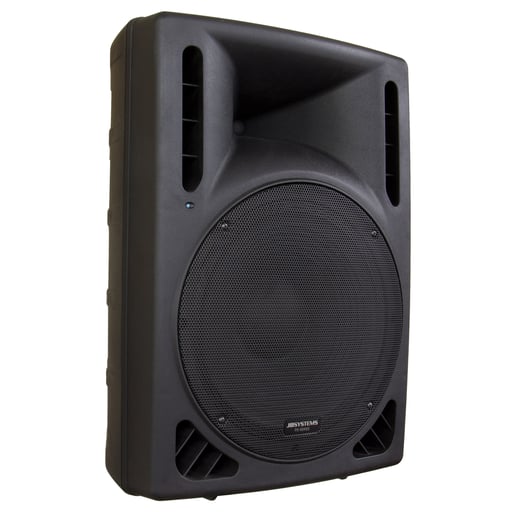

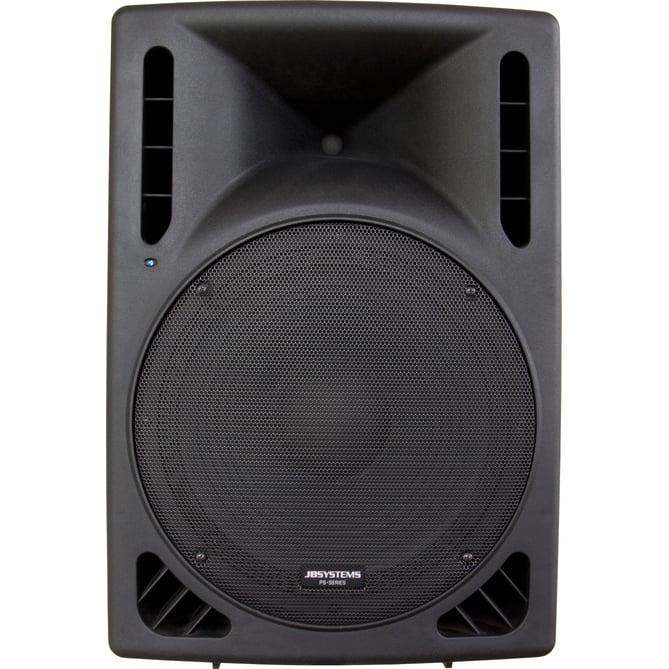

PSA-15

Professional 15" active speaker cabinet for a wide range of different applications.
SKU: B00617
EANCODE: 5420025606172

Details

Details

  • Professional active speaker cabinet for a wide range of different applications.
  • Heavy duty Polypropylene cabinet housing
  • Bi-Amping technology with separate amplifiers for woofer and tweeter for maximum impact: woofer 245W + tweeter 55W RMS-power
  • Active 2-way crossover
  • Perfect for both permanent installations and portable use (Rental, DJ, ...)
  • Equipped with a 15” high power woofer & a 1.75” compression driver

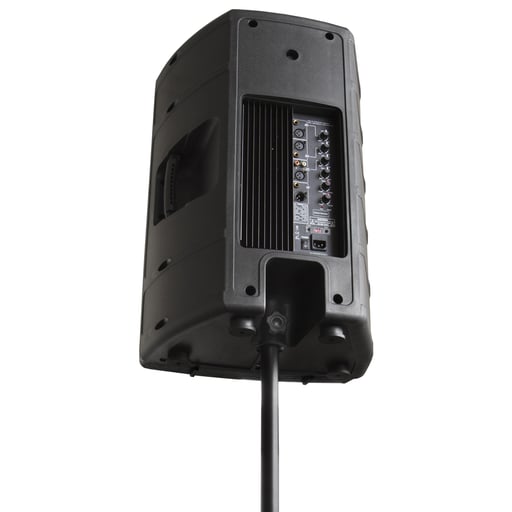

  • 2 Balanced MIC + 1 LINE input with level control
  • Balanced LINE output
  • Treble + Bass controls + Master volume
  • Blue „power“ LED on the front panel
  • Built-in M8 Rigging points
  • Built-in 35mm stand adapter

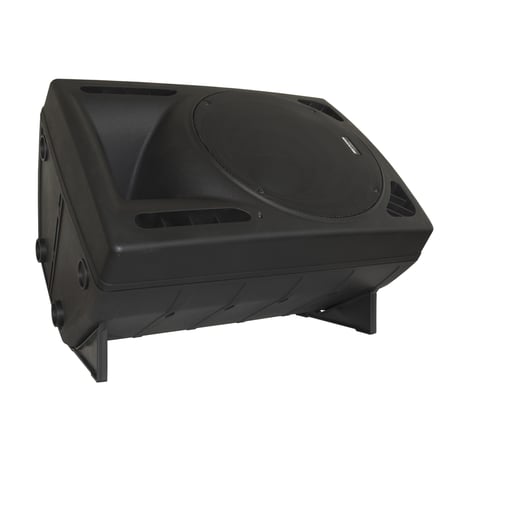

  • Monitor support stands included
  • Built-in heavy duty carrying handle
  • Heavy duty rubber feet

Technical Specifications

Technical Specifications

General : Application DJ & Club, Stage & Rental
General : Series PSA
General : Dimensions (cm) 68 x 47 x 40 cm
General : Weight (kg) 21.55
General : Powerinput AC 100 - 240V, 50/60Hz
General : Energy Label No
General : Color black
General : Fixation 35mm stand adaptor, M8
General : IP rating indoor
Audio : amplifier class No
Audio : diameter woofer (inch) 1.75", 15"
Audio : frequency range 40 Hz - 20000 Hz
Connections : input 3 pin XLR, rca, jack, IEC
Connections : output 3 pin XLR, jack
Brand JB SYSTEMS
EANCode 5420025606172

Manual & Downloads

Manual & Downloads

View FilePSA-10, PSA-12, PSA-15 Manual    Size: (1.53 MB) PSA-10, PSA-12, PSA-15 - Manual EN / FR / NL / DE / ES
View FilePSA-15 EC Declaration of Conformity    Size: (676.76 KB) PSA-15 EC Declaration of Conformity
View FilePSA-series RoHS Declaration of Conformity    Size: (227.32 KB) PSA-series RoHS Declaration of Conformity
View FilePSA-15 PDF leaflet Deutsch    Size: (1.48 MB) PDF_LEAFLET_PSA-15_B00617_de.pdf
View FilePSA-15 PDF leaflet English    Size: (1.48 MB) PDF_LEAFLET_PSA-15_B00617_en.pdf
View FilePSA-15 PDF leaflet Français    Size: (1.48 MB) PDF_LEAFLET_PSA-15_B00617_fr.pdf
View FilePSA-15 PDF leaflet Nederlands    Size: (1.48 MB) PDF_LEAFLET_PSA-15_B00617_nl.pdf

Reviews & References

Customer Reviews (4)

Goed geluid en prima bereik.Review by Jan W
Speaker werkt uitstekend. Goed geluid en prima bereik. Inmiddels al 2 speakers gekocht. Eenvoudig op elkaar aan te sluiten.

26 mei 2015 (Posted on 9/10/2020)
Goed geluidReview by Jelle V.
Goed geluid, goed bereik, beste bas er in, makkelijk te verbinden met nog een speaker.

17 april 2018 (Posted on 9/10/2020)
Zeer goed luidspreker, met stevige diepe bas.Review by Marc S
Zeer goed luidspreker, met stevige diepe bas.
Aan te raden voor mobiele Discobar(s).
Goede verhouding prijs/kwaliteit.

31 augustus 2018 (Posted on 9/10/2020)
Ben zeer tevreden met deze topspeaker.Review by Jobe
Ben zeer tevreden met deze topspeaker.

08 februari 2019
(Posted on 9/10/2020)

Write Your Own Review

You're reviewing: PSA-15
