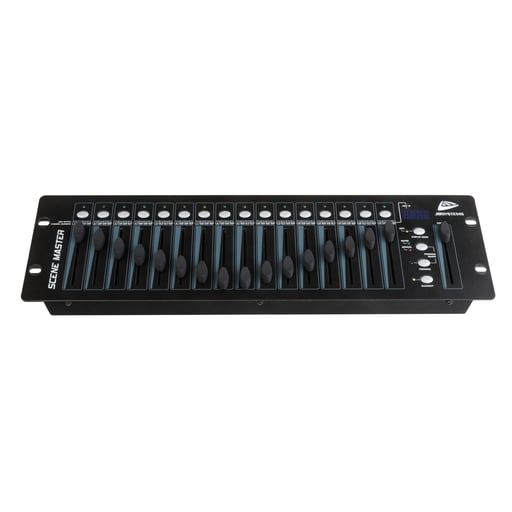

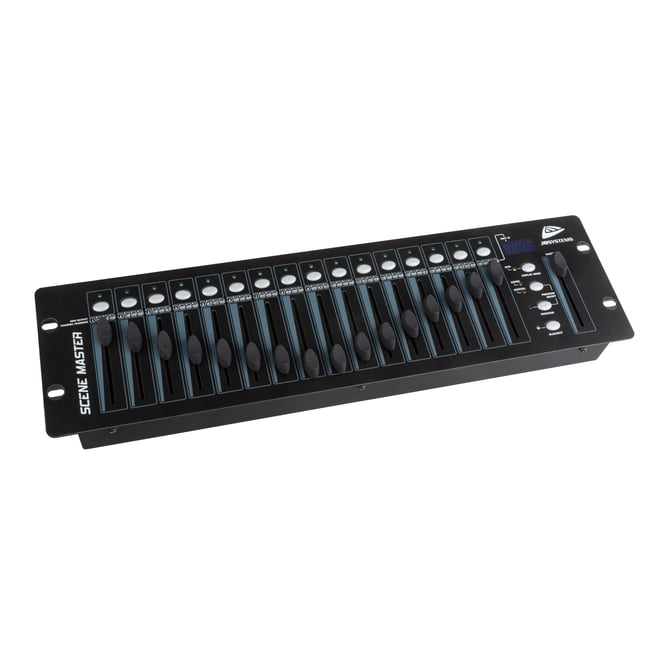

- Extremely user-friendly 16channel DMX controller for all kinds of applications: stage, DJ, architectural lighting, …

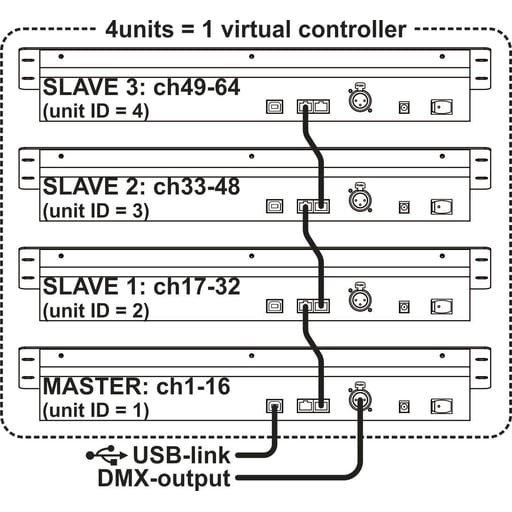

- Seamless linking of up to 4 units to obtain a virtual controller with maximum 64channels and/or scenes!
- 2 user modes:
- Dimmer mode: you can control 16 dimmer channels gradually (extendable up to 64channels)
- Scene mode: you can create 16 scenes, each containing 16channels (extendable to 64scenes, each containing 64channels)
- MIDI functionality via USB (16ch):
- MIDI OUT: all channel faders + flash buttons can also send out MIDI-commands so you can control different MIDI applications (ex. Arkaos, Resolume, DMX-Creator, Daslight, …)
- MIDI IN: all scenes (16 up to 64) can be controlled by any external MIDI controller (seamless integration with MIDI-software such as Cubase, etc.), perfect for musicians etc.
- The channel faders can be used to mix several scenes together.
- Push buttons on top of all dimmer channels:
- Dimmer mode: used as flash buttons
- Scene mode: scenes can easily be switched on/off
- Blackout function
- Last output is preserved while the unit is switched off and on again (no need to push any button or de-active blackout): perfect for use on exhibition booths, shops, …
- 4-digit LED-display shows DMX-values (0-255 or 0-100%) and MIDI-values (0-127)
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 13.3 x 48.3 x 8.5 cm |
|---|---|
| General : Weight (kg) | 2.5 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Color | black |
| General : Display | LED |
| General : Fixation | 19" rack mountable |
| General : RU | 3U |
| General : IP rating | indoor |
| Control : Protocol | DMX, MIDI |
| Control : programmable | No |
| Control : upgradable software | Yes |
| Control : maximum DMX channels | 16 |

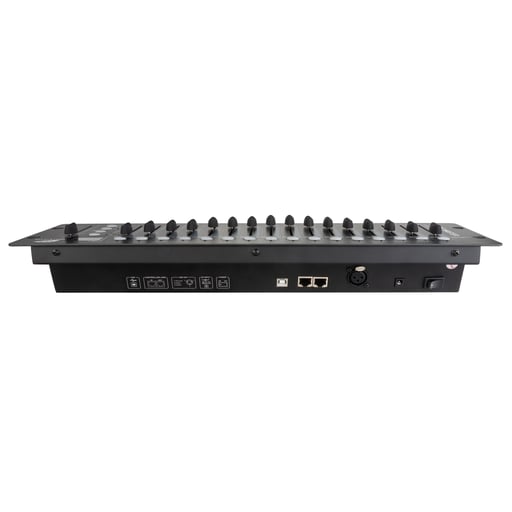

| Connections : input | RJ45 |
| Connections : output | 3 pin XLR, midi, RJ45 |
| Brand | JB SYSTEMS |
| EANCode | 5420025646246 |
Manual & Downloads
Manual & Downloads
 SCM-1 SCENEMASTER Manual Size: (2.15 MB) |
SCM-1 SCENEMASTER Manual EN / FR / DE / NL / ES |
| SCM-1 SCENEMASTER EC declaration Size: (569 KB) |
SCM-1 SCENEMASTER EC declaration of conformity |
 SCM-1 SCENEMASTER Firmware v1.4 Size: (25.49 KB) |
SCM-1 SCENEMASTER Firmware v1.4 |
| SCM-1_SCENEMAST PDF leaflet Deutsch Size: (1.16 MB) |
PDF_LEAFLET_SCM-1_SCENEMAST_B04624_de.pdf |
| SCM-1_SCENEMAST PDF leaflet English Size: (1.16 MB) |
PDF_LEAFLET_SCM-1_SCENEMAST_B04624_en.pdf |
| SCM-1_SCENEMAST PDF leaflet Français Size: (1.16 MB) |
PDF_LEAFLET_SCM-1_SCENEMAST_B04624_fr.pdf |
| SCM-1_SCENEMAST PDF leaflet Nederlands Size: (1.16 MB) |
PDF_LEAFLET_SCM-1_SCENEMAST_B04624_nl.pdf |
