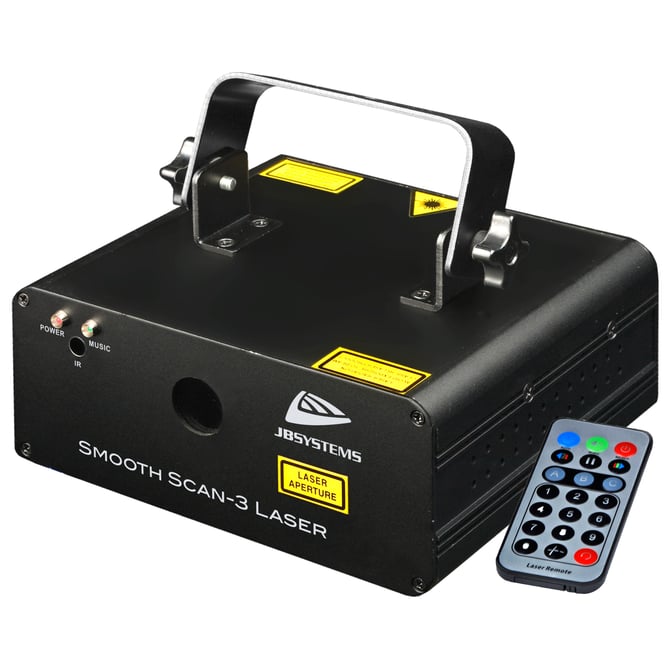

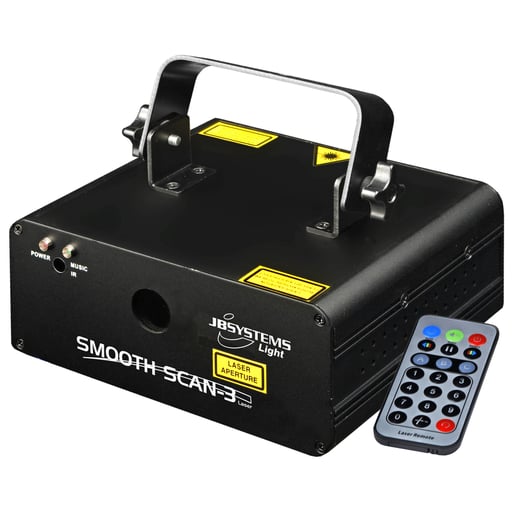

- An eye-catching two color laser using high quality 15kHz scanners instead of ordinary stepper motors:
- Very smooth and soft movements
- 80 Pre-programmed patterns like: numbers, drawings, words, …
- Fabulous preprogrammed laser shows for all kinds of applications: lounge bar, discotheque, mobile DJ, …
- Class 3B laser based on 40mW Green CW laser (λ = 532nm) and 100mW Red CW laser (λ = 650nm).
- Several working modes:
- DMX-control: 1channel for easy operation or 17 channels for full control
- Standalone: sound activated (internal mic) or automatic
- IR-remote: infrared remote control.
- Master/slave: wonderful synchronized shows
- Built-in microphone
- 3-digit LED display for easy menu navigation
- Key actuated on/off switch and emergency switch (interlock) input for additional safety
- Complies to EN/IEC 60825-1 Ed2, 2007-03 for Laser Safety
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 19 x 17 x 8 cm |
|---|---|
| General : Weight (kg) | 1.61 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Works on battery | N/A |
| General : Energy Label | No |
| General : Power consumption W | 13 |
| General : Color | black |
| General : Display | LED |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Protocol | N/A |
| Control : Type included remote | IR-remote |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Control : maximum DMX channels | 17 |
| Light : lamp socket | No |
| Light : lamp | No |
| Light : colors | Red, Green |
| Light : mix colors | No |
| Light : max. refresh rate (kHz) | No |
| Connections : output | 3 pin XLR |
| Brand | JB SYSTEMS |
| EANCode | 5420025642262 |
Manual & Downloads
Manual & Downloads
 SMOOTH SCAN-3 Laser Manual Size: (3.45 MB) |
SMOOTH SCAN-3 Laser Manual EN / FR / NL / DE / ES / PT |
| SMOOTH SCAN-3 Laser EC Declaration Size: (568.54 KB) |
SMOOTH SCAN-3 Laser EC Declaration of Conformity |
| SMOOTH SCAN-3 Laser Review Size: (946.1 KB) |
SMOOTH SCAN-3 Laser Review |
 SMOOTH SCAN-3 Laser Chromateq fixture files Size: (2.38 KB) |
SMOOTH SCAN-3 Laser Chromateq fixture files |
| SMOOTH_SCAN-3_L PDF leaflet Deutsch Size: (867.08 KB) |
PDF_LEAFLET_SMOOTH_SCAN-3_L_04226_de.pdf |
| SMOOTH_SCAN-3_L PDF leaflet English Size: (866.56 KB) |
PDF_LEAFLET_SMOOTH_SCAN-3_L_04226_en.pdf |
| SMOOTH_SCAN-3_L PDF leaflet Français Size: (868.72 KB) |
PDF_LEAFLET_SMOOTH_SCAN-3_L_04226_fr.pdf |
| SMOOTH_SCAN-3_L PDF leaflet Nederlands Size: (866.69 KB) |
PDF_LEAFLET_SMOOTH_SCAN-3_L_04226_nl.pdf |
