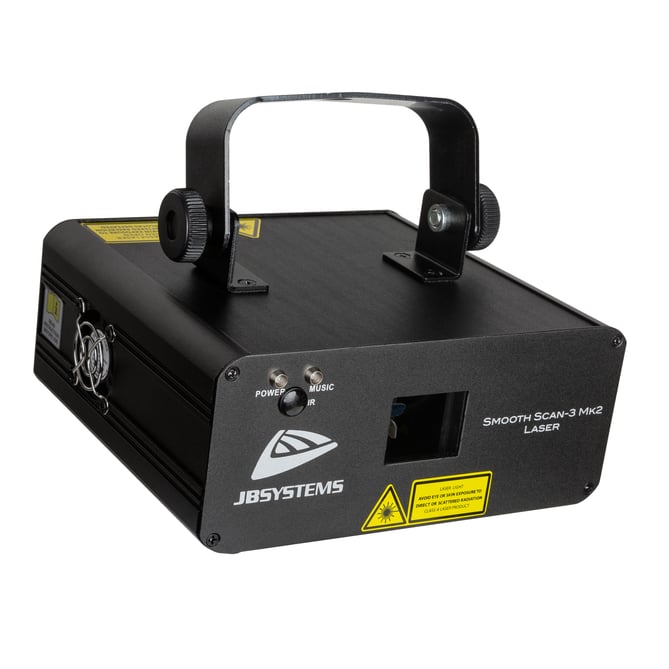

SMOOTH SCAN-3 Mk2 LASER

Very attractive bi-color laser for DJ’s, pubs and small discotheques ( 50mW green + 100mW red )
SKU: B06221
EANCODE: 5420025662215

Details

Details

  • This device was designed to produce decorative effect lighting and is used in light show systems.
  • An eye-catching two color laser using high quality 15kHz scanners instead of ordinary stepper motors:
    • Very smooth and soft movements
    • 64 Pre-programmed patterns like: drawings, words, …
  • Fabulous preprogrammed laser shows for all kinds of applications: lounge bar, discotheque, mobile DJ, …
  • Class 3B laser based on 50mW Green CW laser (λ = 515nm) and 100mW Red CW laser (λ = 650nm).
  • Several working modes:
    • DMX-control: 1channel for easy operation or 17 channels for full control
    • Standalone: sound activated (internal mic) or automatic

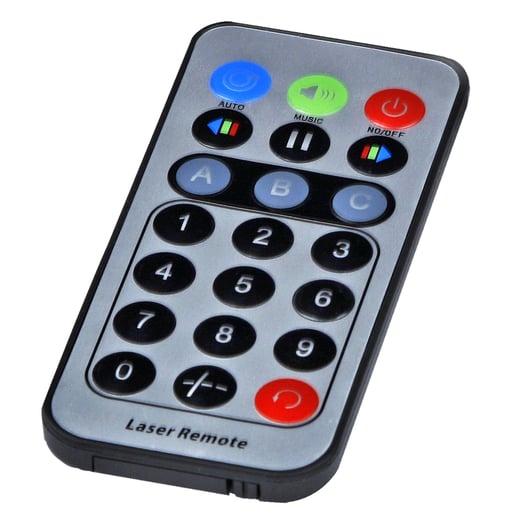

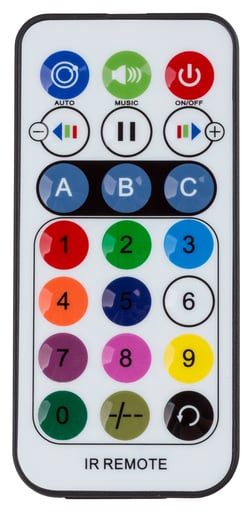

    • IR-remote: infrared remote control.
    • Master/slave: wonderful synchronized shows
  • Built-in microphone.
  • 3-digit LED display for easy menu navigation.

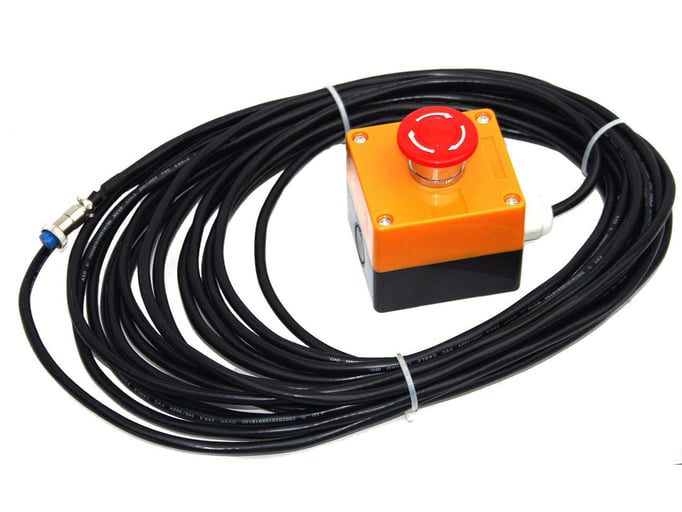

  • Key actuated on/off switch and emergency switch (interlock) input for additional safety.
  • Complies to EN/IEC 60825-1:2014 for Laser Safety.

Technical Specifications

Technical Specifications

General : Dimensions (cm) 19 x 17 x 8
General : Weight (kg) 1.5
General : Powerinput AC 100 - 240V, 50/60Hz
General : Energy Label No
General : Power consumption W 13
General : Color black
General : Display LED
General : Fixation M10
General : IP rating indoor
Control : Modes standalone sound, standalone automatic, remote, manual, DMX, Master/Slave
Control : Protocol DMX
Control : Type included remote IR Remote
Control : programmable No
Control : upgradable software No
Control : minimum DMX channels 1
Control : maximum DMX channels 17
Light : lamp socket No
Light : lamp No
Light : colors Red, Green
Light : mix colors No
Light : max. refresh rate (kHz) No

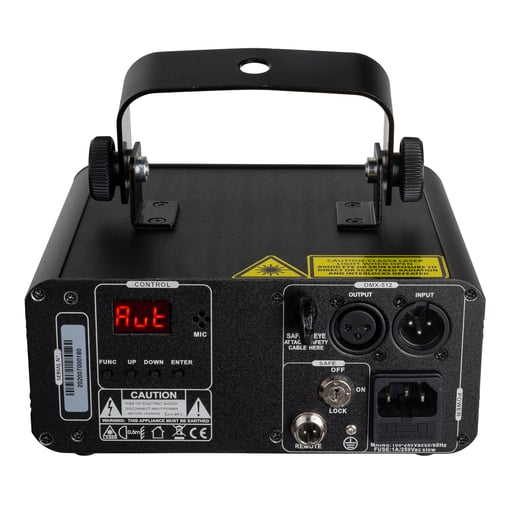

Connections : input 3 pin XLR, IEC
Connections : output 3 pin XLR
Brand JB SYSTEMS
EANCode 5420025662215

Manual & Downloads

Manual & Downloads

View FileSMOOTH SCAN-3 Mk2 LASER - Manual EN    Size: (1.41 MB) SMOOTH SCAN-3 Mk2 LASER - Operation Manual V1.1 English
View FileSMOOTH SCAN-3 Mk2 LASER - Manual NL    Size: (1.41 MB) SMOOTH SCAN-3 Mk2 LASER - Handleiding V1.1 Nederlands
View FileSMOOTH SCAN-3 Mk2 LASER - Manual FR    Size: (1.59 MB) SMOOTH SCAN-3 Mk2 LASER - Mode d'emploi V1.1 Français
View FileSMOOTH SCAN-3 Mk2 LASER - Manual DE    Size: (1.39 MB) SMOOTH SCAN-3 Mk2 LASER - Bedienungsanleitung V1.1 Deutsch
View FileSMOOTH SCAN-3 Mk2 LASER - Manual ES    Size: (1.36 MB) SMOOTH SCAN-3 Mk2 LASER - Manual de instrucciones V1.1 Español
View FileSMOOTH SCAN-3 Mk2 LASER - EC Declaration    Size: (446.95 KB) SMOOTH SCAN-3 Mk2 LASER - EC Declaration of Conformity
View FileSMOOTH_SCAN-3_M PDF leaflet Deutsch    Size: (1.45 MB) PDF_LEAFLET_SMOOTH_SCAN-3_M_B06221_de.pdf
View FileSMOOTH_SCAN-3_M PDF leaflet English    Size: (1.45 MB) PDF_LEAFLET_SMOOTH_SCAN-3_M_B06221_en.pdf
View FileSMOOTH_SCAN-3_M PDF leaflet Français    Size: (1.45 MB) PDF_LEAFLET_SMOOTH_SCAN-3_M_B06221_fr.pdf
View FileSMOOTH_SCAN-3_M PDF leaflet Nederlands    Size: (1.45 MB) PDF_LEAFLET_SMOOTH_SCAN-3_M_B06221_nl.pdf
