- This device was designed to produce decorative effect lighting and is used in light show systems:
- Sharp beams and beautiful grating effects
- 32 Pre-programmed patterns
- Fabulous preprogrammed laser shows for all kinds of applications: lounge bar, discotheque, mobile DJ, …
- Class 3B laser based on a RGB-laserdiode with 120mW Red CW (λ = 638nm), 50mW Green CW (λ = 520nm) and 300mW Blue (λ =450nm).
- Several working modes:
- DMX-control: 6, 9 or 10 channels
- Standalone: sound activated (internal mic) or automatic
- Master/slave: wonderful synchronized shows
- Built-in microphone.
- 3-digit LED display for easy menu navigation.
- Key activated blackout switch and emergency switch (interlock) input for additional safety.
- Complies to EN/IEC 60825-1:2014 for Laser Safety.
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 21.6 x 14 x 11 |
|---|---|
| General : Weight (kg) | 2.35 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 30 |
| General : Color | black |
| General : Display | LED |
| General : Fixation | M10 |
| General : IP rating | indoor |
| Control : Modes | standalone fixed, standalone sound, standalone automatic, manual, DMX, Master/Slave |
| Control : Protocol | DMX |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | 6 |
| Control : maximum DMX channels | 10 |
| Light : lamp socket | No |
| Light : lamp | No |
| Light : colors | Red, Green, Blue, RGB |
| Light : mix colors | No |
| Light : max. refresh rate (kHz) | No |

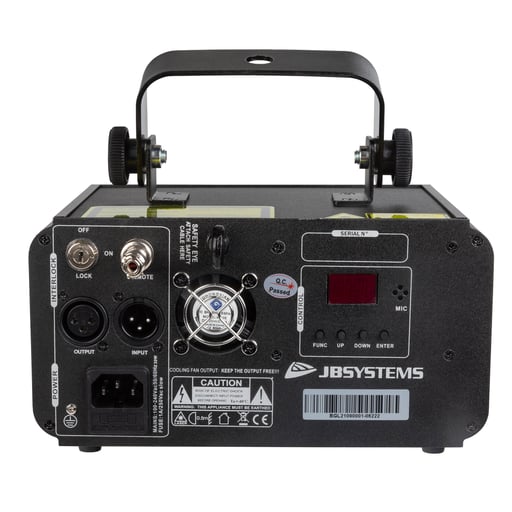

| Connections : input | 3 pin XLR, IEC |
| Connections : output | 3 pin XLR |
| Brand | JB SYSTEMS |
| EANCode | 5420025662222 |
