Details
Details

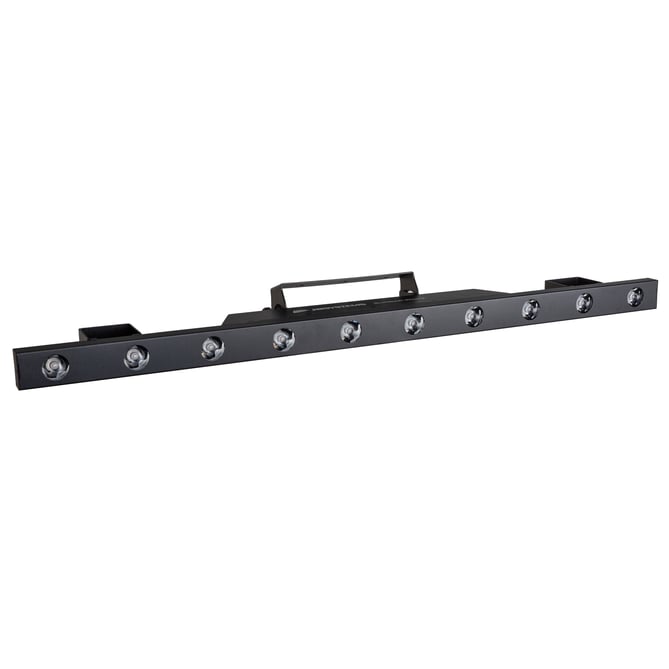

- Light bar with 10 x 3W warm white LEDs and pixel control.
- An essential effect for stage lighting and many other applications.
- DMX control via 1, 3, 5, 10 or 15 channels.
- Control each pixel manually or use one of the 17 integrated automatic programs.
- Sound activated mode with internal mic.
- Master/slave mode for bigger setups.
- Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE ! (Briteq® code: B04645).
Technical Specifications
Technical Specifications
| General : Dimensions (cm) | 100 x 17 x 5 |
|---|---|
| General : Weight (kg) | 3.4 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 36 |
| General : Color | black |
| General : Display | LED |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Modes | standalone sound, standalone automatic, manual, DMX, Master/Slave |
| Control : Protocol | DMX, Wireless DMX |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | 1 |
| Control : maximum DMX channels | 15 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | White, Warm white |
| Light : mix colors | No |
| Light : min. beam angle (°) | 7 |
| Light : max. refresh rate (kHz) | No |
| Connections : input | 3 pin XLR, wireless DMX optional, PowerCon® or compatible |
| Connections : output | 3 pin XLR, PowerCon® or compatible |
| Brand | JB SYSTEMS |
| EANCode | 5420025662062 |
Manual & Downloads
Manual & Downloads
 SUNBAR WHITE - Manual EN Size: (1.26 MB) |
SUNBAR WHITE - Manual English |
| SUNBAR WHITE - Manual FR Size: (1.35 MB) |
SUNBAR WHITE - Manual Français |
| SUNBAR WHITE - Manual NL Size: (1.3 MB) |
SUNBAR WHITE - Manual Nederlands |
| SUNBAR WHITE - Manual DE Size: (1.3 MB) |
SUNBAR WHITE - Manual Deutsch |
| SUNBAR WHITE - Manual ES Size: (1.3 MB) |
SUNBAR WHITE - Manual Español |
| SUNBAR WHITE - EC Declaration Size: (445.61 KB) |
SUNBAR WHITE - EC Declaration of Conformity |
| SUNBAR_WHITE PDF leaflet Deutsch Size: (899.76 KB) |
PDF_LEAFLET_SUNBAR_WHITE_B06206_de.pdf |
| SUNBAR_WHITE PDF leaflet English Size: (899.81 KB) |
PDF_LEAFLET_SUNBAR_WHITE_B06206_en.pdf |
| SUNBAR_WHITE PDF leaflet Français Size: (900.96 KB) |
PDF_LEAFLET_SUNBAR_WHITE_B06206_fr.pdf |
| SUNBAR_WHITE PDF leaflet Nederlands Size: (899.24 KB) |
PDF_LEAFLET_SUNBAR_WHITE_B06206_nl.pdf |
